DESCRIPTION:
With low holding and latching current, Z0607 Series triacs are especially recommended for use on middle and small resistance type power load.
MAIN FEATURES:
|
symbol |
value |
unit |
|
IT(RMS) |
0.8 |
A |
|
VDRM/VRRM |
600/800 |
V |
|
VTM |
≤1.5 |
V |
ABSOLUTE MAXIMUM RATINGS:
|
Parameter |
Symbol |
Value |
Unit |
|
|
Storage junction temperature range |
Tstg |
-40~150 |
℃ |
|
|
Operating junction temperature range |
Tj |
-40~125 |
℃ |
|
|
Repetitive peak off-state voltage (Tj=25℃) |
VDRM |
600/800 |
V |
|
|
Repetitive peak reverse voltage (Tj=25℃) |
VRRM |
600/800 |
V |
|
|
RMS on-state current |
IT(RMS) |
0.8 |
A |
|
|
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
9 |
A |
|
|
I2t value for fusing (tp=10ms) |
I2t |
0.45 |
A2s |
|
|
Critical rate of rise of on-state current (IG=2 × IGT) |
dI/dt |
Ⅰ-Ⅱ-Ⅲ |
50 |
A/ μs |
|
Ⅳ |
10 |
|||
|
Peak gate current |
IGM |
1 |
A |
|
|
Average gate power dissipation |
PG(AV) |
0.1 |
W |
|
|
Peak gate power |
PGM |
5 |
W |
|
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
|
Parameter |
Test Condition |
Quadrant |
|
Value |
Unit |
|
IGT |
VD=12V, RL=33Ω |
Ⅰ-Ⅱ-Ⅲ |
MAX |
5 |
mA |
|
Ⅳ |
7 |
|
|||
|
VGT |
Ⅰ-Ⅱ-Ⅲ-Ⅳ |
1.3 |
V |
||
|
VGD |
VD=VDRM Tj=125℃ |
Ⅰ-Ⅱ-Ⅲ-Ⅳ |
MIN |
0.2 |
V |
|
IH |
IT=100mA |
MAX |
5 |
mA |
|
|
IL |
IG=1.2IGT |
Ⅰ-Ⅲ-Ⅳ |
MAX |
10 |
mA |
|
Ⅱ |
20 |
||||
|
dV/dt |
VD=0.66×VDRM Tj=125℃ Gate open |
MIN |
10 |
V/ µs |
|
THERMAL RESISTANCES
| Symbol | Test Condition | Value | Unit | |
| TO-92 | 75 | |||
| SOT-223/SOT-23-2L | 45 | |||
| Rth(j-c) | junction to case(AC) | SOT-89-2L | 60 | ℃/W |

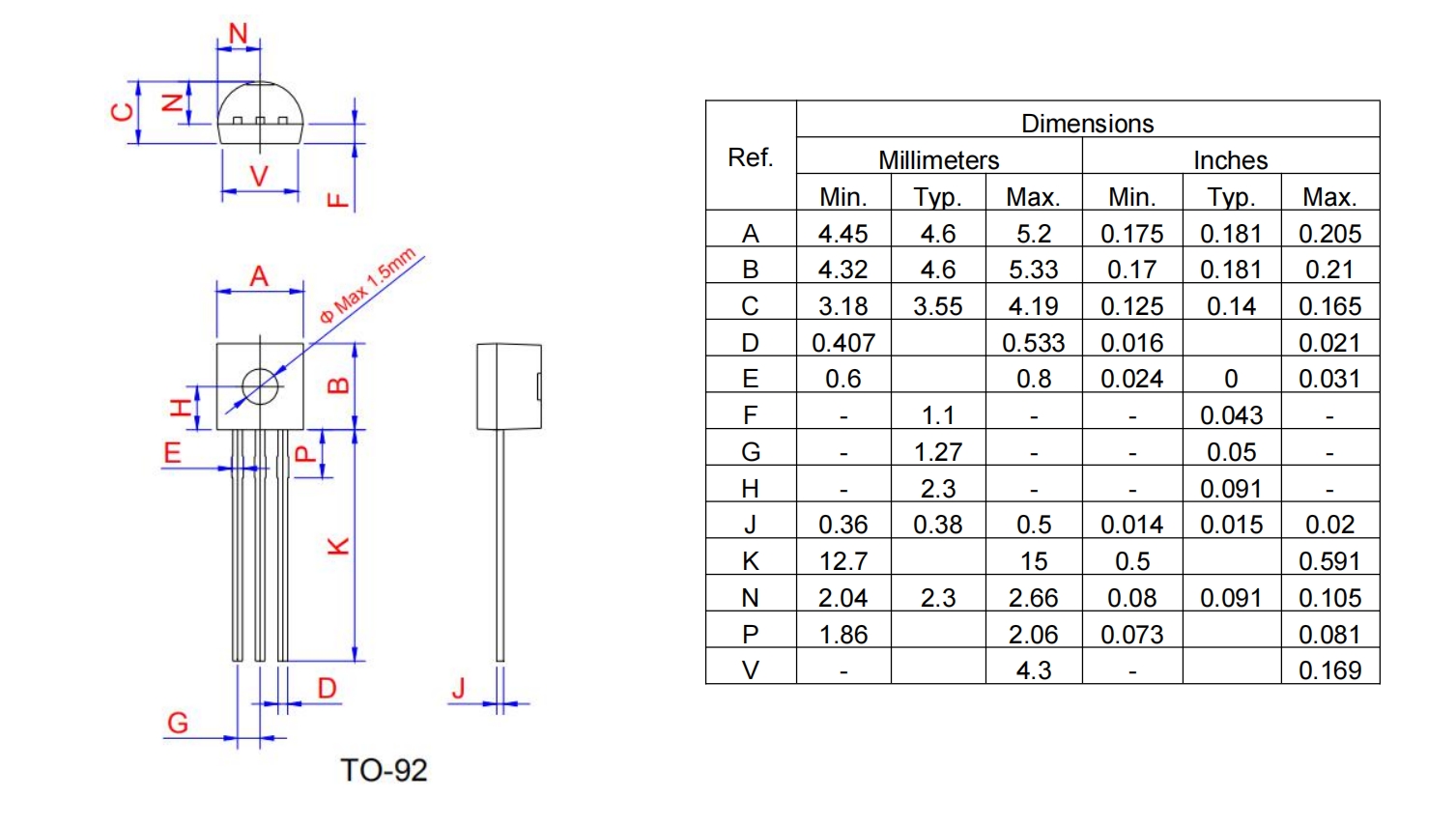

PACKAGE MECHANICAL DATA
