GYFTA fiber optic cable

5 month ago

7 0 

Guangzhou Jiqian Fiber Optic Cable Co.,ltd

9 month

Product details

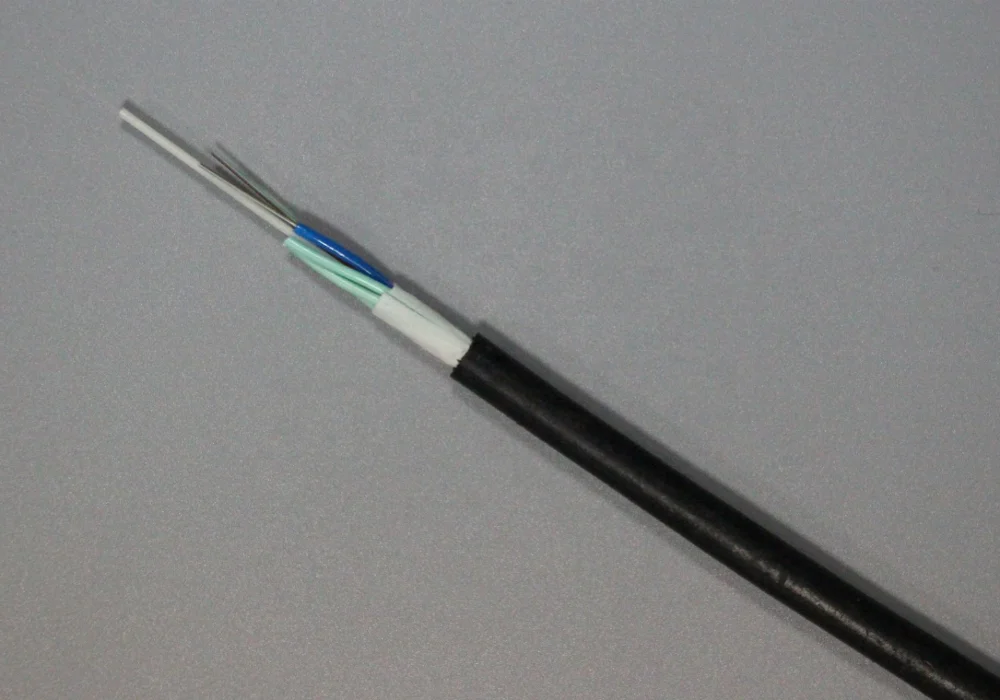

Outdoor FRP Aerial Fiber Optic Cable

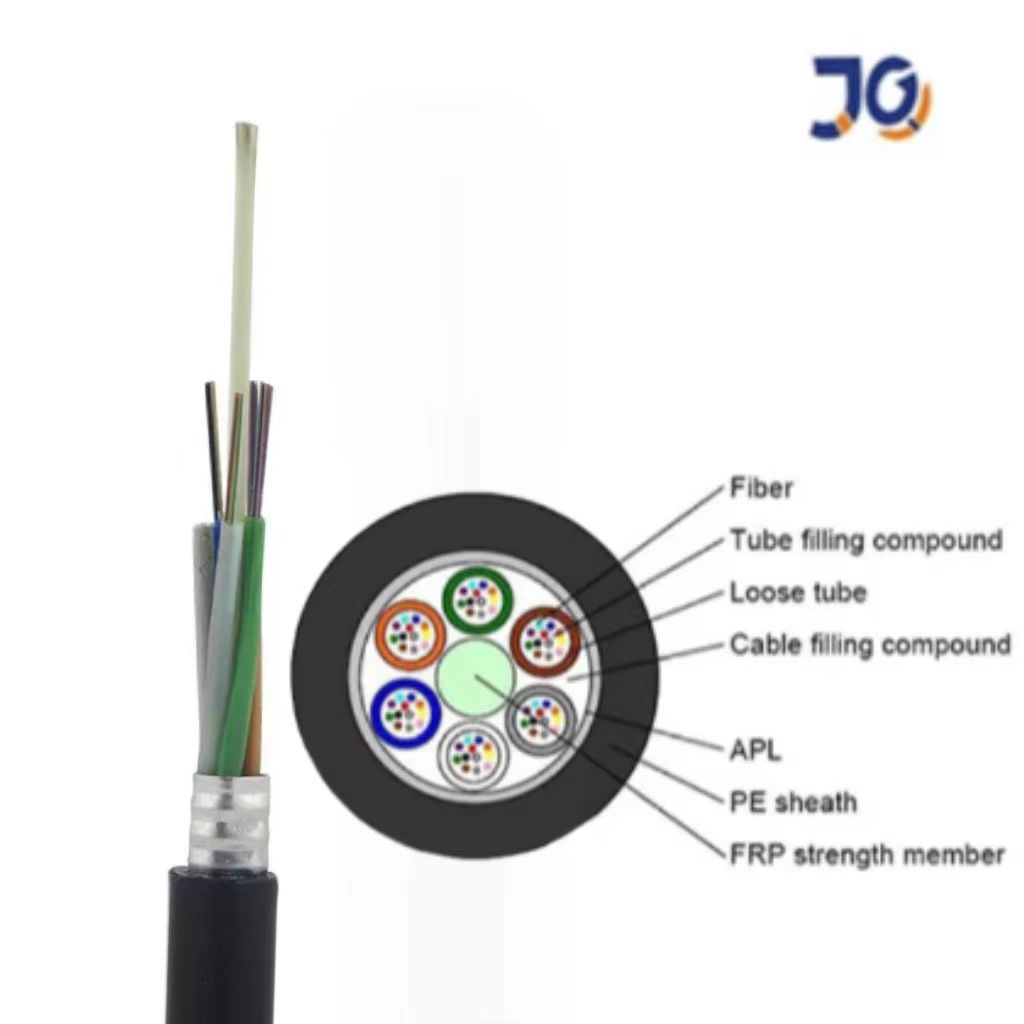

GYFTY fiber optic wire is a non-metallic cable used in power transmission systems and high electromagnetic interfaces. It’s a loose tube perfect fiber optic cable for lighting protection effects with all-dielectric materials. It is made of high-modulus plastic materials, while the loose tubes strand together around the non-metallic central strength member (FRP) into a compact and circular cable core.

loose tube fiber optic cable The water-blocking materials are distributed into the interstices of the cable core.Our GYFTY Fiber Optic Cable is putting 4 288 fiber Optic into loose tubes and with singlemode or mulitimode for options.

Order quantity(km)	1-100	≥100
Earliest time(day)	7	Negotiable
Fiber Parameter
Item		Unit	Specification
Fiber Type			G.652D
	1310nm	μm	9.2±0.4
Mode field diameter	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Our standard packaging includes 2km, 3km, or 4km cables in a wooden drum, customizable to your needs. We offer flexible transportation options, including LCL/FCL shipments via sea or by road/train.
