Aluminum Cans Baler
5 month ago
Product details

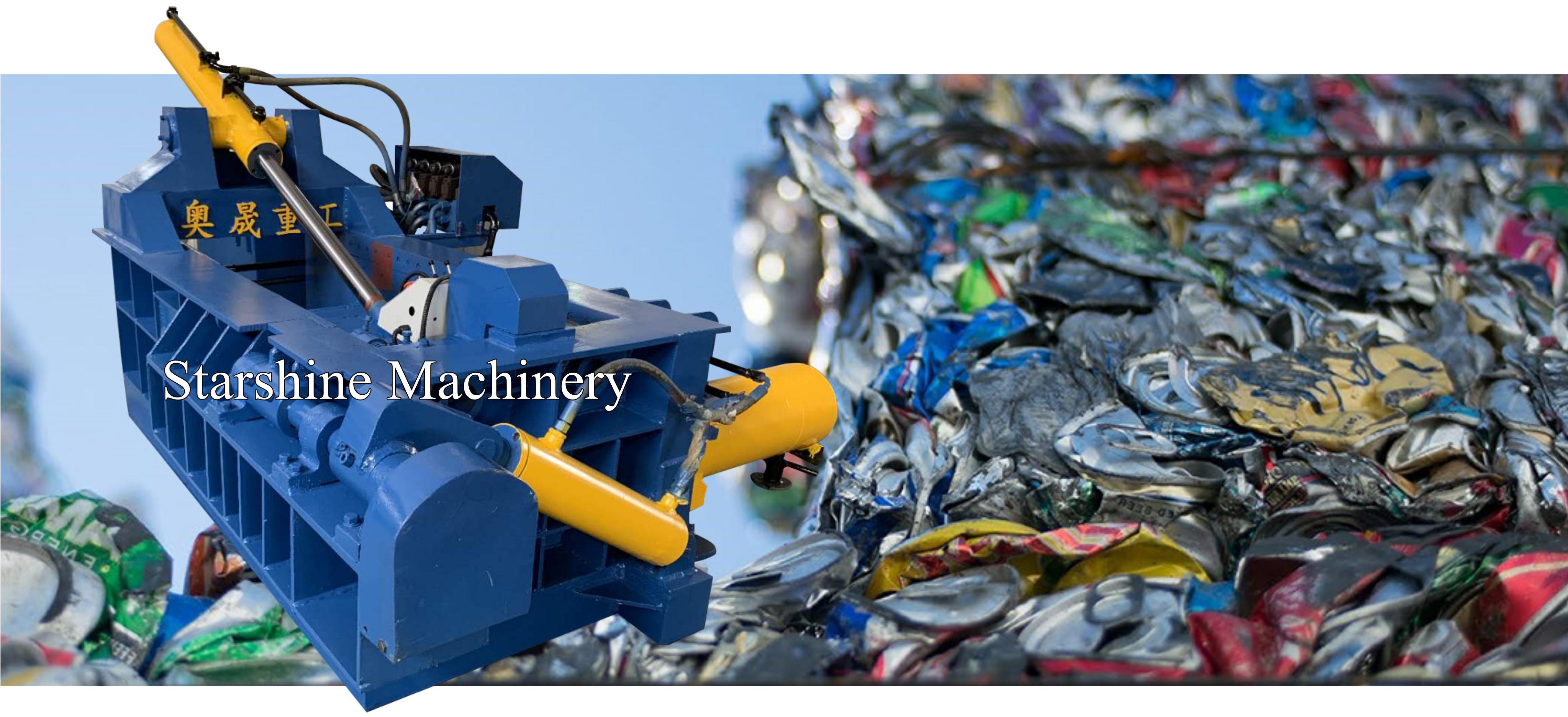

Hydraulic Baler For Aluminum Cans Press
Working Principle：
1. Hydraulic drive system: The hydraulic metal waste aluminum can baler uses the hydraulic system as its core power source. The motor drives the hydraulic pump to suck the hydraulic oil out of the oil tank and pressurize it, and then delivers it to the hydraulic cylinder through a series of hydraulic pipelines. Inside the hydraulic cylinder, the high-pressure hydraulic oil pushes the piston, converts the hydraulic energy into mechanical energy, and drives the pressing plate connected to the piston to generate strong pressure.
2. Compression and baling process: After the waste aluminum cans are placed in the baling chamber, the operator starts the equipment, and the hydraulic system pushes the pressing plate downward to squeeze the waste aluminum cans. As the pressing plate continues to press down, the waste aluminum cans gradually deform under high pressure and their volume is greatly reduced. When the preset compression degree or pressure value is reached, the hydraulic system stops working and maintains the current pressure. Then the strapping device starts, and the compressed waste aluminum cans are strapped and fixed with steel or plastic belts to complete the baling process.Aluminum Can Baler
Structural Composition：
1. Frame: It is welded with high-strength steel and is the support frame of the entire equipment. It must have sufficient strength and stability to withstand the huge pressure generated during the packaging process. The frame usually includes a base, columns, beams and other parts, which are connected by bolts or welded.Press BaAluminum Baler For Saleler
2. Hydraulic system: In addition to the hydraulic pump and hydraulic cylinder mentioned above, it also includes components such as oil tank, hydraulic valve, and oil pipe. The oil tank is used to store hydraulic oil; the hydraulic valve is responsible for controlling the flow direction, pressure and flow of hydraulic oil to achieve precise control of the action of the hydraulic cylinder; the oil pipe connects various hydraulic components to ensure smooth transmission of hydraulic oil.Aluminum Baler For Sale
3. Compression device: It is mainly composed of a pressure plate and a packaging chamber. The pressure plate moves up and down under the drive of the hydraulic cylinder and directly applies pressure to the waste aluminum cans; the packaging chamber is the space for placing waste aluminum cans, and its inner wall is smooth, which can reduce the friction between the waste aluminum cans and the cavity wall, and at the same time ensure that the waste aluminum cans are evenly stressed during the compression process.
4. Strapping device: There are two common types of steel strapping machines and plastic strapping machines. Taking steel strapping as an example, the device includes a steel strap reel, a strap feeding mechanism, a tensioning mechanism, a snap mechanism, etc. During the packaging process, the strap feeding mechanism pulls the steel strap from the steel strap reel and wraps around the compressed waste aluminum can bale. Then the tensioning mechanism tightens the steel strap, and finally the snap mechanism connects and fixes the two ends of the steel strap to form a firm strap.Aluminum Scrap Baler
5. Control system: generally composed of an operation panel, a PLC (programmable logic controller), etc. The operator inputs instructions through buttons and knobs on the operation panel, and the PLC receives and processes these signals, controls the coordinated work of the hydraulic system, the compression device, and the strapping device according to the preset program, and realizes the automatic operation of the equipment. At the same time, the control system also has fault diagnosis and alarm functions. When the equipment is abnormal, it can issue an alarm and display fault information in time, which is convenient for maintenance personnel to quickly troubleshoot the problem.Hydraulic Press
Application Scenarios:
1. Scrap recycling station: The number of waste aluminum cans collected daily at the waste recycling station is large but relatively scattered. The hydraulic metal waste aluminum can baler can compress and pack these scattered waste aluminum cans in time, which is convenient for storage and regular transportation to large recycling plants, and improves the operating efficiency of the recycling station.Metal Recycling Baler
2. Scrap metal recycling plant: As one of the important equipment of the recycling plant, it is used to pre-process a large number of waste aluminum cans purchased. After packaging, the waste aluminum cans can be put into production more efficiently in the subsequent smelting, purification and other processes, and improve the production capacity of the entire recycling process.Metal Baler
3. Internal recycling of large enterprises: Some beverage production companies, aluminum product processing plants, etc., will produce a large amount of waste aluminum scraps or scrapped products during the production process. The use of hydraulic metal waste aluminum can balers can timely pack and recycle these waste materials, realize the recycling of internal resources of the enterprise, and reduce production costs.
| Model | Container size(mm) | Bale size(mm) | Motor power(kw) |
| Y81-1250 | 1200*700*600 | 250*250 | 15/22 |
| Y81-1600 | 1600*1000*800 | 350*350 | 22 |
| Y81-2000 | 1800*1200*1000 | 400*400 | 30 |
| Y81-2500 | 2500*2000*1000 | 500*500 | 22*2 |
| Y81-5000 | 3000*2500*1300 | 700*700 | 45*3 |
| Y81-8000 | 3000*2500*1300 | 700*700 | 45*4 |
| Y81-10000 | 3500*2500*1300 | 700*700 | 45*5 |
