Drainage main
4 month ago
Structural composition: mainly composed of valve body, valve shaft, valve plate, crank mechanism, electric push rod (electro-hydraulic push rod, pneumatic push rod or manual mechanism), etc.
Product features: small size, light weight, good wear resistance, long service life, low resistance, it is driven by electric push rod, electro-hydraulic push rod, pneumatic push rod, can quickly switch the material flow direction, and is an ideal equipment for controlling the rapid reversal of materials in material conveying systems.
Scope of application: widely used in the transportation of solid particles and powdered materials in building materials, metallurgy, mining, light industry, grain and other industries.
Structure and principle: including valve body, valve core assembly and electric cylinder drive structure, and multiple valve connection ports are provided at the front end of the valve body. The valve core assembly is composed of a valve shaft and a valve core. The valve core is divided into four diversion channels, which are cleverly diverted through horizontal and vertical partitions, and rotated through the electric cylinder drive structure, thereby effectively changing the flow direction of the fluid.
Performance advantages: Improves the accuracy of fluid control, greatly simplifies the operation process, effectively reduces the possibility of human operation errors, and greatly improves safety and reliability.
Application scenarios: Can be widely used in water treatment, automated factories and various liquid transportation systems
If you need, please contact us.

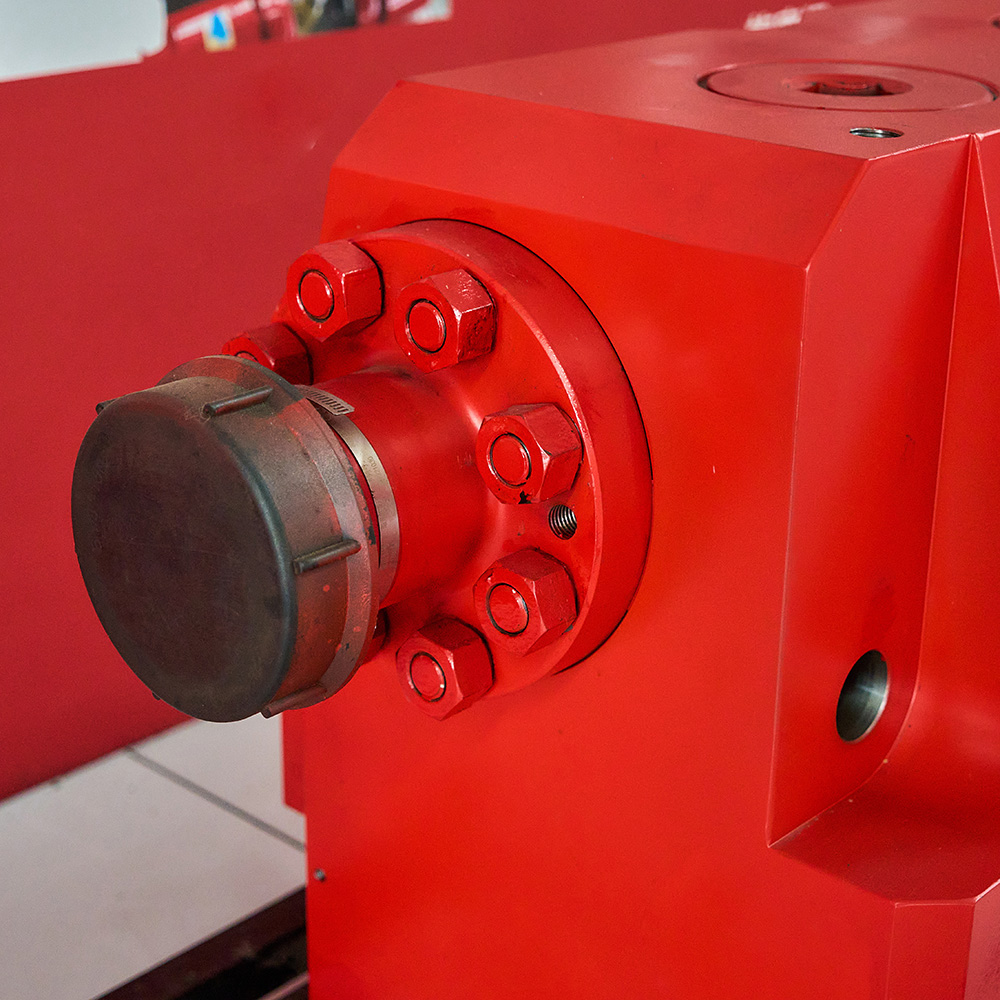

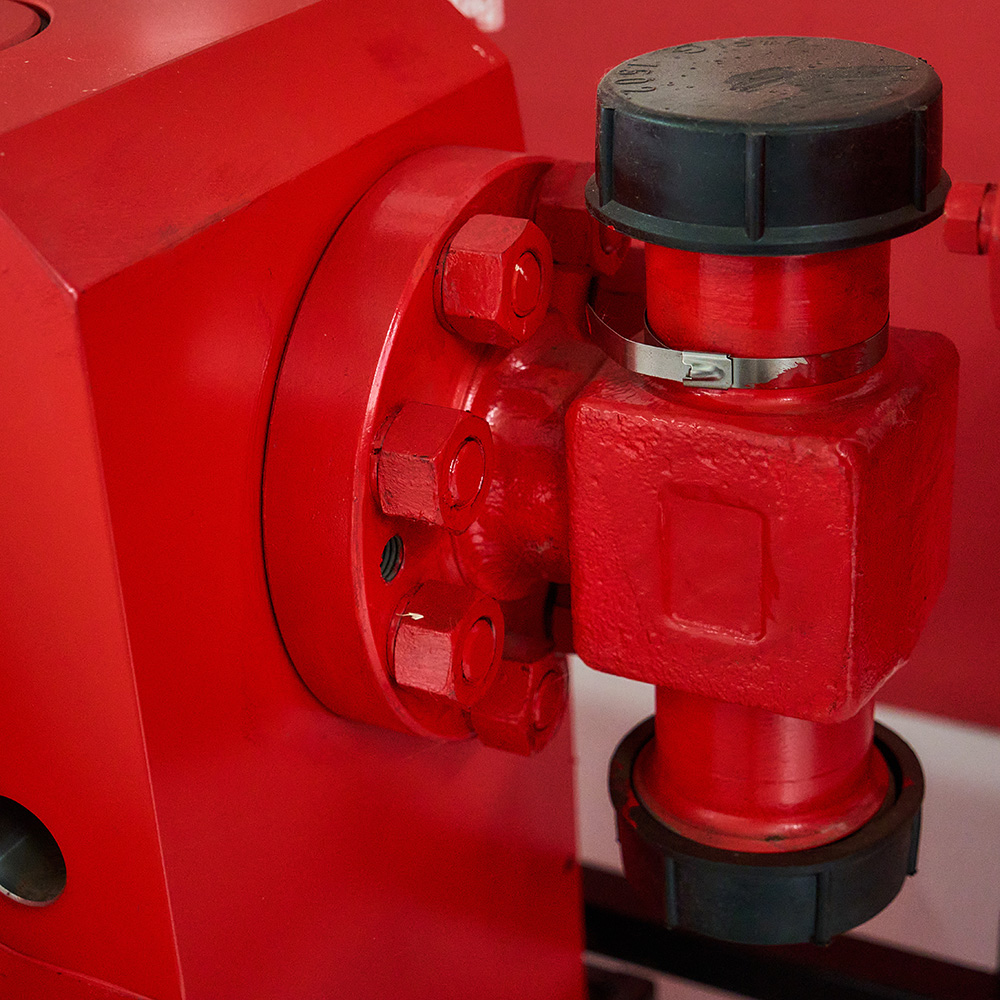

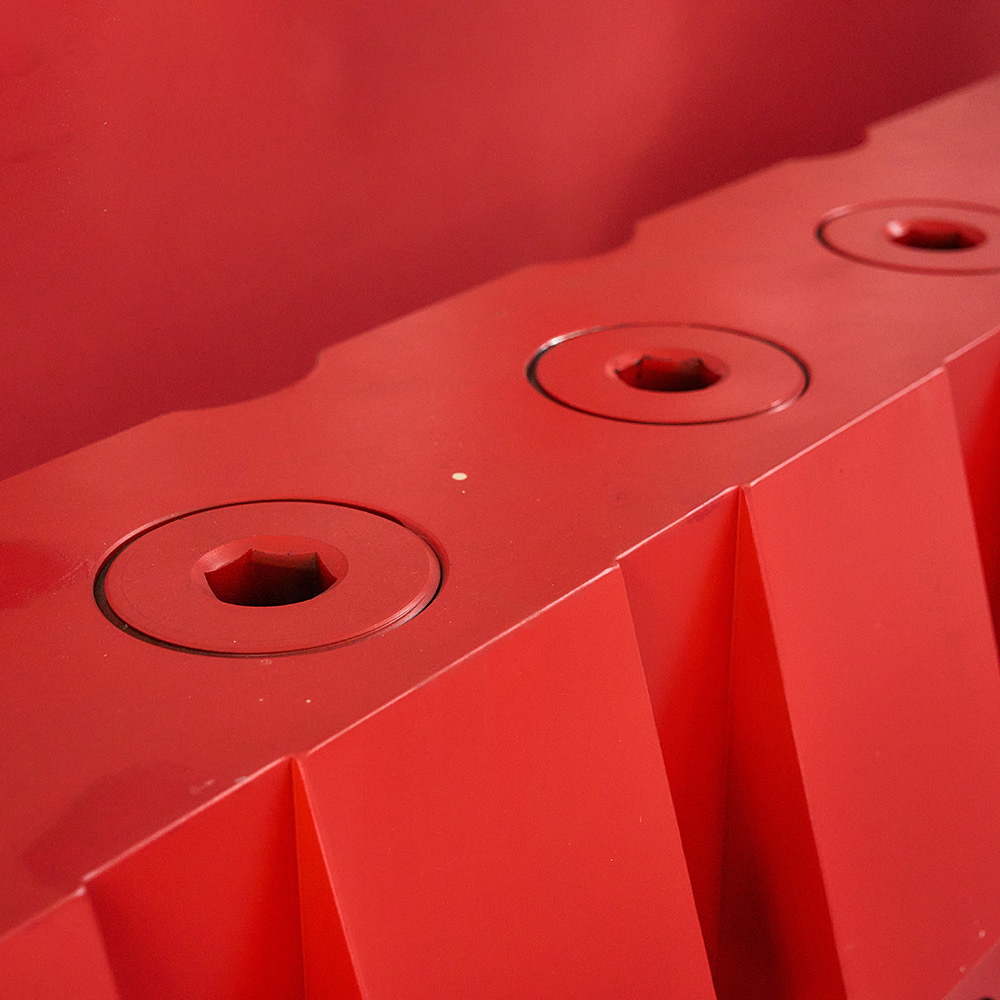

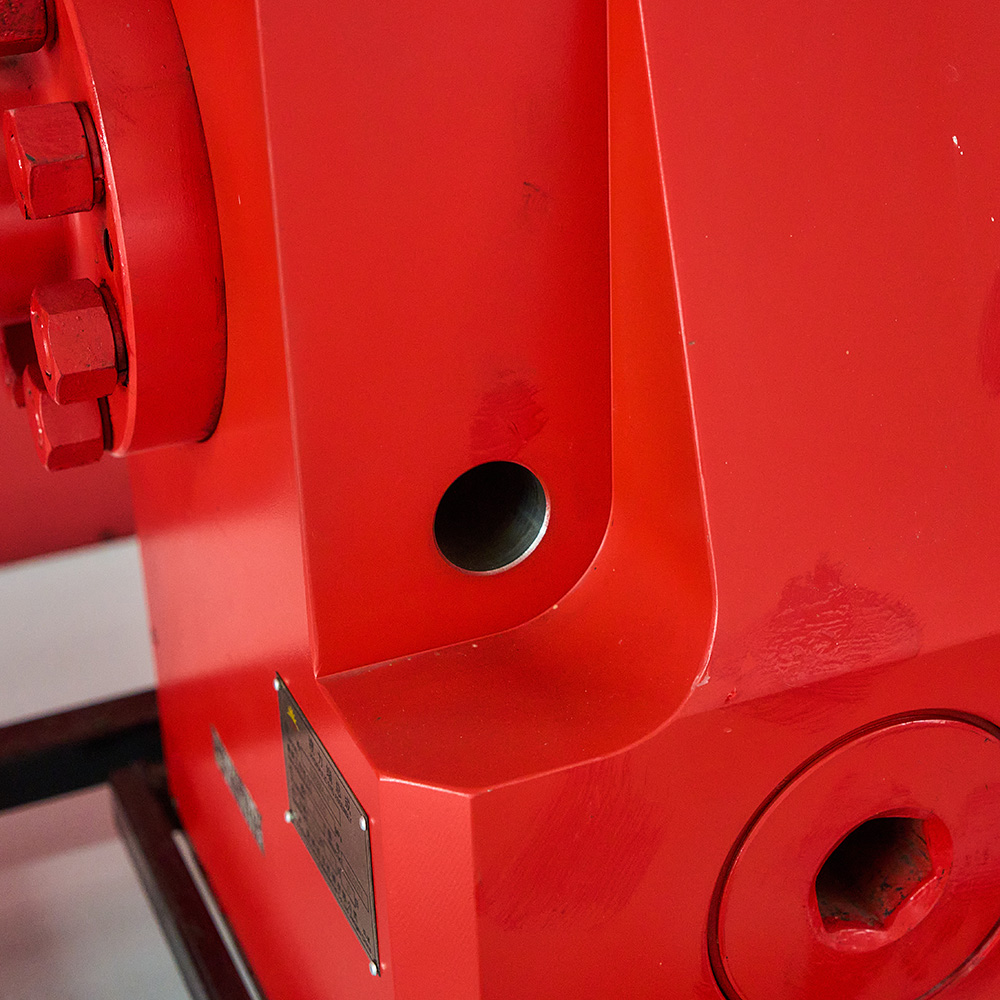

| Product name | Drain body |
| Specification model | 7 1/16 |
| Implementation standard | API 6A |
| Rated working pressure | 15000psi |
| Product specification level | PSL1~PSL3G |
| Product performance level | PR1~PR2 |
| Temperature level | PU, LU |
| Material level | AA~FF |
| Product color | red |
