X38 Single LAN DDR3L Dual HD Display Mini PC
4 month ago
Product details
Its compact size is truly remarkable, measuring approximately 132MM * 132MM * 22MM. This makes it unbelievably portable, slipping effortlessly into your bag or pocket. Despite weighing only about 0.5KG, it packs a serious punch. Paired with the previously mentioned Intel Pentium 2117U 2 Cores 2 Threads Processor, it can handle a lots of tasks easy.
In addition to the convenient 1*half-height mini-PCIe Slot that supports a WiFi module for seamless wireless connectivity, this mini computer also comes with support for VESA, Wall Mount, and Desktop Mount installations. For those who value a clutter-free workspace, the VESA mount option allows you to attach the mini computer discreetly to the back of a monitor or any VESA-compatible display. And when you do have the desk space and want a more traditional setup, the Desktop Mount option provides stability and easy access. You can position it at the optimal angle for typing, viewing, and interacting with the device.
Intel Pentium 2117U Mini Computer Details:
CUP: Intel Pentium 2117U 2 Cores 2 Threads Processor, 1.80 GHz Processor Base Frequency, 2MB Cache, 17W TDP
GPU: Intel® HD Graphics for 3rd Generation Intel® Processors
Hard Disk: 1*full height size mSATA SSD
Memory: 1*SODIMM DDR3L, 1333/1600MHz, Max up to 8GB
Ethernet: 1*Realtek 8111F LAN (10/100/1000/ Mbps), Support wake-up on LAN.
Display: 1*VGA (1920×1080@60Hz); 1*HDMI (3200×2000@60Hz); Support synchronous asynchronous display
Audio: Adopt Realtek ALC662 Audio Control Chip, Support Dual-channel, Stereo, Line out

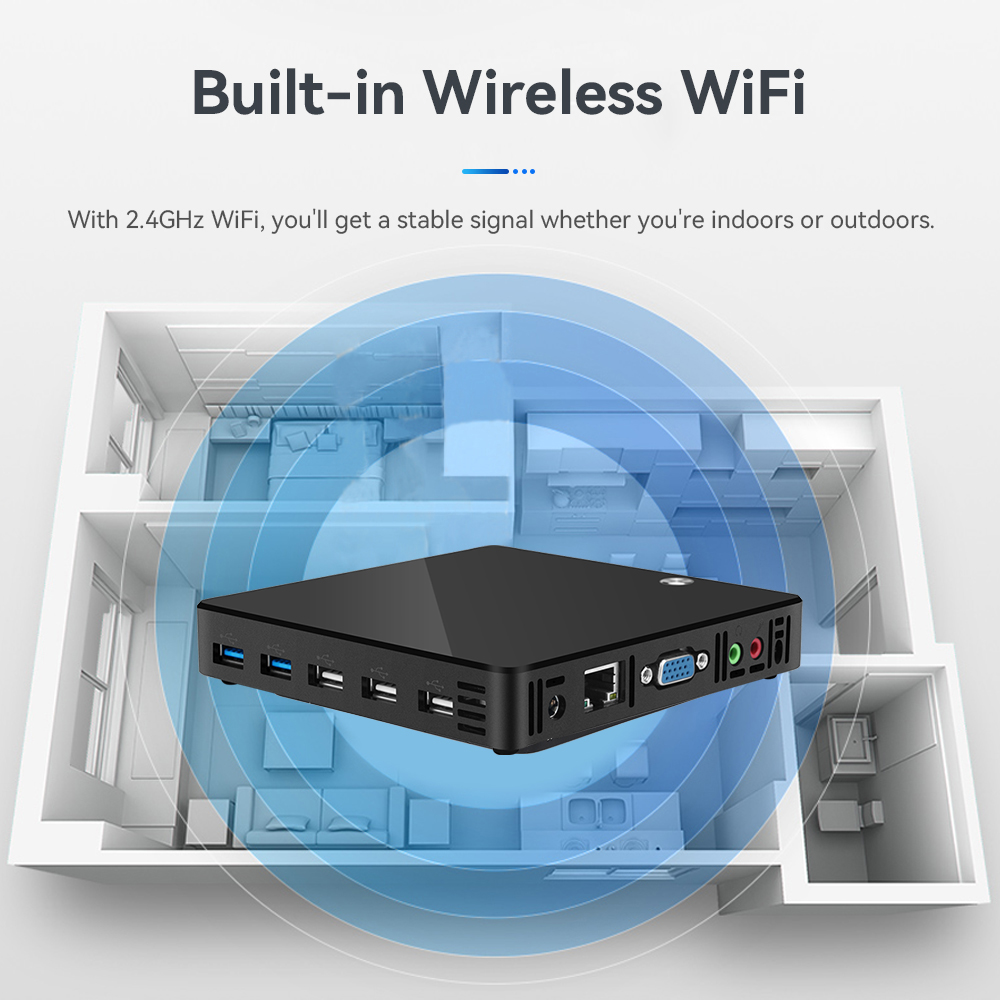

Expansion: 1*half-height mini-PCIe Slot, support WiFi module
Operating System: Windows 7,Windows 8, Windows 10, Ubuntu, Linux, CentOS, etc.
Power: 1*DC-IN5.5*2.5, 12V 3A/36W(AC TO DC,100~240V)
I/O Interface: 2*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA, 1*MIC, 1*SPK, 1*Gigabit Ethernet, 1*DC, 1*Power Switch
Size: 132MM * 132MM * 22MM
Weight: 0.5KG
Material: Aluminum Alloy
Installation: VESA/ Wall Mount/ Desktop Mount
Colour: Black
Working Environment: Operating Temperature -20℃-65℃, Storage Temperature 15℃-35℃, Relative Humidity 5%~95% (non-condensing)
It is powered by an Intel Pentium 2117U processor with 2 cores and 2 threads. 2MB of cache further accelerates data access to ensure smooth and lag-free operation. Its TDP (total power consumption) is only 17W, which is a low power consumption and can effectively save energy.
Equipped with 1*SODIMM DDR3L, it supports speeds of 1333/1600MHz, allowing for fast data transfer. The 1*full height size mSATA SSD hard disk takes center stage, offering blazing-fast read and write speeds compared to traditional hard drives. This means quicker boot times, faster file access, and seamless application launches.
It's equipped with a 1*Realtek 8111F LAN port, which supports a high speed range of 10/100/1000 Mbps.
What's more, it comes with the convenient feature of Support wake-up on LAN. With this functionality, you can send a signal over the network to power it up from standby mode, even when you're not physically present. This added layer of control and accessibility not only saves you time but also streamlines your workflow, making your mini computer an even more indispensable tool in your digital arsenal.
This mini pc offers extensive operating system compatibility. It supports a wide range of operating systems including Windows 7, Windows 8, Windows 10, Ubuntu, Linux, and CentOS, etc. This means you can choose the OS that best suits your workflow and preferences. It's perfect for digital signage, home automation control centers, or simply as an out-of-the-way workstation.
