Inline Filter SDRFL ON 851 DQ 10B 1.0

--cast version

--up to 1300 L/min

--up to 25/40 bar

1.Technical Specification

1.1 Filter Housing

Construction

Inline filter is designed according to international regulations. It consists of a two-piece filter housing with a bolt-on cover plate. Inlet and outlet positioned at the same side or opposite side.

1.2 Filter Element

Filter elements are validated according to ISO test standard, with the following pressure stability values:

BN/HC: 20 bar    P/HC: 10 bar

V: 210 bar       Wire mesh (W/HC): 20 bar

Compatibility

It can be used for mineral oils, lubrication oils, non-flame fluids, synthetic and rapidly biodegradable fluids. For water or other application, please contact us.

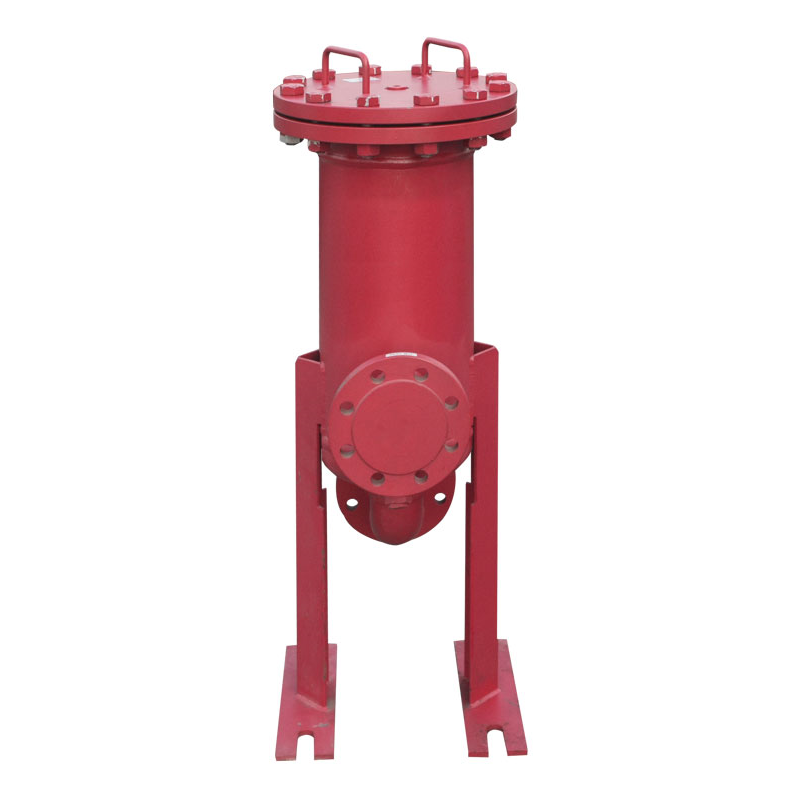

--welded version

--carbon steel, stainless steel

--up to 15000 L/min

--up to 16 bar

1.Technical Specification

1.1 Filter Housing

Construction

Inline filter consists of a two-piece filter housing with a bolt-on cover plate. Inlet and outlet positioned at the opposite side and different position. Connections for venting and draining and clogging indicator are all standard size. Filter elements of size1320, 2520, ...15020 is twice times higher than size1300,2500...15000.

So, the dirt holding capacity and flow has increased greatly.

1.2 Filter Element

Filter elements are available with the following pressure stability values:

BN/HC: 20 bar  P/HC: 10 bar  Wire mesh(W/HC): 20 bar  V: 210 bar

2.General

Mounting: filter housing must be flexibly mounted and not fixed rigidly to the floor or used as a pipe support.

Temperature range: -10℃~100℃℃

Pressure setting of clogging indicator

ΔPa=2 bar-0.2 bar

Bypass cracking pressure

ΔPo=3 bar+0.5 bar

1 bar or 6 bar is available
