YZPST-SQL100A-1600V

4 month ago

9 0 

YANGZHOU POSITIONING TECH CO., LTD.

7 year

Product details

YZPST-SQL100A

Silicon/Glass Passivated

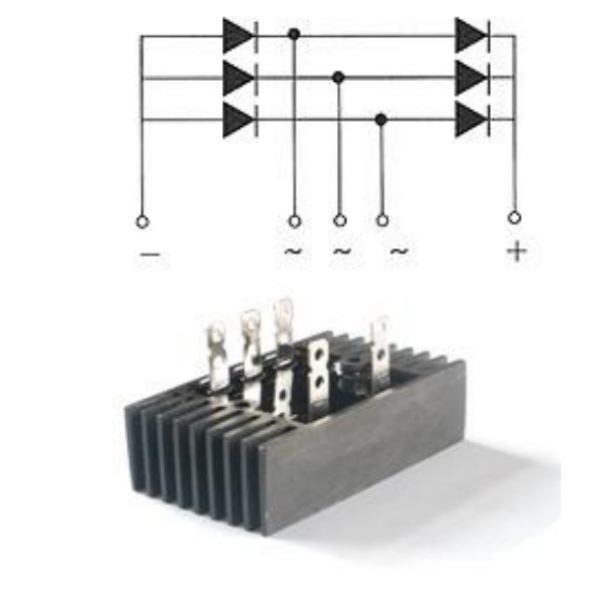

Three Phase Bridg Rectifiers

Features

Ideal for printed circuit board

Reliable low cost construction technique results in inexpensive product

High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm )

lead length at 5 lbs.,( 66677376, 2.3 kg ) tension

Mechanical Data

Case: Molded plastic

Lead: solder plated

Polarity: As marked

RATING		SQL	SQL	SQL	SQL	SQL	SQL	SQL
	Symbol								UNIT
		100A-02	100A-04	100A-06	100A-08	100A-10	100A-12	100A-16
	VRRM	200	400	600	800	1000	1200	1600	V
Maximum reecurrent peak reverse voltage	VRRM	200	400	600	800	1000	1200	1600	V
Maximum rms lnput voltage	VRMS	140	280	420	560	700	840	1120	V
Maximum dc blocking voltage	VDC	200	400	600	800	1000	1200	1600	V
Tc=55℃	ID	100							A
Maximum average forward output rectifled	ID	100							A
Peak forward surge current 8.3ms single half sine-wave	IFSM	1000							A
IF =33A	VF	1.1							V
Maximum forward voltage	VF	1.1							V
Ta =25℃ Ta =100℃	IR	10							μA
Maximum reverse voltage		10							μA
	IR(H)	200							μA
Thermal resistance junction to shell	RθJC	0.3							°C/W
Thermal resistance shell to environment	RθJA	0.5							°C
Operating temperature range	TJ	-40～+125							°C
storage temperature range	TSTG	-40～+150							°C

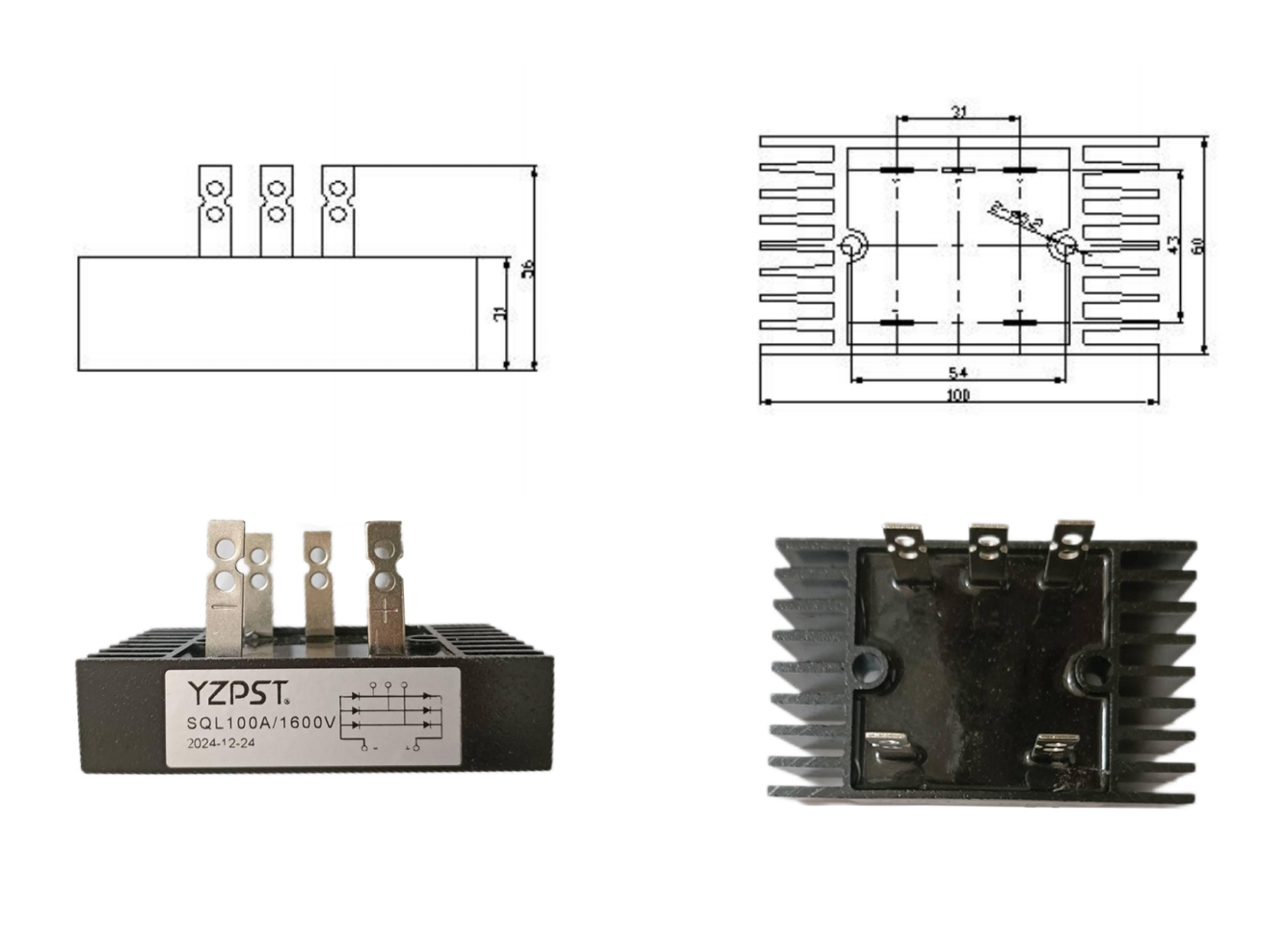

Dimensions in Millimeters
