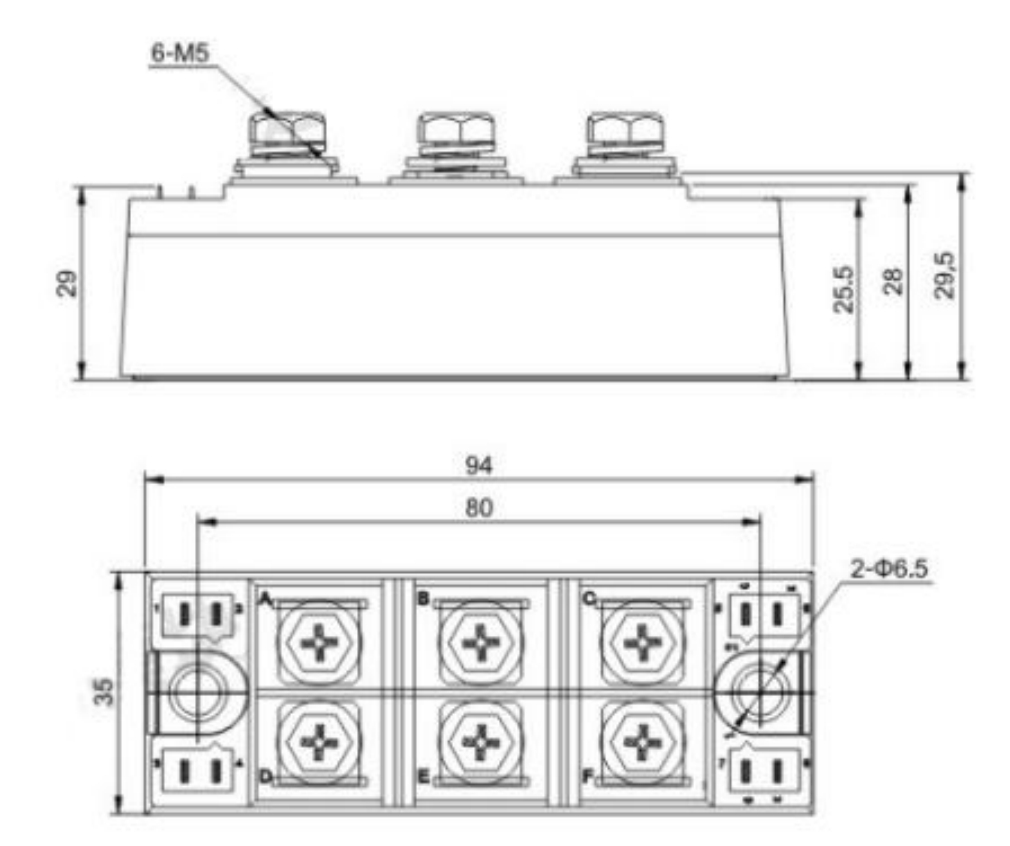

YZPST-130MT160K

Symbol

Parameter

Test Conditions

Values

Unit

VRRM

Maximum Repetitive Reverse Voltage

1600

V

VRSM

Maximum Non-Repetitive Reverse Voltage

1700

V

ID

Average Forward Current

TC=85(62)°C

130(160)

A

IFSM

Non-Repetitive        Surge

Forward Current

50Hz/60Hz

1130/1180

A

I2t

I2t (For Fusing)

50Hz/60Hz

6400/5800

A2s

VF(TO)1

Low level value of   threshold voltage

16.7%* π*IF(AV) < I <   π *IF(AV),TCJ= 150°C

0.78

V

VF(TO)2

High level value of   threshold voltage

I >  π*IF(AV),TCJ=150°C

0.99

V

rf1

Low level value of forward slope resistance

16.7%* π*IF(AV) < I <   π *IF(AV),TCJ= 150°C

4.59

m Ω

rf2

High level value of forward slope resistance

I >  π*IF(AV),TCJ=150°C

4.17

m Ω

VISO

Isolation Voltage @AC1s

50Hz

3000

V

TJ

Junction Temperature

-40 to +150

°C

TSTG

Storage Temperature Range

-40 to +150

°C

Md

To heatsink (M6)

4~6

N·m

To terminals (M5)

3~4

N·m

RθJC

Maximum thermal resistance, Junction to case

DC operation per module

0.16

°C/W

DC operation per junction

0.93

120 。rect. Per module

0.18

120 。rect. Per junction

1.08

Rθcs

Case to heatsink

Per module

0.03
