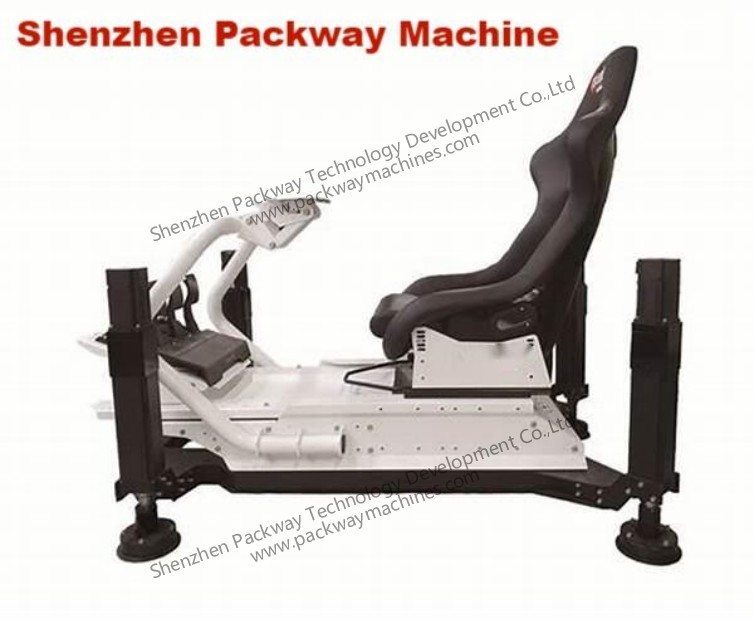

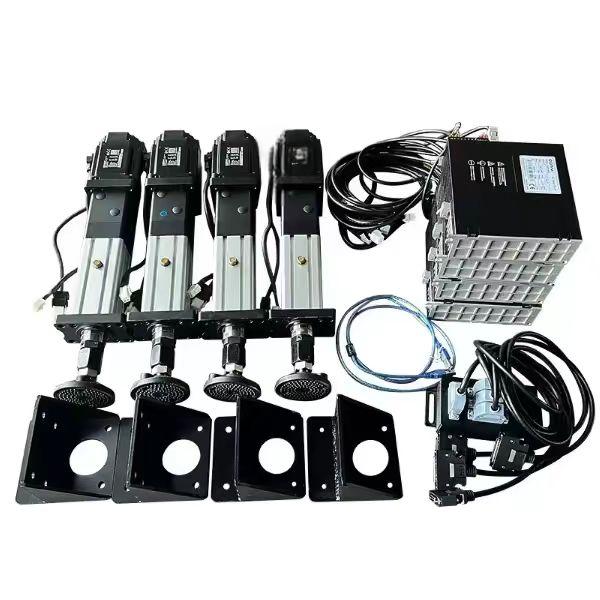

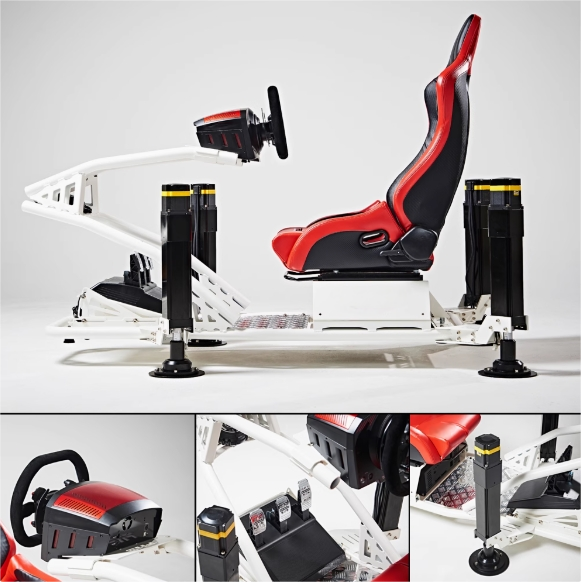

Linear Actuator for Car Driving Simulator Motion Platform: Overview

1. Introduction

The Linear Actuator for Car Driving Simulator Motion Platforms is a precision-engineered motion control device designed to deliver realistic, high-speed movement for vehicle simulation systems. This actuator provides smooth and responsive motion, replicating acceleration, braking, road surface textures, and vehicle dynamics with high accuracy. Utilizing servo-driven technology, it ensures real-time force feedback, making it a crucial component in training simulators, professional racing setups, and VR-based driving experiences.

2. Key Features & Benefits

• Dynamic & Realistic Motion Simulation

  • Capable of replicating vehicle pitch, roll, yaw, and heave movements for an immersive driving experience.
  • Delivers high-speed response with precise positional accuracy, allowing for true-to-life road feel and G-force effects.

• Servo-Controlled Precision & Responsiveness

  • Integrated servo motor technology ensures low-latency motion adjustments, enhancing realism and reducing motion lag.
  • Provides smooth transitions, ideal for replicating road irregularities, sudden braking, and cornering forces.

• Durable & Long-Lasting Performance

  • Constructed from high-strength materials, capable of sustained operation under demanding simulation conditions.
  • Offers low maintenance and extended service life, making it ideal for commercial training centers and research institutions.

• Compact & Modular Design for Easy Integration

  • Available in various stroke lengths and force ratings, allowing for customizable setups in different simulator platforms.
  • Modular compatibility with motion control software, making it adaptable to a wide range of driving simulation applications.

• Quiet & Energy-Efficient Operation

  • Compared to hydraulic or pneumatic actuators, this system operates with reduced noise and higher energy efficiency.
  • Ideal for indoor environments, such as home simulators, commercial driving centers, and esports training facilities.

3. Potential Drawbacks

• Higher Initial Cost vs. Basic Actuators

  • The servo-driven system and high-precision components make it more expensive than entry-level DC or stepper-based actuators.
  • However, the superior motion fidelity and durability often justify the investment.

• Complex Integration & Calibration

  • Requires proper motion software setup and synchronization with driving simulation platforms.
  • Fine-tuning of parameters may be necessary to achieve optimal motion profiles based on the driving simulation experience.

• Limited Suitability for Extreme Loads

  • Primarily designed for realistic motion feedback, rather than high-force industrial applications.
  • Load capacity must be matched to the simulator type and user weight requirements.

4. Application Areas

• Professional Driving Simulators

  • Used in driver training centers and automotive testing facilities to provide realistic, hands-on vehicle training.
  • Helps in simulating hazardous road conditions, allowing trainees to practice safe driving techniques in a controlled environment.

• Racing Simulation & Esports Training

  • Integrated into high-performance racing simulators to offer real-time vehicle dynamics feedback.
  • Enhances the driving experience by providing precise replication of vehicle movements on different terrains.

• VR & Entertainment-Based Motion Systems

  • Applied in VR-based driving experiences and theme park attractions to create highly immersive automotive simulations.
  • Enables users to feel the road and experience driving scenarios with lifelike motion.

• Research & Development in Vehicle Dynamics

  • Used in automotive R&D laboratories to study suspension behavior, crash simulations, and ergonomic assessments.
  • Helps engineers develop safer, more efficient vehicle designs through virtual testing.
  •

5. Conclusion

The Linear Actuator for Car Driving Simulator Motion Platforms is an essential component for high-precision driving simulations, offering realistic movement feedback, smooth servo control, and reliable performance. Designed for training, esports, R&D, and entertainment applications, it enhances driver immersion and motion accuracy in various simulation environments. While initial investment and integration complexity may be considerations, the long-term benefits of enhanced realism and durability make it a top choice for serious simulator setups.
