Simulation platforms are becoming more and more popular in many countries. To save the whole cost, now most customers choose to build the simulation platform by themself. As the most important composition part-servo electric linear actutor(electric cylinder) decides the whether the platform will run smoothly. Our company is specialised in electric linear actuators and simulation platform, we can not only provide single linear actutor, but also upper and lower platforms, as well as the technique support. Below model is mostly chosen by customers to build a simulator.

Parameters of Electric Linear Actuator DGRLT-64

Electric Linear Actuator Model	DGRLT64
Ball Screw		Screw Lead 5mm Diameter 16mm Rated Dynamic Load 1380kgf
Max. Motor Power	w	400w Servo Motor Rated Torque 1.27Nm Rated Speed 3000rpm
Reducation		1	1.5
Max. Rated Speed	mm/s	250	166
Max. Rated Thrust	KN	1.36	2.03
Max. Rated Torque	N.m	1.27	1.91
Axial Backlash	mm	Ground Ball Screw 0.025/ Rolled Ball Screw 0.08 (Default Rolled)
300mm Lead Tolerance	mm	Ground Ball Screw 0.023/ Rolled Ball Screw 0.05 (Default Rolled)
Repeatable Position Accuracy	mm	Ground Ball Screw ± 0.01/ Rolled Ball Screw ± 0.02 (Default Rolled)
Limit Switch		NPN, PNP (Both are acceptable)
Inline Type		√	×
Parallel Type		√	√

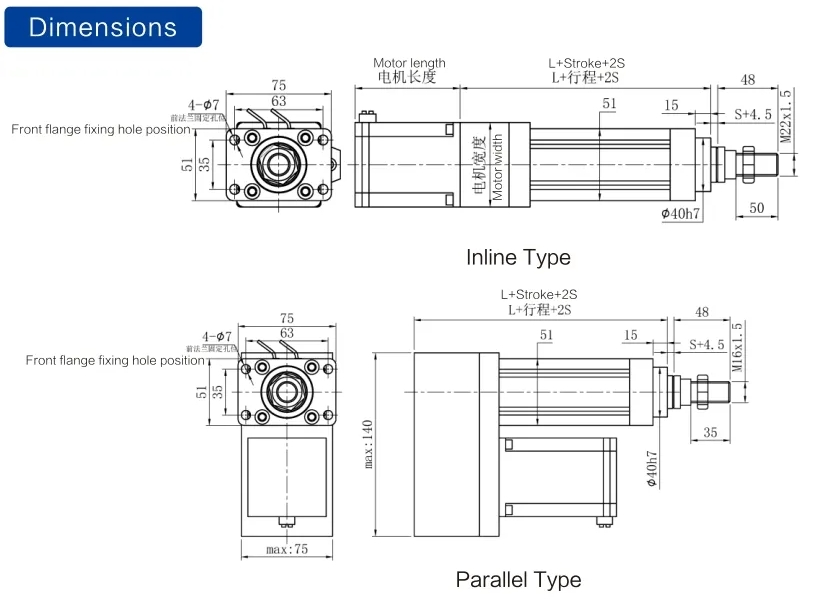

Two Types for Reference

How to Choose an Electric Linear Actuator Model

If you are familiar with electric cylinders, just choose suitable model on the product page. If you can't confirm how to choose the model, please provide following info, we will recommend appropriate model to you.
1. Thrust(kN)
2. Stroke(mm)
3. Speed(mm/s)
Otherwise, to make a quick and accurate quotation, please also confirm below info if available.
1. The mounting method of electric cylinder
A. Front flange B. Rear flange C. Side flange D.Trunnion E. Guide rod F. Rear hinge plate G. Other
2. Loading connection method
A. Outer thread B. Inner thread C. Fish eye connector D. Y type connector E. I type connector F. Floating connector G. Other
3. The mounting method of motor
A. Direct B. Parallel

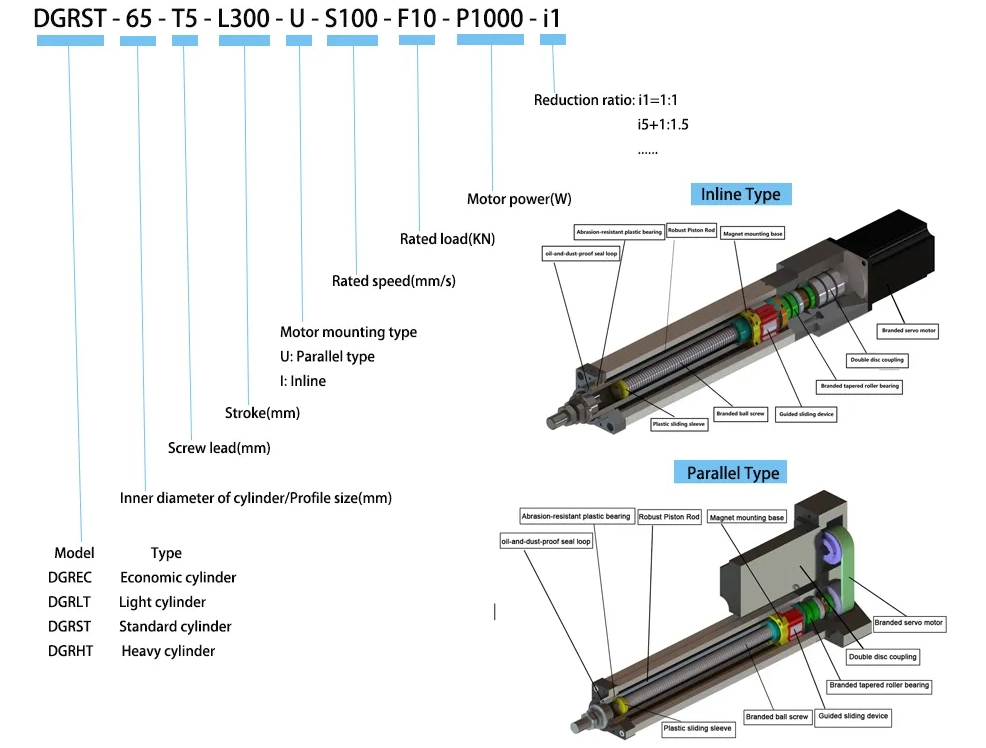

Electric Linear Actuator Model Naming Instruction

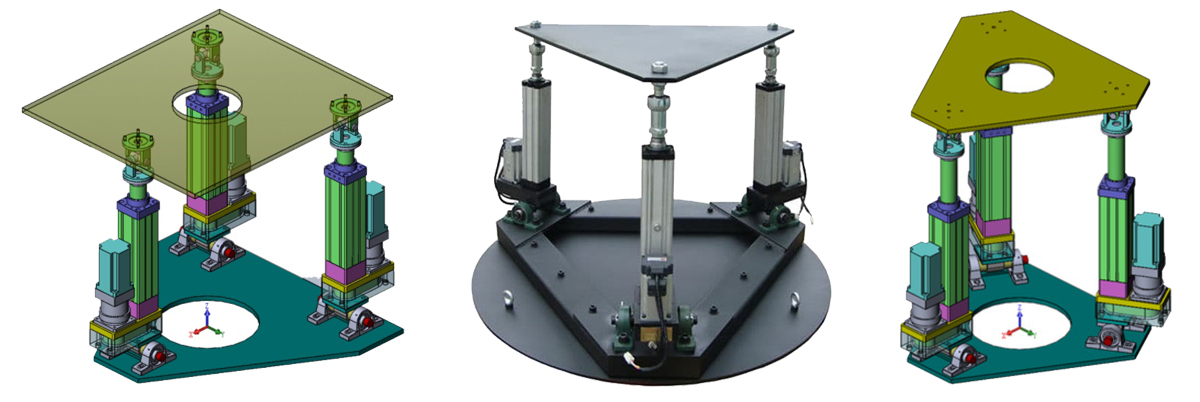

Common 3DOF Simulation Platforms(Customization is always available)
