Torlon PAI Balls & Polyamide-imide PAI Balls
2 month ago
Product details
What is Torlon?
Torlon is a high-performance polyamide resin with excellent thermal, chemical and mechanical properties. It is an engineering plastic ideally suited for use in extreme conditions and is used in a wide range of aerospace, automotive, medical and industrial applications.
Below is a detailed description of Torlon's properties, uses and manufacturing processes.
First and foremost, Torlon has excellent heat resistance. With a glass transition temperature of 310°C and a melting point of approximately 380°C, Torlon maintains stable mechanical properties at high temperatures. This makes Torlon ideal for manufacturing high-temperature components, such as engine parts, hydraulic systems and gas turbine components.
Second, Torlon has excellent chemical resistance. Its resistance to a wide range of solvents, fuels and chemicals makes it ideal for a wide range of applications in chemical, petroleum and medical equipment, and Torlon components can be stabilized over long periods of time in harsh chemical environments, ensuring equipment reliability and safety.
In addition, Torlon has excellent mechanical properties. It has a higher tensile strength and modulus than most metals, as well as excellent wear resistance and a low coefficient of friction. For this reason, Torlon is often used in bearings, gears, seals and other high-load components, where it maintains stable performance at high speeds and under high loads.
Torlon is typically manufactured using thermoplastic processes, including extrusion, injection molding and compression molding. These methods ensure the dimensional stability and surface quality of Torlon products, as well as the ability to mold complex parts. In addition, Torlon can be machined, such as turning, milling and drilling, to meet the needs of parts of different shapes and sizes.
Overall, Torlon is an excellent engineering plastic with excellent thermal, chemical and mechanical properties for engineering applications in extreme conditions. As the engineering plastics market continues to evolve, Torlon's unique advantages and value as a high-performance material will be demonstrated in many more areas.
Torlon® PAI (polyamide-imide) combines the special properties of thermoset polyimides with the advantages of melt-processable thermoplastics. Wear-resistant grades perform well in both dry and lubricated environments. High-strength grades retain their toughness, strength and stiffness at temperatures up to 525°F (275°C), making PAI one of the higher-performing thermoplastics in the industry. It also has broad chemical resistance, including strong acids and organics.
PAI exhibits higher compressive strength and impact resistance than most advanced engineering plastics. Excellent dimensional stability results from high creep resistance and a very low coefficient of linear thermal expansion (CLTE).
Torlon balls are widely used in automatic transmissions and within sailboat cable sheaves due to their excellent resistance to high pressure, salt spray, oil, abrasion, and low density.
However, because Torlon PAI is a reactive polymer, it increases its molecular weight through chain extension, branching and cross-linking when heated.

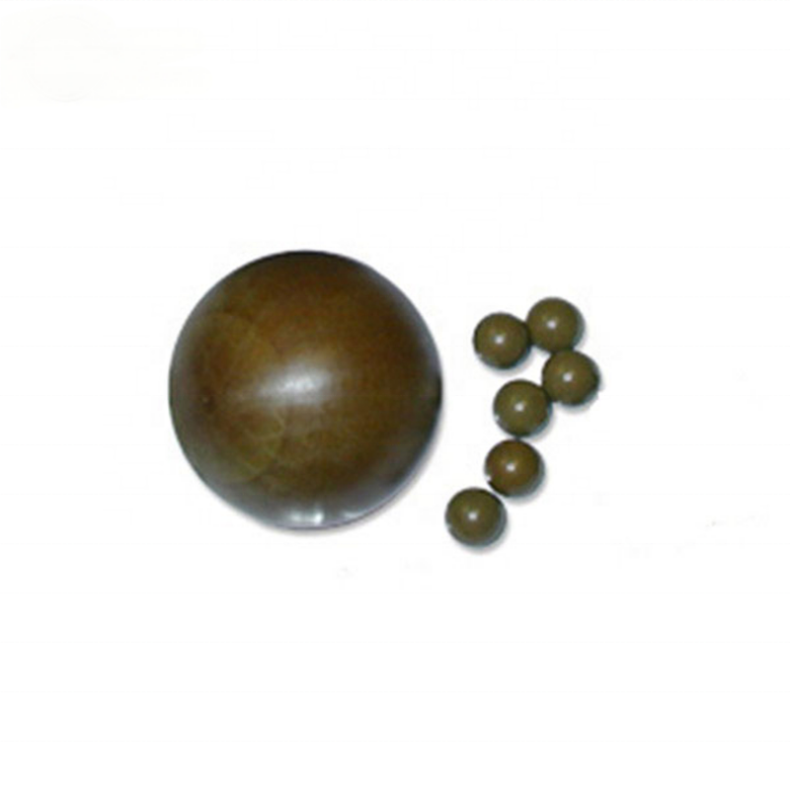

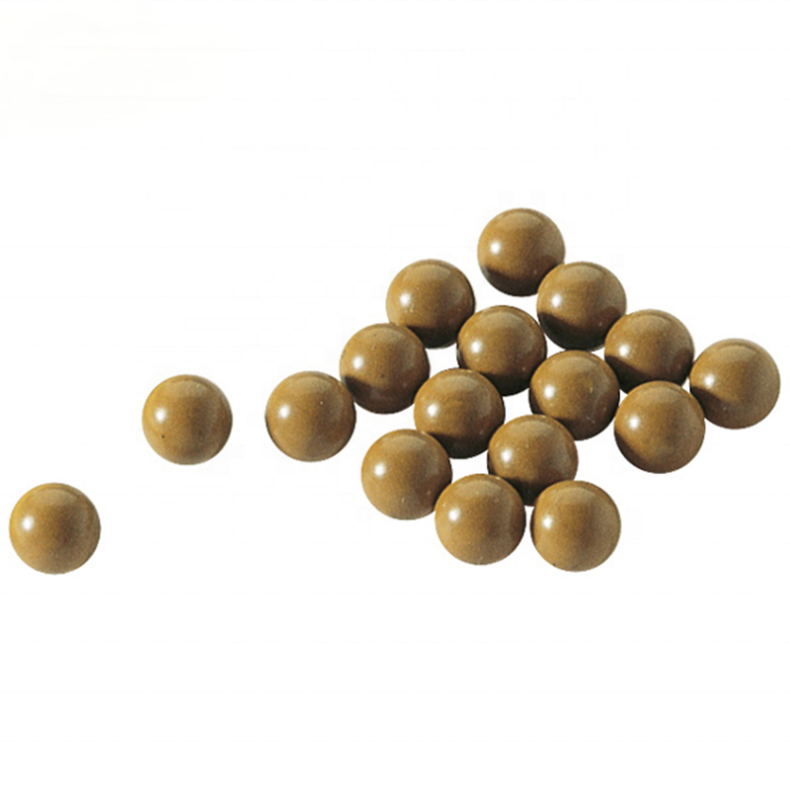

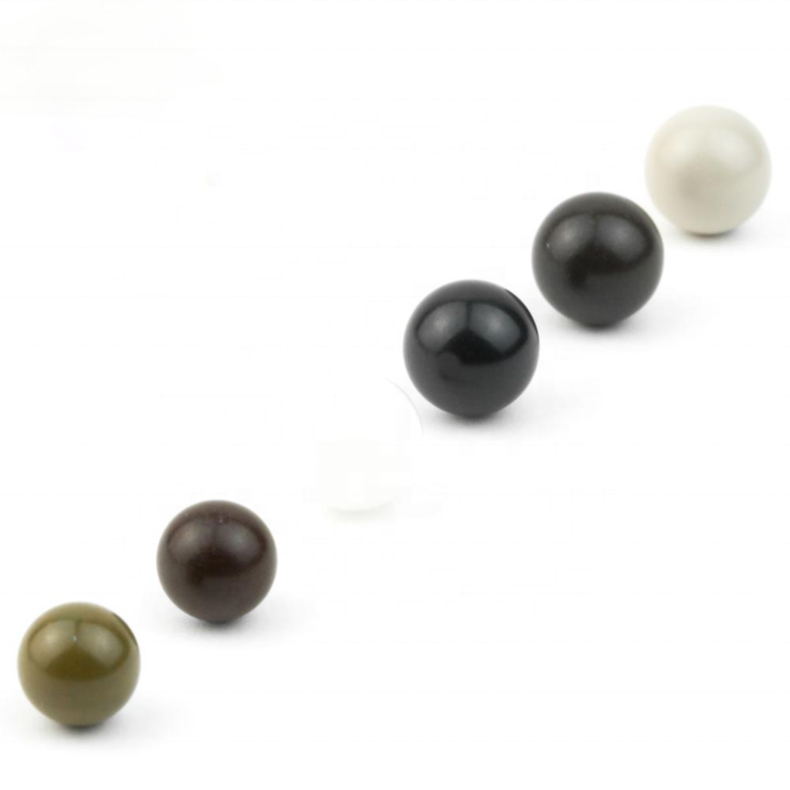

Torlon Ball(Torlon)
Density:1.47g/cm³.
Diameter:Ø3.175mm~Ø25.4mm, special specifications can be customized.
Available Grades:G0,G1,G2
Available grades and tolerances (table)
Product Characteristics, Functions, Applications
Torlon is one of the most temperature resistant materials among plastics, with high strength, high stability, high impact resistance and low coefficient of friction. It is mainly used for bearings and wear parts with high strength, good stability and good impact resistance.
Applications: non-lubricated bearings, slides, seals, etc.
HONY Plastic has developed high-precision PAI balls for automatic transmission valve plates and sailboat cable pulleys by using Torlon 4203 raw material supplied by Solvay, injection molding, curing, grinding, and polishing processes in order to meet the needs of customers.
