shaft forging

3 month ago

3 0 

6 month

Product details

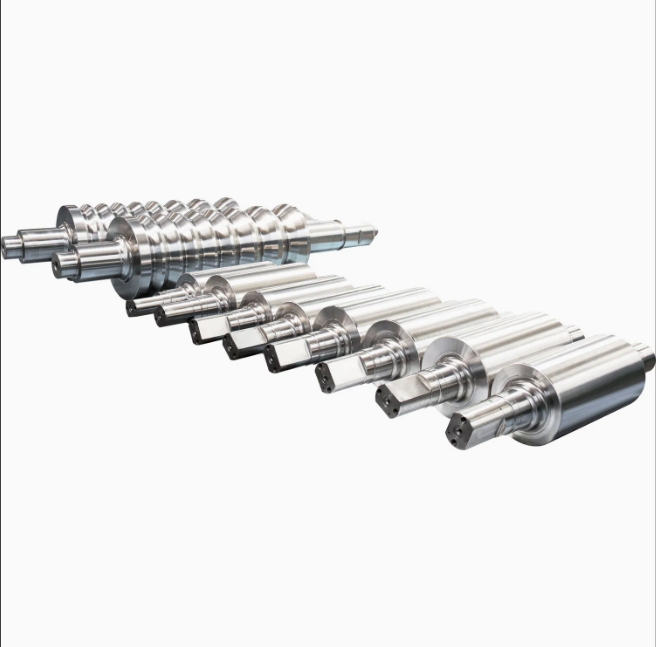

Forging shaft is a kind of shaft product made by forging process, which is widely used in machinery, automobile, ship, aerospace and other fields. From the material grade to introduce the product details of the forging shaft, the first thing to be clear is that the material grade selected in different application scenarios will be different, because different materials have different performance characteristics. The following are several common grades of materials used to manufacture forged shafts and their characteristics:

1. 45# steel (Chinese standard) : This is a kind of carbon structural steel, the carbon content is about 0.45%, with good comprehensive mechanical properties, such as high strength, good toughness and other advantages. Suitable for the production of the general requirements of the drive shaft, gear and other parts.

2. 40Cr (Chinese standard) : belongs to a kind of alloy structural steel, in addition to containing a certain proportion of carbon, but also added chromium element to improve the hardenability and wear resistance of steel. This material is often used to make shaft parts that bear large loads and require certain surface hardness.

3. 20CrMnTi (Chinese standard) : This is a low-carbon alloy carburized steel, the main feature is that after appropriate heat treatment can obtain high surface hardness and core toughness, very suitable for the manufacture of heavy loads and require good wear resistance of gear shaft and other components.

4. 304 stainless steel: For some applications in special environments, such as the food processing industry or where corrosion resistance is required, 304 stainless steel may be chosen to manufacture Forging Steel Shaft. 304 stainless steel has excellent corrosion resistance and good processing properties.

5. Titanium alloy: In some high-end or special fields, such as the aviation industry, in order to pursue lighter mass and higher strength ratio, titanium alloy is sometimes used as a material for forging shafts. Titanium alloys are known for their excellent weight-strength ratio and excellent corrosion resistance.

Each material has its specific application scenarios and technical requirements, and it is also necessary to consider cost factors and the specific needs of the final product in the actual selection. In addition, no matter what kind of material is used, the correct heat treatment process is one of the key links to ensure the quality of the forged shaft. Correct and reasonable heat treatment can significantly improve the microstructure of the material, so as to achieve the purpose of optimizing the product performance.
