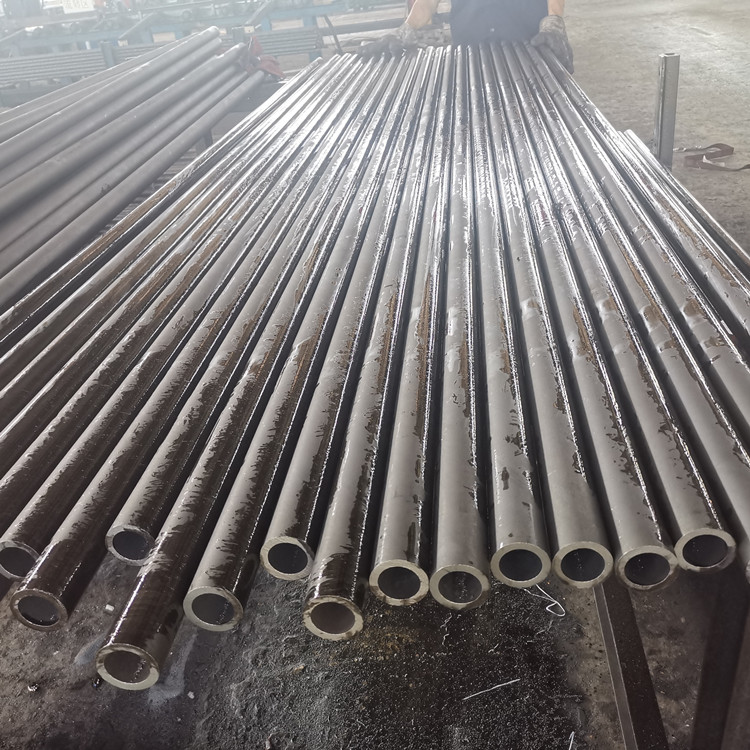

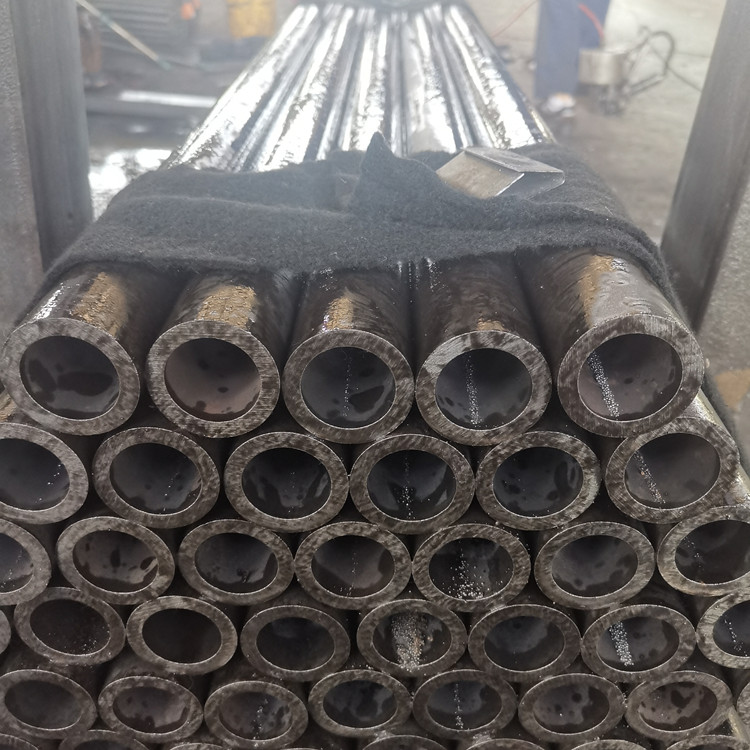

4137 quenched and tempered steel tube
Heat treated steel tube we produce are round steel tubing such as annealed tubing, normalized tubing and quenched & tempered steel tubing. They are all seamless pipe. 4137 quenched and tempered steel tube is used extensively in applications for automotive industry, Hydraulic, Mining and oil and gas drilling industry. 4137 Q&T tubes include 4137 Q&T seamless steel pipes and 4137 Q&T drilling hollow bars. 4137 steel pipe has higher strength than 4130 pipe.
4137 Q&T steel tube we supply includes following advantages:
Consistent mechanical properties
Even thickness on the whole bars
Deep mechanical properties
Even hardness on the whole bars/Tougher and Increased strength
No brittle, UT testing/Precision size tolerance/Good straightness
Good Roughness/Professional technical service/Competitive price/Fast delivery
Specification of 4137 steel tube we supply:
|
Sizes |
OD range from 20mm to 100mm, Thickess: from 4mm to 20mm |
|
Tolerances |
Precision to h9, h10, h11 or even small to 0.02mm |
|
Roundness |
75% of diameter tolerance |
|
Straightness |
Good straightness to 0.5mm/m |
|
Surface roughness |
Smooth to 0.8um |
|
Mechanical properties |
Yield strength and tensile strength can be improved |
|
Machining |
Suitable for machining and welding |
1. 4137 steel equivalent material:
|
GB |
ASTM/SAE/AISI |
DIN |
SCM |
AS /NZS1444 |
|
35CrMo |
Aisi 4137 / sae 4137 / astm 4137 |
34CrMo4 |
SCM435 |
AS 4137 |
2. 4137 steel chemical composition:
|
Materail |
Chemical Composition % |
||||||
|
|
C |
Si |
Mn |
S |
P |
Cr |
Mo |
|
4137 |
0.35-0.40 |
0.15-0.35 |
0.70-0.90 |
0.035 max |
0.035 max |
0.80-1.10 |
0.15-0.25 |
3. 4137 steel mechanical properties:
|
Mechanical Properties |
||||
|
Yield Strength (MPa) |
Tensile Strength (MPa) |
Elongation |
Reduction of area |
AKV (J) |
|
785min |
930min |
12% min |
50% min |
63 min |
