Product details

Product introduction

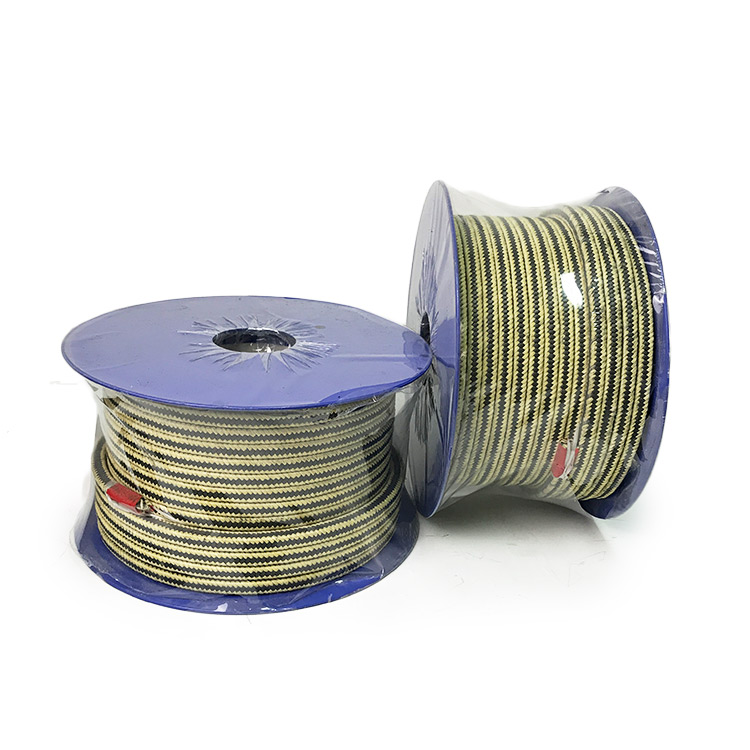

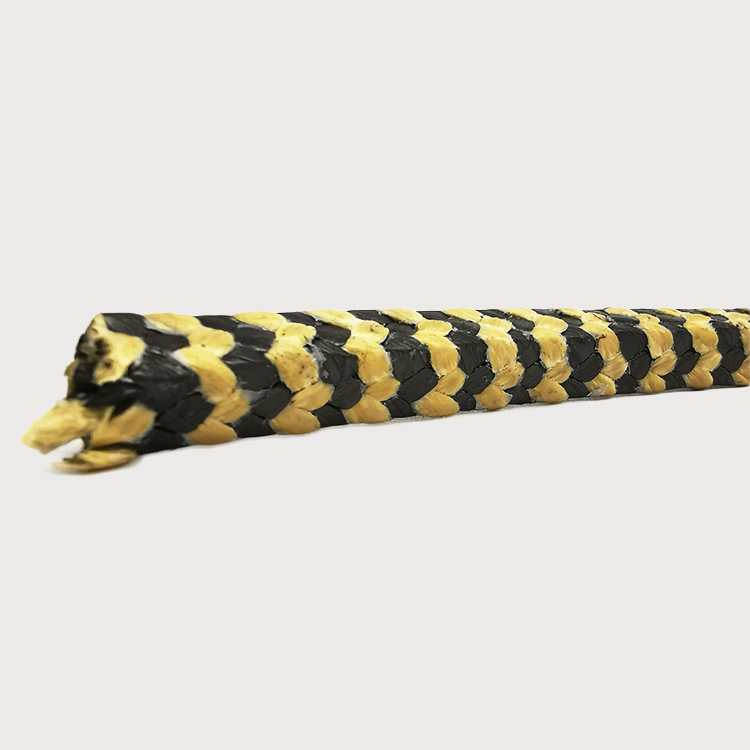

This graphite packing is a combination of PTFE graphite fiber cire with high graphite

content and mixed braided kevlar fiber of kevlar filaments gives packing which is suitable for operation at high pressure and high speeds simultaneously .

Gasket Sheet, Gauge Glass, Glass Tube, Level Gauge, Quartz Glass, Rubber gasket, Sight Glass, beater paper

Application

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.

	Rotating	Reciprocating	Static
Pressure	15 bar	100 bar	200 bar
Shaft speed	12 m/s
Density	1.65g/cm3
Temperature	－150~+280°C
PH range	0~14
