Compared with the other kinds of gaskets, this one is soft and flexible with advantages of better joint to flange and no corrosion.

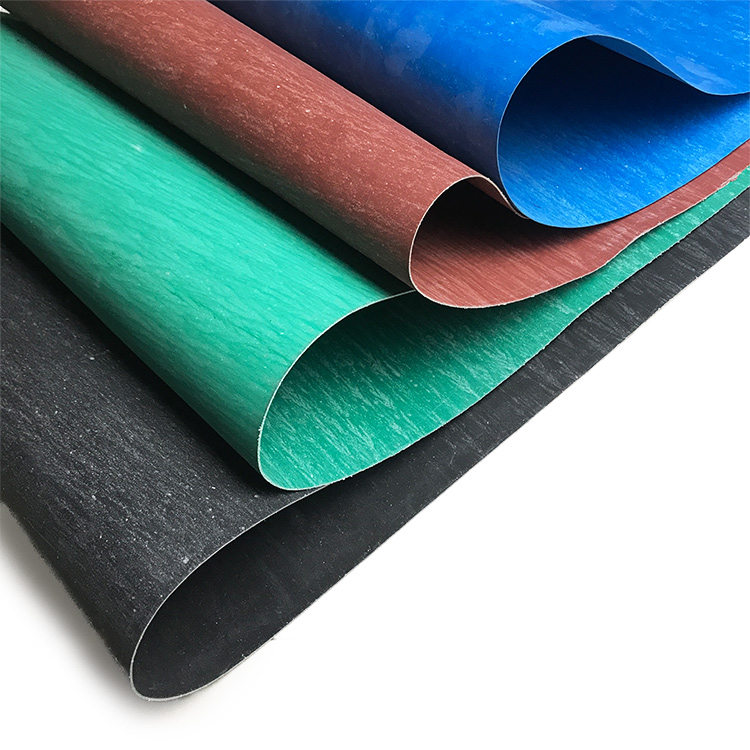

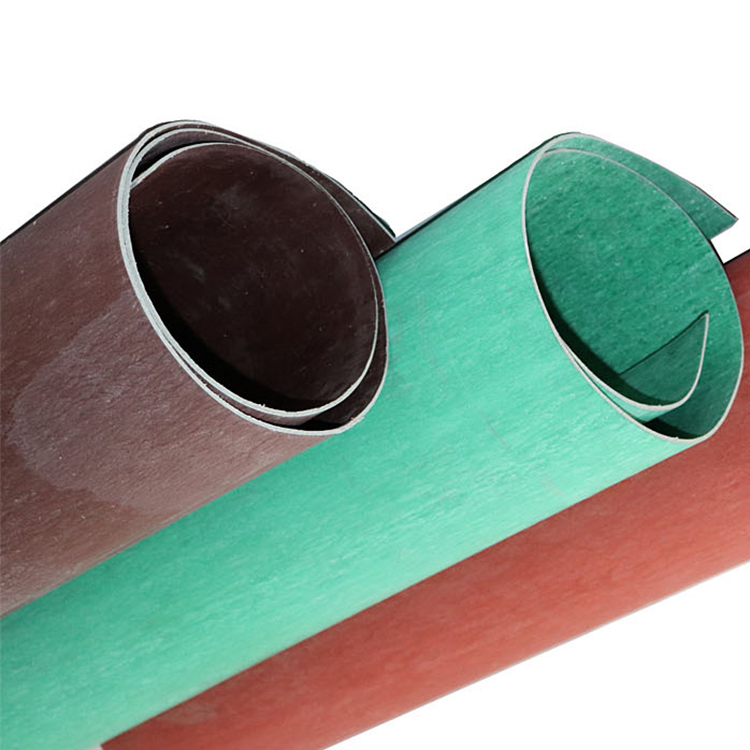

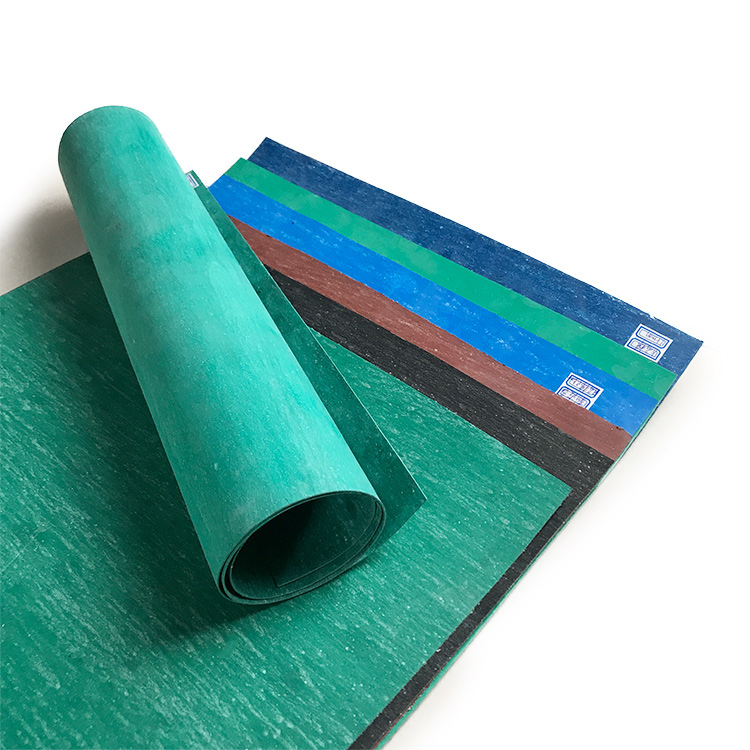

Hot Sale XB150 Oil Resistant Non-Asbestos Rubber Sheet1
3 year ago
Product details
Product properties
|
Available Sizes: |
|||
|
Thickness: 0.3 to 5.0 mm |
|||
|
1500mm x 4500 mm |
1500mm x 4100 mm |
1300mm x 3850 mm |
1500mm x 2000 mm |
|
1500mm x 1500 mm |
1500mm x 1360 mm |
1500mm x 1000 mm |
1270mm x 1270 mm |
|
The other size is optional or according to the requirements of customers. |
|||
|
Quality |
Tensile strength MPa≥ |
Aging Coefficient ≥ |
Compressibility % |
Rebound degree |
|
NXB200 |
6 | 0.9 |
12±5 |
30 |
|
NXB300 |
8 | 0.9 |
12±5 |
40 |
|
NXB350 |
11 | 0.9 |
12±5 |
45 |
|
NNY200 |
8 | 0.9 |
12±5 |
40 |
|
NNY250 |
10 | 0.9 |
12±5 |
45 |
|
NNY300 |
12 | 0.9 |
12±5 |
50 |
|
NNY350 |
15 | 0.9 |
12±5 |
50 |
Non-Asbestos Joint Sheet are made of the frame materials including aramid fiber and synthetic mineral fiber after special proportioning with oil-resistant rubber binders and adding other functional additives and compression molding it. Uses: Substitution of corresponding models of asbestos rubber sheet ,Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline.
Braided Gland Packing, Gauge Glass, Level Gauge, Quartz Glass, Reflex Gauge Glass, Sight Glass, Transparent Gauge Glass
Non-asbestos sheet
Mainly used as high-temperature pressure gasket for gasoline, mineral oil, fuel, hot chemical solvent oil and alkali medium.
Adapt to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.
Compressed Non-asbesto sheet is made from synthetic fiber, natural rubber, filling material and dye, compressed and calendered under high temperature and pressure into a sheet form.
