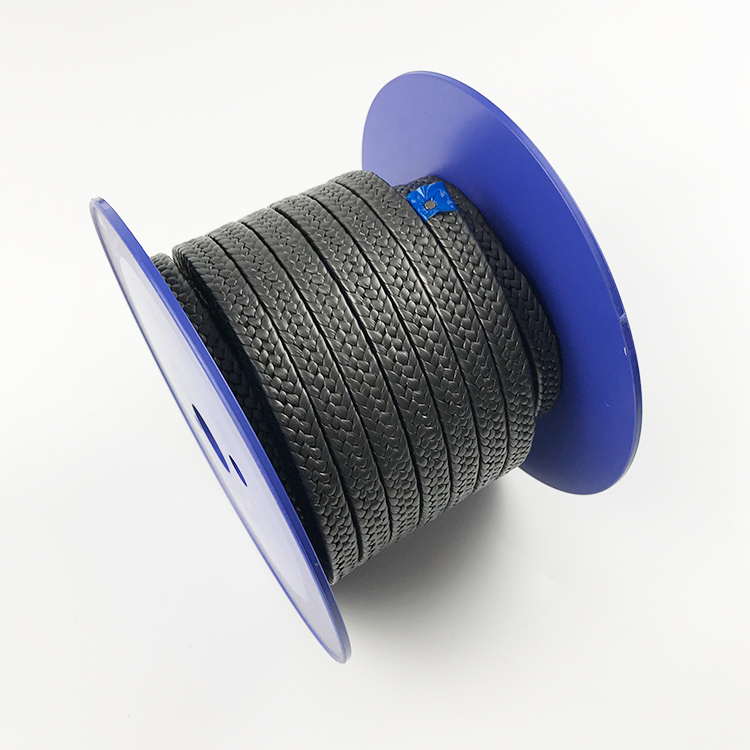

High Temperature PTFE graphite gland packing1

3 year ago

2 0 

3 year

Product details

Product introduction

The packing is woven of graphite PTFE yarn twisted through a mixture of PTFE dispersion resins and fine graphite poeder plus moderate amount of heat resistant lubricant.

Beater sheet, Cylinder Head Gasket, Gasket Sheet, Gauge Glass, Gland Packing, Level Gauge, Quartz Glass, Sight Glass

Application

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.

	Rotating	Reciprocating	Static
Pressure	15 bar	100 bar	200 bar
Shaft speed	12 m/s
Density	1.65g/cm3
Temperature	－150~+280°C
PH range	0~14

Details Images
