45W Type-c Universal Power Supply Adapter For Lenovo
Description of product
- Type-c laptop adapter is also could be described as 45W Type-c Universal Power Supply Adapter For Lenovo
- Type C laptop adapter is very common in our daily life.
The design of the Type-C port is not only based on the consideration of fast charging, but also involves the output of video, audio and USB data.
The meaning is as follows:
1. It is more convenient to use. The Type-C port supports positive and negative insertion, regardless of the direction of insertion, it is easy to plug in the device, and it is very convenient to use. The USB-A port only supports one side insertion. Check the direction before use. Sometimes it takes two to three times to insert it successfully.
2. Fast charging is more unified. Now new notebooks and mobile phones are equipped with Type-C ports, and the adapters all support USB PD fast charging. One advantage of this is that different notebooks and different mobile phones can use the same adapter. to charge. When traveling with a mobile phone and a notebook, you can take an adapter, and you can also charge your colleague's Type-C notebook and mobile phone, making it more convenient to carry. Notebook DC port adapters can only be used with specific notebooks. Usually, several devices require several adapters, which do not have the advantage of Type-C. And once the notebook is scrapped, the DC port adapter will be useless, and the world will generate more electronic waste in the long run.
3. Faster data The data transmission speed of USB-A is up to 5Gbps, which is the theoretical maximum speed of USB 3.0 data that we often say, while Type-C is now equipped with the latest USB4, with a transmission speed of up to 40Gbps, which is the traditional USB- 8 times A. Transfer files between notebooks and devices faster and connect more devices.
Product details
Specifications
Model No.
YI412
AC Input
Nominal Input Voltage
AC 100V~240V 1.2A
Input Voltage Range
AC 95V~265V
Input Frequency
50/60Hz
DC Output
Output
20V 2.25A/12V 3A/5V 2A
Output Power
45W
DC Connector Size
New Type C
Line Regulation
2%
Load Regulation
5%
Ripple Noise
180 Mvp-p
Efficiency
>85%
Output Cable Standard
0.5mm2, OD 4.0mm Pure Copper
Output Cable Length
2m normally or customized requirement
Environment
Operating Temperature
0°C ~40°C
Operating Humidity
5%~95%RH
Storage Temperature
-20°C ~85°C
Storage Humidity
5%~95%RH
Protection
Over Load Protection
Short Circuit Protection
Over Current Protection
Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

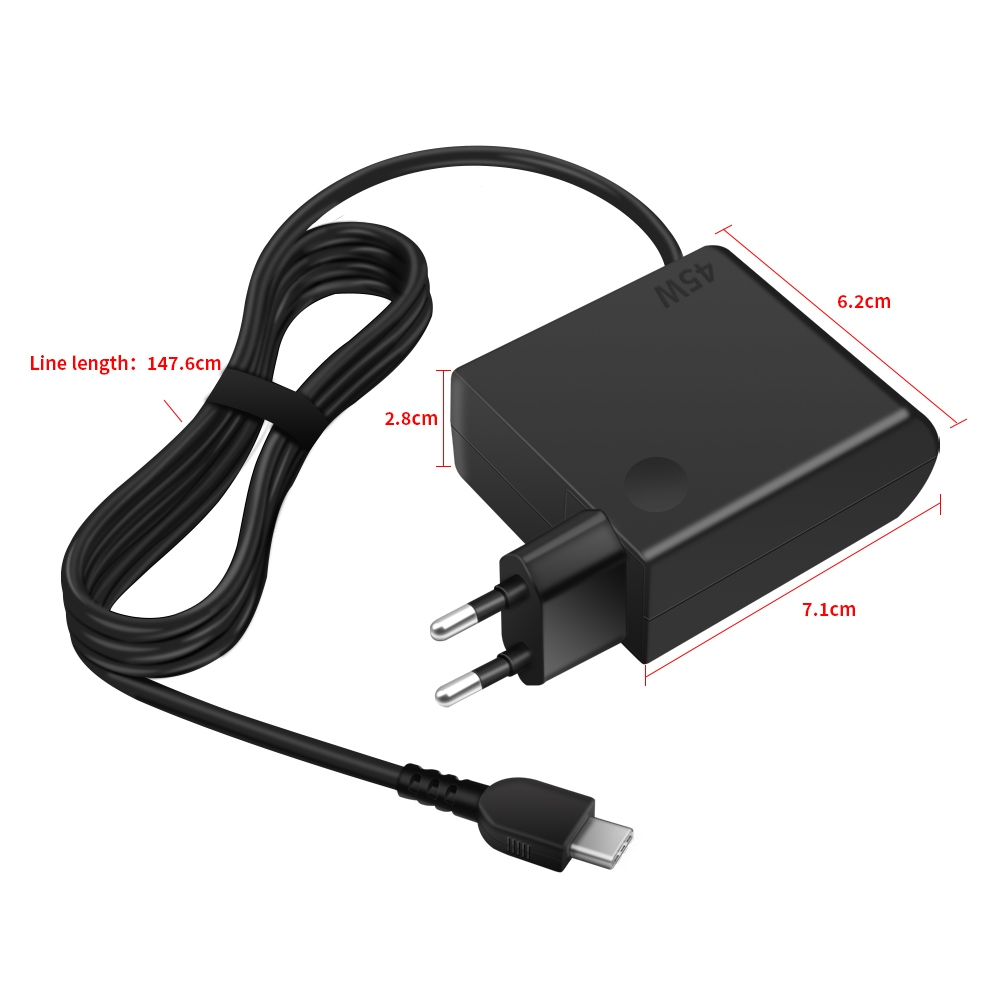

Dimensions
Adapter Size
72*62*28MM(not including the AC plug)
AC plug length
17mm
Adapter Weight
Inner Box Size
19*13*4.7CM
Inner Box Weight
40G
PCS/CTN
50PCS
Outer Carton Size
48.5*32*40CM
Outer Carton Weight
860G
GW/CTN
11460G
Package
Inner Box
Normally neutral brown box or customized requirement
Outer Carton
Normally neutral standard carton or customized requirement
Warranty
Guarantee
30 days
Warranty
1 years
Terms and Conditions
MOQ
100PCS for mixed order
Payment Terms
T/T, L/C, PayPal, western union
Delivery Time
3-5 days
Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
Pictures of product
