Gantry Type Punch Press 125 Tons High Speed Punching Machine Aotumatic Power Press Battery Cover Rupture Disc High Speed Stamping Machine1
2 year ago
Product's Main Parameters:
| Main Specification | Unit | Parameter | ||||
| Capacity | Ton | 125 | ||||
| Stroke | mm | 20 | 30 | 40 | 50 | |
| Stroke Per Minute | S.P.M | 200-550 | 200-500 | 200-450 | 200-400 | |
| Die-Hight | mm | 365-415 | 360-410 | 355-405 | 350-400 | |
| Slide Adjustment | mm | 50 | ||||
| Slide Area | mm | 1300*600 | ||||
| Bolster Area | mm | 1400*850*160 | ||||
| Bed Opening | mm | 1150*200 | ||||
| Main Motor | HP | 40 | ||||
| Transfer Mold Motor | HP | 1/4 | ||||
| Lubricating System | Forced Lubrication's system and Cooling machine | |||||
| Avoid Shake System | SAHA Prevent Quake Foot | |||||
| Presses Dimension | mm | 2800*2100*3460 | ||||
| Presses Precision | GB(JIS) 1 Class | |||||

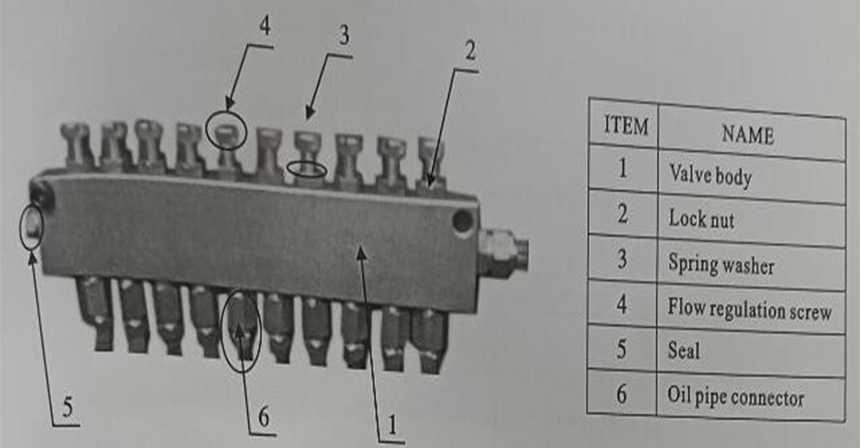

Oil Separating Valve of High Speed Press:
Note: The adjustment of Oil should follow below steps:
(1) During adjusting the oil pump should be in working condition.
(2) Loosen the lock nut.
(3) Turn the adjusting screw with the "one" screwdrive (to decrease the flow in clockwise direction and increase the flow in counter clockwise direction).
(4) After adjustment for a while need observe for a while to see whether the flow changes.
(5) Tighten Locknut.
