Automatic Aluminum Spacer Bending Machine LWJ01

Spacer Bar Bending Machine used to bend aluminum spacer bar for Double glazing glass.It can bend rectangle and other shapes.Our Bar Bending Machine with OMRON PLC control.

Features and functions:

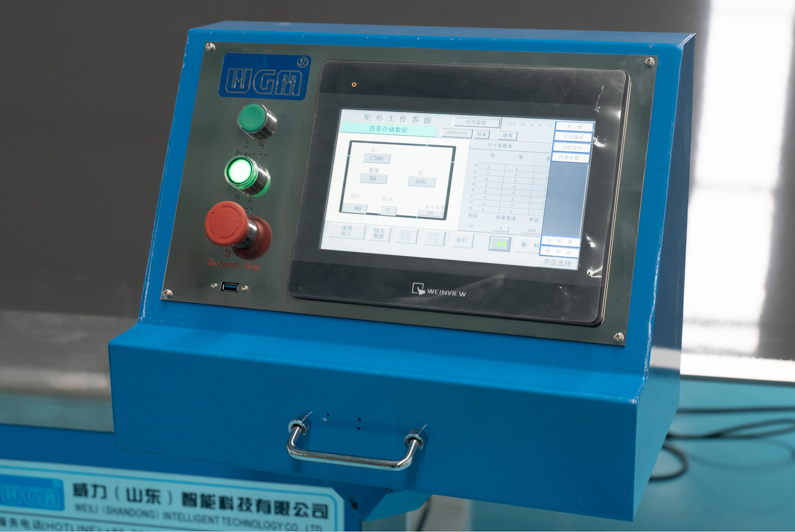

1. The whole machine is controlled by OMRON PLC. The Man-machine contact screen is easy to operate. The whole machine features easy and quick operation.

2. It adopts Taiwan Airtac pneumatic components. The movements of the machine are precise and reliable.

3. It adopts the Japan Panasonic servo motor system to feed and bend the alumnium bar. The efficiency and bending precision are high.

4. The machine is equipped with four storage area and can store four different size of alumnium bar.

5. When bending and cutting, the machine will automatically avoid the connection parts of the alumnium bar and the circle arc parts. After bending, the machine will cut the bar automatically.

6. It can be operated manually so it is easy to debug and maintain the machine.

7. The machine can produce 32 different shapes of alumnium bar,including the triangular, rectangle, positive pentagon, circle arc with a straight line.

8.It has automatic loading and unloading system.

9.It use more easy and convience.

More Details about the insulating Glass aluminum spacer bar bending machine

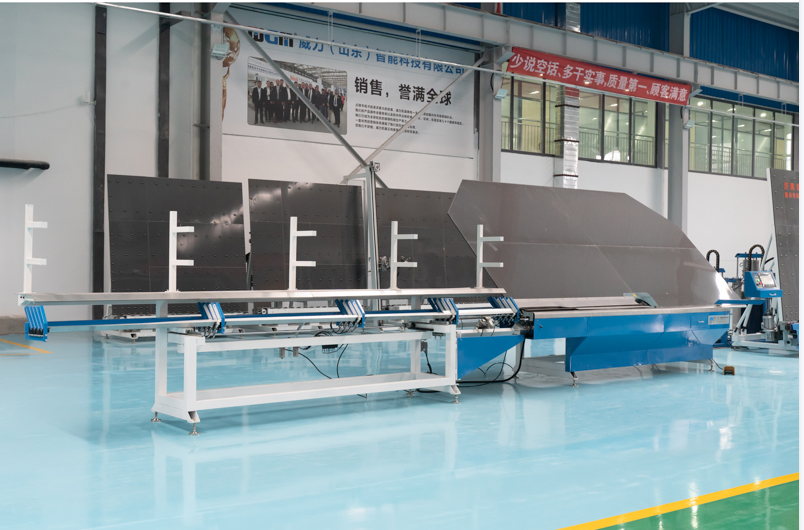

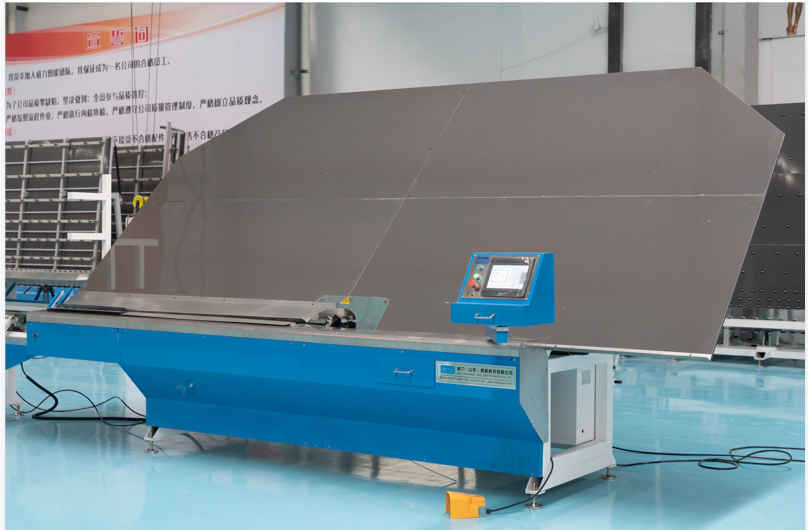

The LWJ01 aluminum spacer bar bending machine picture:
