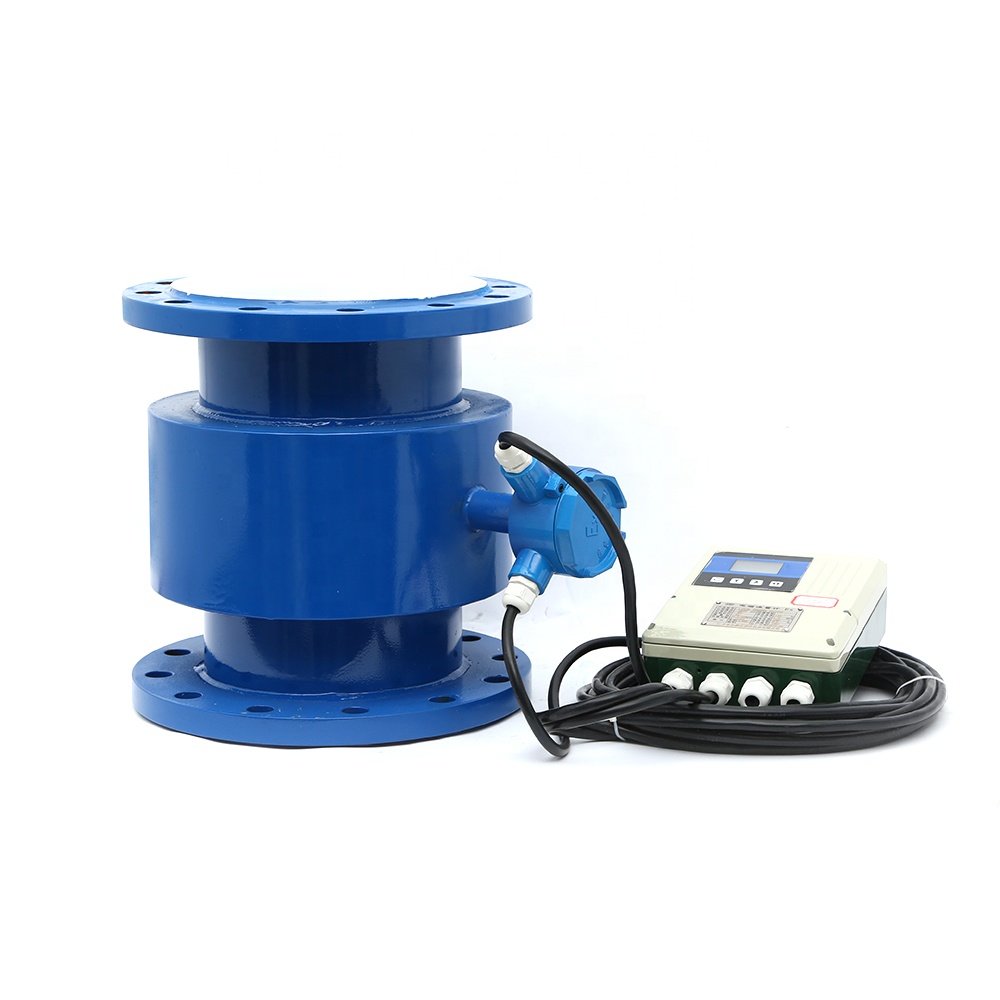

Split type electromagnetic flowmeter

The split type sewage pipeline electromagnetic flowmeter is mainly used to measure the volume flow rate of conductive liquids and slurries in closed pipelines such as water, sewage, mud, pulp, various acid, alkali, salt solutions, food slurries, etc. Widely used in industries such as petroleum, chemical, metallurgy, textiles, food, pharmaceuticals, papermaking, as well as environmental protection, municipal management, and water conservancy construction.
The main components of the sensor for the split type sewage pipeline electromagnetic flowmeter include: measuring tube, electrode, excitation coil, iron core, and magnetic yoke shell. Its measurement principle is based on Faraday's law of electromagnetic induction. The split type sewage pipeline electromagnetic flowmeter consists of a sensor and a converter. The sensor is installed on the measurement pipeline, and the converter is installed within a range of 30 or 100 meters from the sensor. The two are connected through shielded cables for separate operation.
Product features: 1. Measurement is not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity;
2. There are no flow blocking components inside the measuring pipe, no pressure loss, and lower requirements for straight pipe sections;
3. Series nominal diameter DN15~DN3000. There are multiple options for sensor lining and electrode materials;
4. The converter adopts a novel excitation method, which has low power consumption, stable zero point, and high accuracy;
5. The converter can be integrated with the sensor or separated from the sensor;

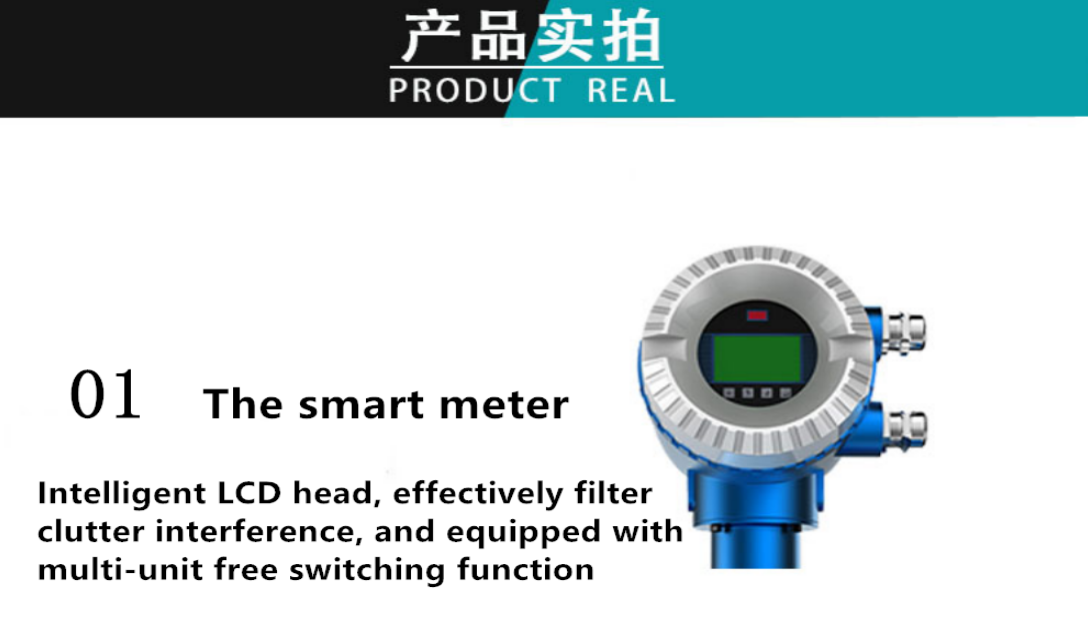

6. The converter adopts a 16 bit high-performance microprocessor, LCD display screen, convenient parameter setting, and reliable programming;
7. The flowmeter is a bidirectional measurement system equipped with three integrators: forward sum, reverse sum, and differential sum; It can display current, reverse flow, and has multiple outputs such as current, pulse, digital communication, and Hart;
8. The frequency converter adopts surface mount technology and has self inspection and self diagnosis functions.

Our main products include electromagnetic flowmeter, turbine flowmeter, energy meters, mass flowmeter, vortex flowmeter, pressure transmitter, level meters, and magnetic flap level meters.
