Jet Mill

LNJM Series Pharmaceuticals Dedicated Jet Mills

certificated by GMP and FDA

Introduction of LNJM  Jet Mill:

 The LNJM Series Pharmaceuticals Dedicated Jet Mill is specially designed for the size reduction of herbs.It is a size reduction equipment that complies with GMP standards.

The  LNJM Series Pharmaceuticals Dedicated Jet Mill has the following features：

• The ultrasonic airflow makes the materials to collide and abrade each other, that ensures the purity without contamination Cooling flow keeps the temperature below 10℃ ( Normal is 10℃) during grinding, make sure the products’ natural characterthe equipment is made of stainless steel, Surface ,
• Smoothness can achieve Ra = 0.4 um, and easy to clean
• The outer face end seal technology(unique technology), ensures obtain the strict particle size distribution and  the precision of classification
• Combined excellent dynamic balance and high quality imported bearing, ensures the stability of product under high speed operation
• Collector filter material is certificated by GMP & FDA, collecting efficiency can be up to 99.99%; seal negative pressure operation without contamination
• PLC automatic control system can connect with DCS, easy operation
• Easy to dismantle and clean, disassembling part adopts quick bayonet connection, main parts have assisted opening device, and can customized design CIP/SIP online cleaning system
•  Assistance for URS & 3Q certification
•


•

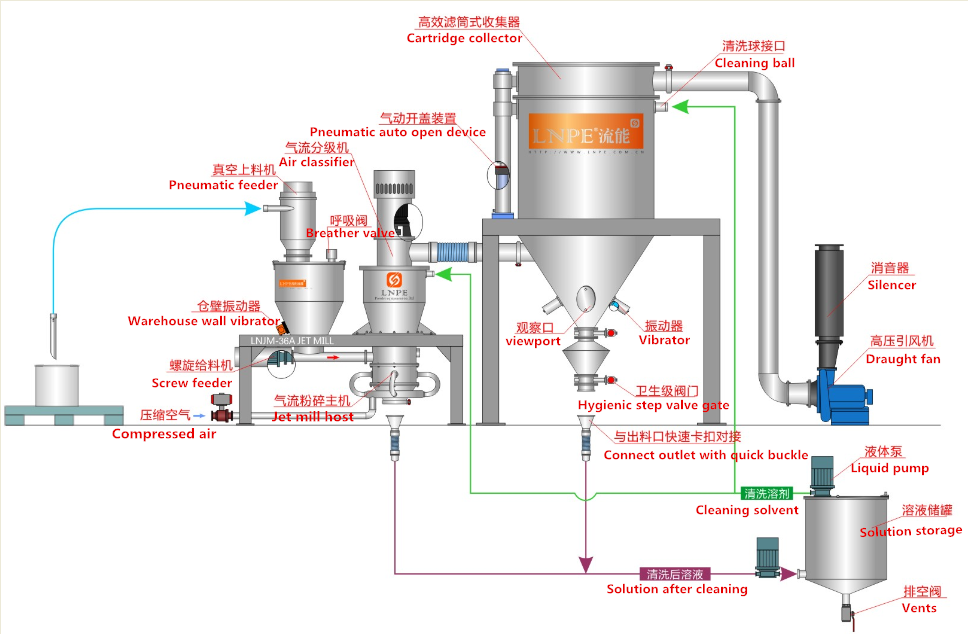

  Flowchart of LNJM  Jet Mill:

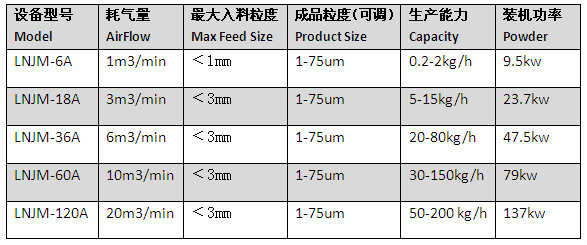

  Technical Data of LNJM  Jet Mill:


   Test work

  LNPE has full-scale, advanced technology and equipment powder processing test center, includes laser Particle Size Analyzer, electro microscopy, etc ,and our product is customized to meet user’s requirements of different particle size.

  Specific surface tester: Quantachrome Nova 3000

  Electron microscopy (sem) scanner: Carl Zeiss

  Particle size analyzer: Malvern sprayanalyzer MS 2000, Beckman Coulter LS 200.

  Technique and Service

  • Customized selection and flowsheet design, provide equipment layout and factory consultation.
  • Sending technical engineer to guide the installation, commissioning and training service .
  • Supply expert consultation and detection ensure the equipment operation normally, and get feedback from customers regularly.
  • Long-term technology support for upgrading and solving difficulties.
  • one year of warranty period.
