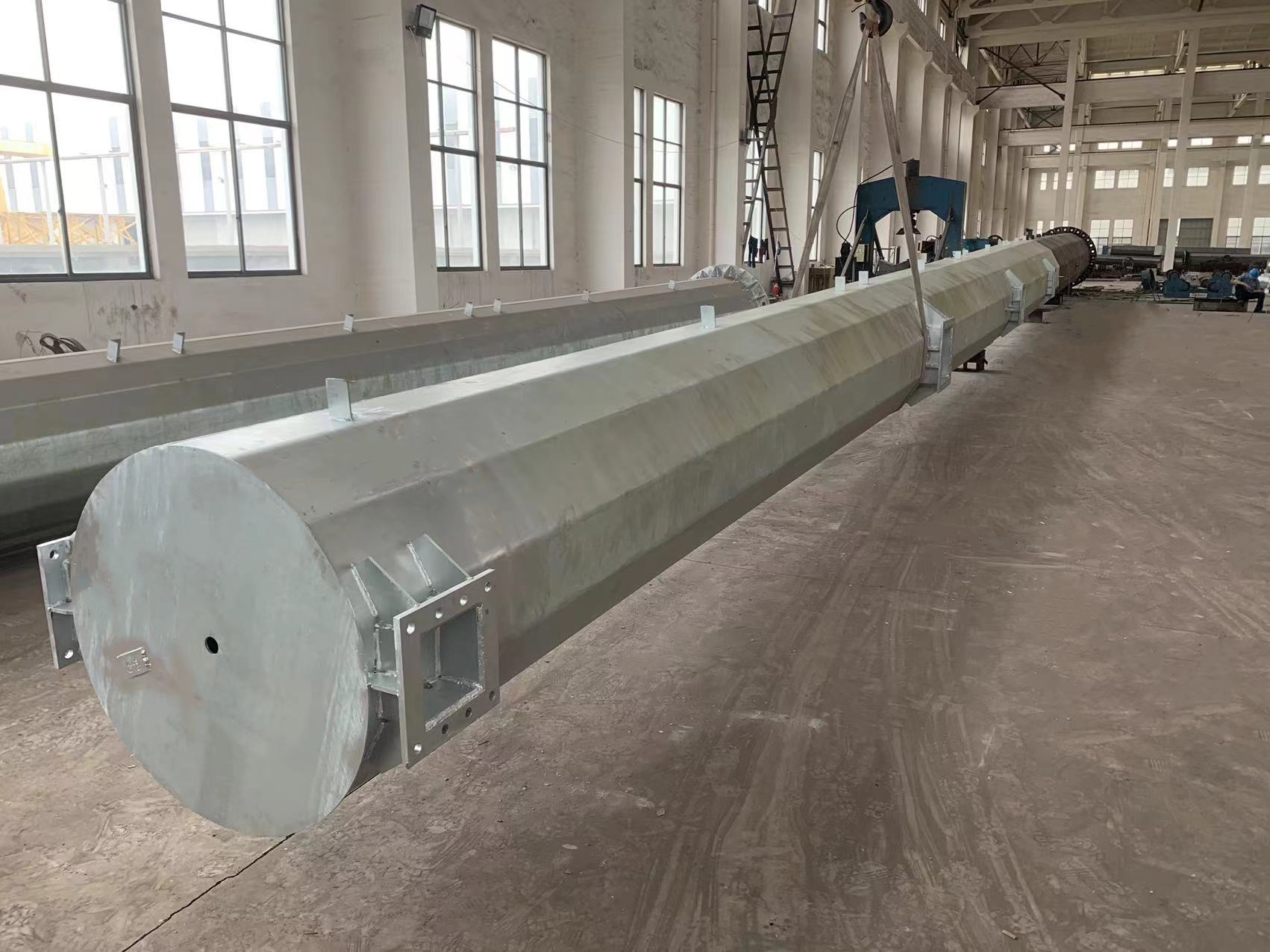

Trial assembly of 43m 0°~60° strain steel pole

9 month ago

5 0 

Jiangsu Baojuhe Science and Technology Co.,Ltd.

1 min

Product details

Material Q355B,5-segment plug-in type, total length of 43m, 138KV galvanized steel pole.

2 ground cross arms : thickness 8mm, height 1450mm

6 conductor cross arms : thickness 10mm, height 3500mm

28 M72*2600mm anchor bolts

Body 1 : top diameter 846mm, butt diameter 1182mm, thickness 8.0mm, height 11400mm

Body 2 : top diameter 1115mm, butt diameter 1459mm, thickness 14.0mm, height 11650mm

Body 3 : top diameter 1367mm, butt diameter 1676mm, thickness 22.0mm, height 10450mm

Body 4 : top diameter 1559mm, butt diameter 1858mm, thickness 26.0mm, height 10110mm

Body 5 : top diameter 1726mm, butt diameter 1980mm, thickness 28.0mm, height 8574mm

Jiangsu Baojuhe Science and Technology Co.,Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.

Baojuhe is the specialized manufacturer of various steel poles and steel components including Galvanized steel pole, Power Transmission Pole, Steel Lighting Pole, Traffic Signal Steel Pole, Substation Structures, Flag Poles, Wind Power Poles, Microwave Communication Towers, etc.

Through Shanghai Port, our steel poles have been exported to South America, the Middle East, Africa, Australia, the Philippines and other countries.
