Corten Steel Plate

Weather-resistant steel plate, also known as weathering steel plate, corten steel plate, that is, atmospheric corrosion-resistant steel,

is a low-alloy steel plate between ordinary carbon steel plate and stainless steel sheet. Weather-resistant steel is made of ordinary

carbon steel with a small amount of copper, nickel and other corrosion-resistant elements Made of high-quality steel, it has the characteristics

of high-quality steel, such as toughness, plastic extension, forming, welding and cutting, abrasion, high temperature, and fatigue resistance.
The use of high weather-resistant structural steel is mainly used for bolted, riveted and welded structural parts for vehicles, containers,

buildings, towers and other structures because of its better atmospheric corrosion resistance than weather-resistant steel for welded structures.

When used as welded structural parts, the thickness of the steel should not be greater than 16mm. The welding performance of weather-resistant

steel for welded structures is better than that of high-weather-resistant structural steel, and it is mainly used for welded structural parts for bridges,

buildings and other structures.

Standards and Classifications

Products	Corten Steel Sheet / Weathering Steel Plates
Standard Grade	ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4; A709 Gr 50W;
	EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP; S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W;
	JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW; SMA490CW; SMA570W; SMA570P;
	JIS G3125: SPA-H; SPA-C;
	GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH;Q355GNH; Q415NH; Q460NH; 1500NH; Q550NH;
	GB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi;
	Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR;
Thickness	Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used)
Width	1000-3000mm (1000-2200mm usually used)
Length	1000-12000mm or as your request
Surface	Clean, finishing,blasting and painting according to customer requirement
Process	Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required
Certificate	API,ISO,SGS,BV,CE etc
Quality	MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS.
Package	Standard export seaworthy package,suit for all kinds of transport,or as required.
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
Trade term	Ex-Work,FOB,CNF,CFR,CIF,etc
Application	Widely used in a variety of architectural and engineering structures,such as
	1.) metal constructions such as buildings,bridges,ships;
	2.) transmission tower, reaction tower;
	3.) lifting transportation machinery;
	4.) industrial furnace;boilers
	5.) container frame, warehouse goods shelves, etc

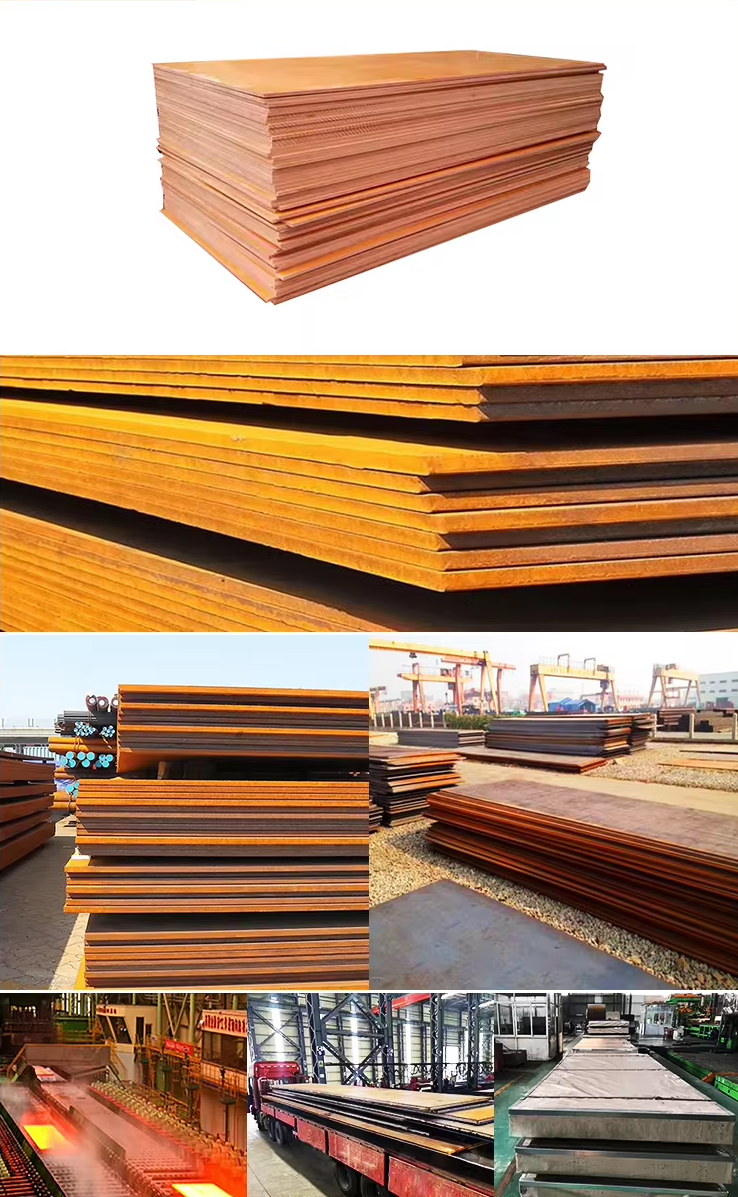

​​Product Display

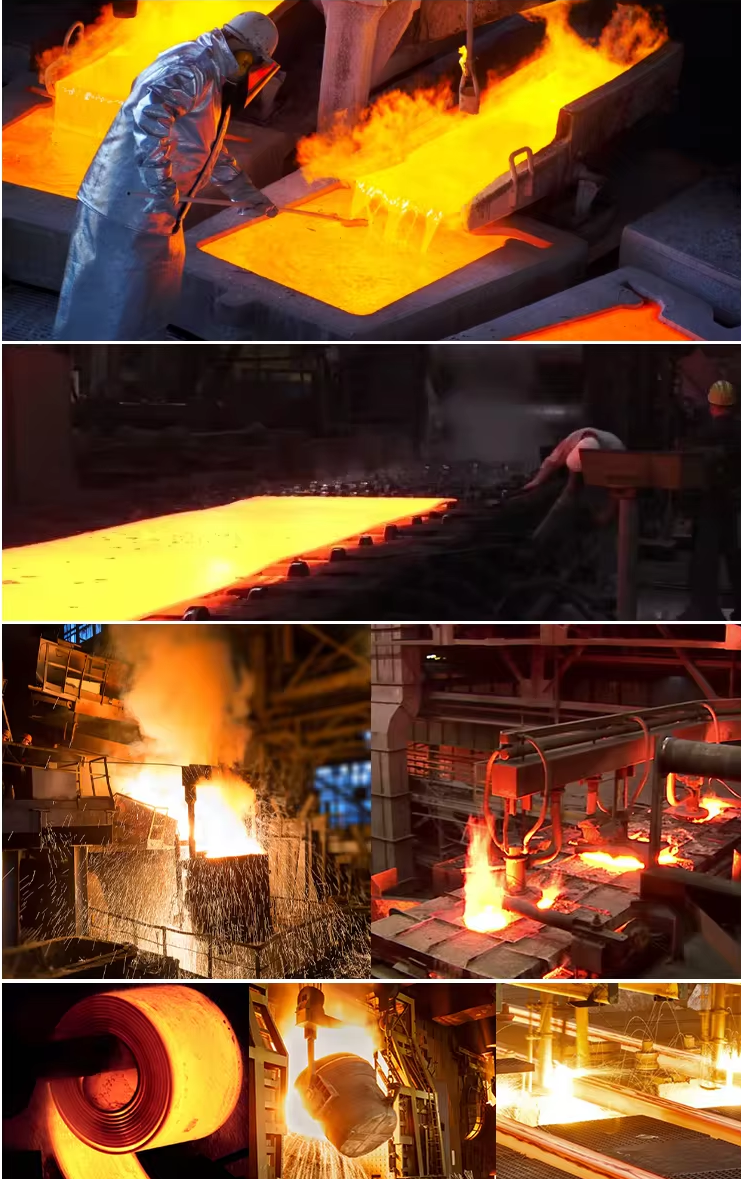

We have a large stock of steel coils, such as carbon steel coil, alloy steel coil, hot rolled steel coils, cold rolled steel sheet in coil, etc. Welcome to visit our factory at any time.

We can supply various types of carbon steel tubes/pipes to meet your various needs.

Grade	C	Mn	P	S	Si	Ni	Cr	Cu
COR-TEN A	≤0.12	0.20–0.5	0.07-0.15	≤0.03	0.25–0.75	≤0.65	0.50-1.25	0.25–0.55
COR-TEN B	≤0.16	0.8–1.25	≤0.03	≤0.03	0.30–0.50	≤0.40	0.40-0.65	0.25–0.40

​

Grade	Yield Strength	Tensile Strength	Elogation
	Mpa	Mpa	(A%)
COR-TEN A	≥345	≥485	≥21
COR-TEN B	≥345	≥485	≥21

​

Material	Weathering Steel
Standard	ASTM A588	ASTM A606	GB/T4170	TB/T 1979	EN10025-5	JIS G3125	JIS G3114
Grade	Grade A Grade B Grade C Grade K	Type 4	Q235NH Q355NH Q355GH Q460NH	09CuPNiCr-A	S235J0W S235J2W S355J0W S355J2W S355J0WP S355J2WP	SPA-H	SMA400 SMA490 SMA570

​

Tensile Strength	GB	JIS	NSC	SEW 087-81	EN 10155-93	ASTM A606M-98
MPa
340				WTSt37-2
				WTSt37-3
360					S235JOW
					S235J2W
400	16CuCr	SMA400AW、AP	NAW41
	(GB 4172-84)	SMA400BW、BP	NAWK41A、B、C
		SMA400CW、CP	S-ten1
		(JISG3114-98)	MARILOY S41A、G41
410	09CuP(GB 4171-84)
420	12MnCuCr
	(GB 4172-84)
430	09CuPCrNi-B
	(GB 4171-84)
440			S-ten1,S-ten2
460
480	09CuPCrNi-A	SPA-H(≤6mm)	COR-TEN A、B			T2、T4
	(GB 4171-84)	(JIS G3125-87)				(T=TYPE,)
490	15MnCuCr	SPA-H(>6mm)	NAW50,COR-TENO	WTSt52-3
	(GB 4171-84)	(JISG3125-87)	COR-TEN 50A、B、C
		SMA490AW、AP	MARILOY P50、S50
		SMA490BW、BP	G50、T50
		SMA490CW、CP	(A、B、C)
		(JISG3114-98)
510					S355JOWP、J2WP
					S355JOW、J2G1W
					J2G2W、K2G1W
					K2G2W
550	15MnCuCr-QT		COR-TEN C
	(GB 4172-84)
570		SMA570W、P	COR-TEN 60
		(JISG3114-98)

​​​​​​​​​Exhibition Of Cooperation

Packing & Delivery

Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements

FAQ

Q: Can I get samples before order ?

A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.

Q: Can I go to your factory to visit?

A: Of course, we welcome customers from all over the world to visit our factory.

Q: What product information do I need to provide?

A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q: Does the product have quality inspection before loading?

A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.

Q: How do we trust your company?

A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways,

by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
