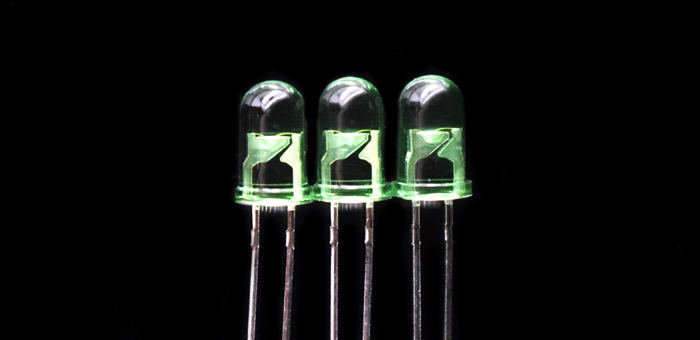

- 5mm Green Through-hole LED -

504YGT-09ED-45A

     The 5mm through-hole LED has a narrow beam width of 45° and a wavelength of 565 to 575 nm. 570nm LED is widely used in various LED lighting projects, such as traffic lights and LED backlights.  The 5mm yellow green LED emitter is packaged in a yellow green transparent lens that not only transmits bright full light, but also easily recognizes the color of the light when it is not illuminated. This is why the yellow green LED is so perfect.  There are two pins to the connection between the LED and the PCB. We use the best raw materials to ensure that this pin is easy to sell on the board. Quality won't let you down!

-Dimension Parameters -

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

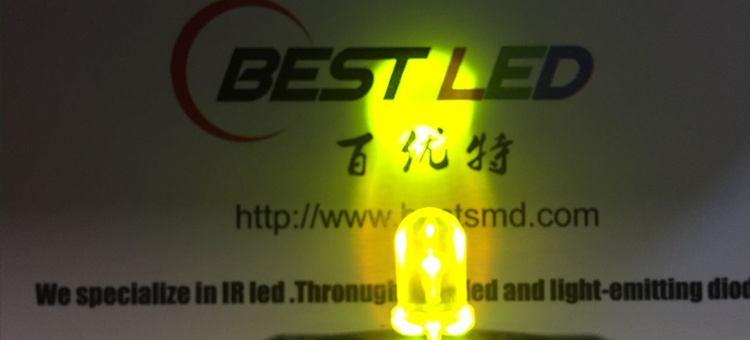

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

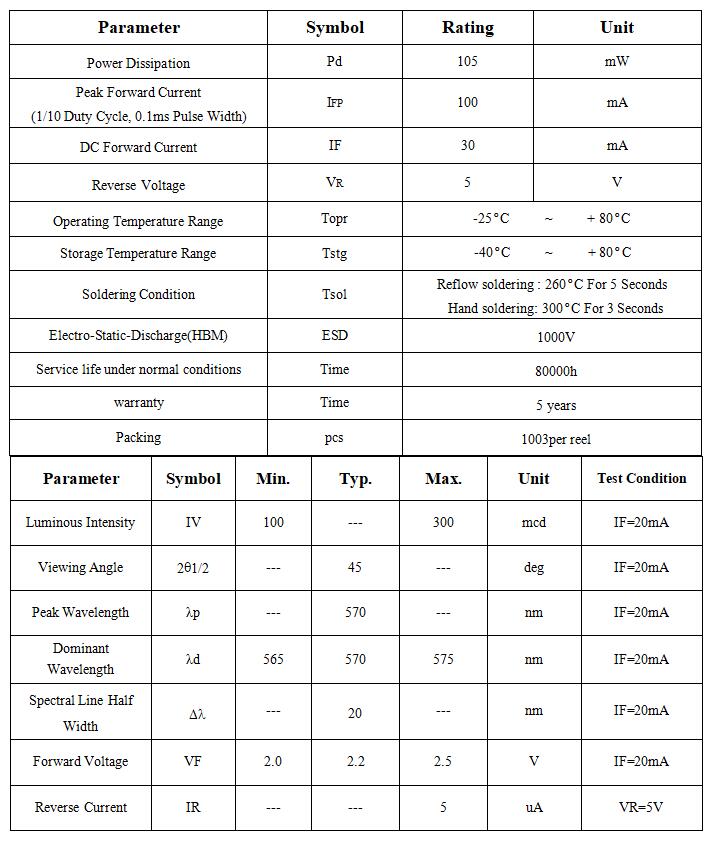

- Electrical Parameters -

- Golden Wire Connection -

*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection.

- Packing -

*We package this LED with 1000pcs in a bag Normally. We also can package it as your requirement.

- Application -

- Related UV LED -

- Production -

- Use -
