SMD electromagnetic buzzer

8 month ago

10 0 

2 year

Product details

Our company is a China professional electroacoustic manufacturer factory with 50 years history. in the production of electroacoustic device accessories. We can supply you directly, and of course our prices will also be competitive. In addition to buzzer,microphone、speaker、Receiver、siren/alarm, etc. are our main supplies.

Product Name	Wholesale high quality SMD electromagnetic buzzer customized

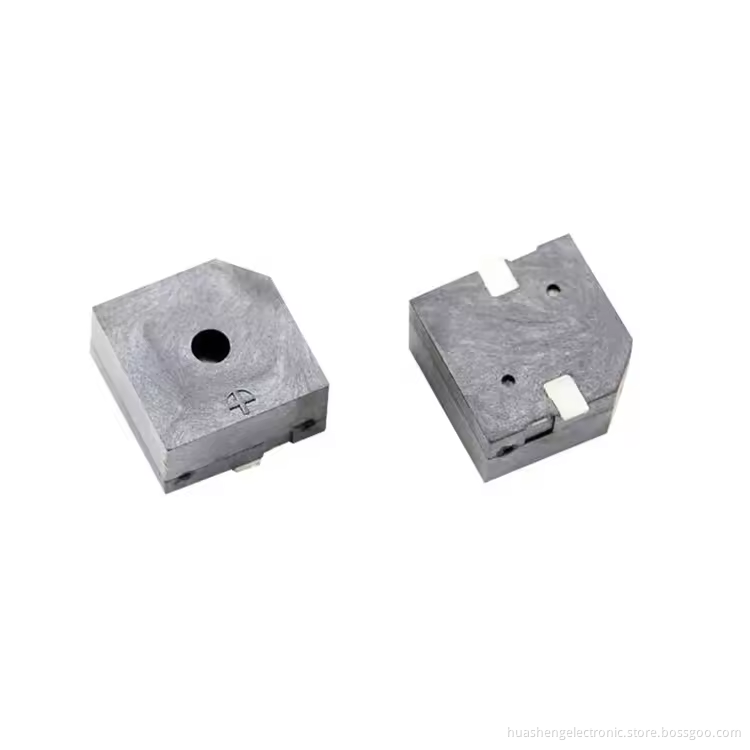

Product picture

Product Features
*Brand	Huasheng
*Part number	LET1370FS-05L-2.4-47-R
*Dimension	13.8136.8mm
*Rated Voltage	5V
*Operating Voltage	3～7V
*Coil Resistance/DC	47+/-6ohm
*Resonant Frequency	2400Hz
*Sound Output at 10cm	Min.90dB
*Current Consumption	Less than 40mA
*Operating Temperature	-40～+80℃
*Storage Temperature	-40～+80℃
*Weight	2g
*Housing Material	LCP

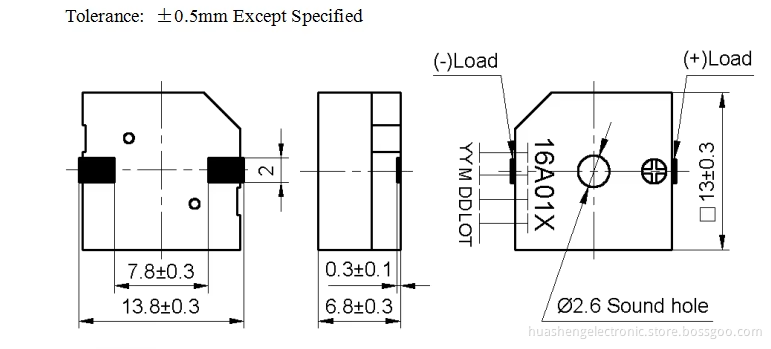

Drawing
