Product details

Our company is a China professional electroacoustic manufacturer factory with 50 years history. in the production of electroacoustic device accessories. We can supply you directly, and of course our prices will also be competitive. In addition to microphone, buzzer、 speaker,、siren/alarm, etc. are our main supplies.

Product Name	cheap price wholesale transducer piezo buzzer

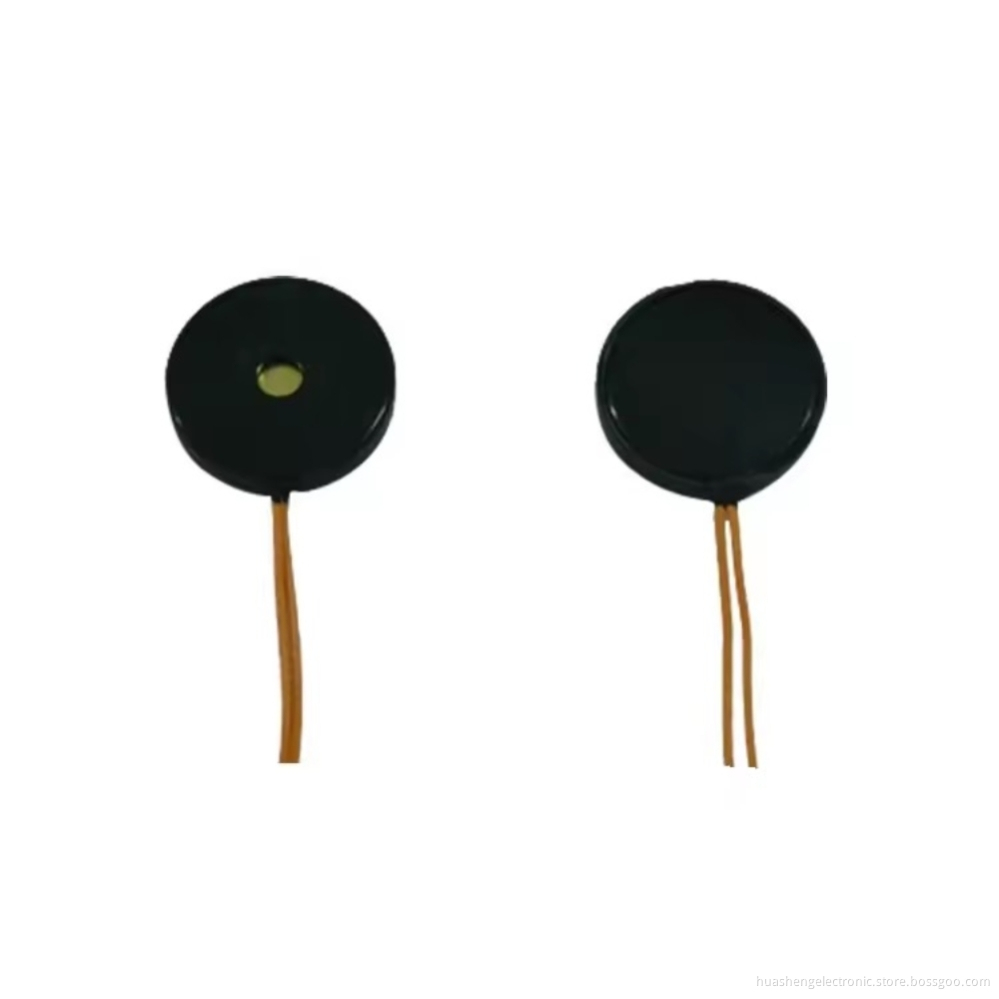

Product picture

Characteristics

No.	Item	Specifications
1	Rated Voltage	3.0 Vo-p
2	Operating Voltage	2.0~4.0 Vo-p
3	Rated Current	Max.100mA ,at 4000Hz 50% duty Square Wave 3.0Vo-p
4	Sound Output at 10cm	Min. 75dB, at 4000Hz 50% duty Square Wave 3.0Vo-p
5	Coil Resistance	12±3Ω
6	Resonant Frequency	4000Hz
7	Operating Temperature	-30℃~+70℃
8	Store Temperature	-40℃~+85℃
9	Net Weight	Approx 0.1g
10	RoHS	Yes

Drawing
