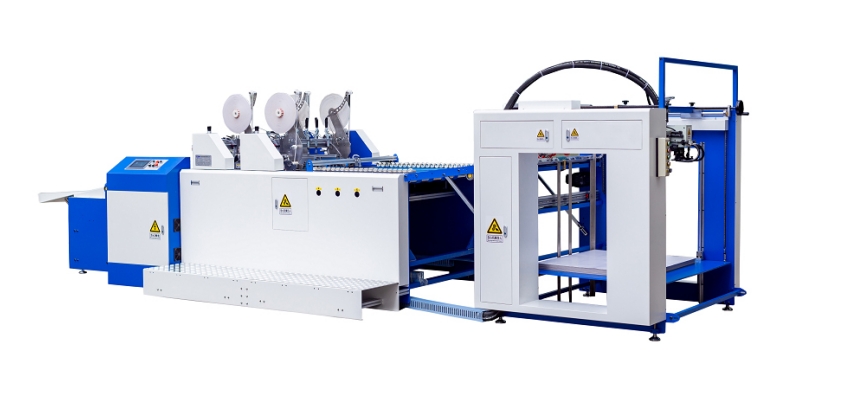

Automatic double-sided tape machine
8 month ago
Automatic double-sided tape machine
|
Material ： |
Paper > 157 g/m², E Floor |
|
Open blank ： |
min. 250 mm x 250 mm |
|
max.700 mm x 700 mm |
|
|
Working width： |
700 mm |
|
Conveyor speed： |
90M/min (actual production speed depends on paper material type) |
|
Tape roll width ： |
5 – 40 mm |
|
Precision： |
+ / -1.5mm (Depending on product box type and double-sided tape material) |
|
Sticking style： |
Longitudinal gluing |
|
Number of installable tape applicators： |
2 Set up double-sided adhesive applicator |
|
Needed air supply ： |
min. 6 bar |
|
Power required： |
5.2 KW(380V AC 3φ 50HZ) |
|
Automatic continuous paper feed |
|
|
Weight： |
About 1800KG |
|
Machine Size ： |
5800*1200*1200mm(L*W*H) |
Detail Introduction

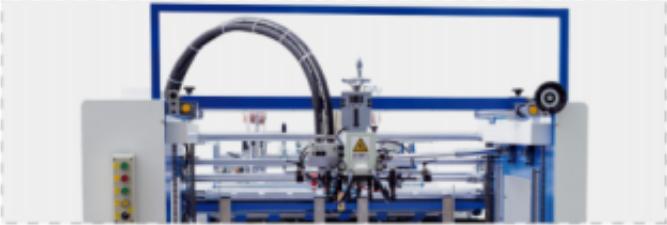

1. Feida paper delivery machine
The printing machine feeder has 12mm thickness stainless steel and height increasing.lt can adjust the papers' space according to the papers size.

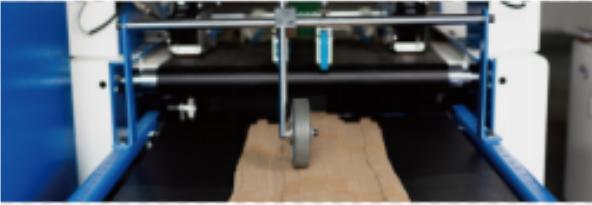

2. The correction positioning part
Double calibration system increases the correction range andmakes it more precision.

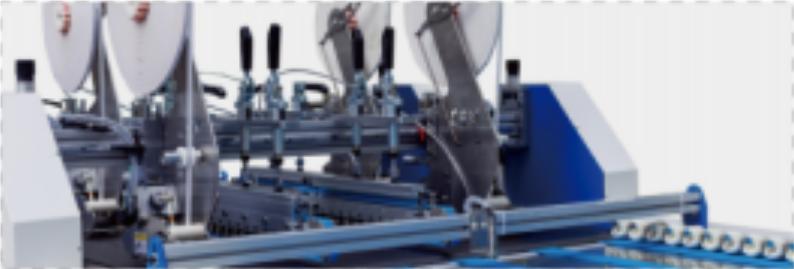

3. Adhesive host department
The applicator equiped with vacuum platform which keeps the paper smooth, The latest patent. servo tape applicator is available for these machines

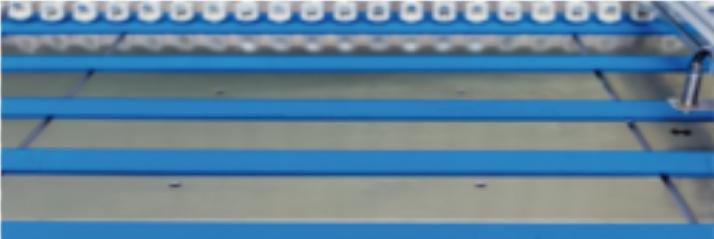

Receive paper
The whole frame makes sure the running platform more stable by anti-seismic and shock absorption

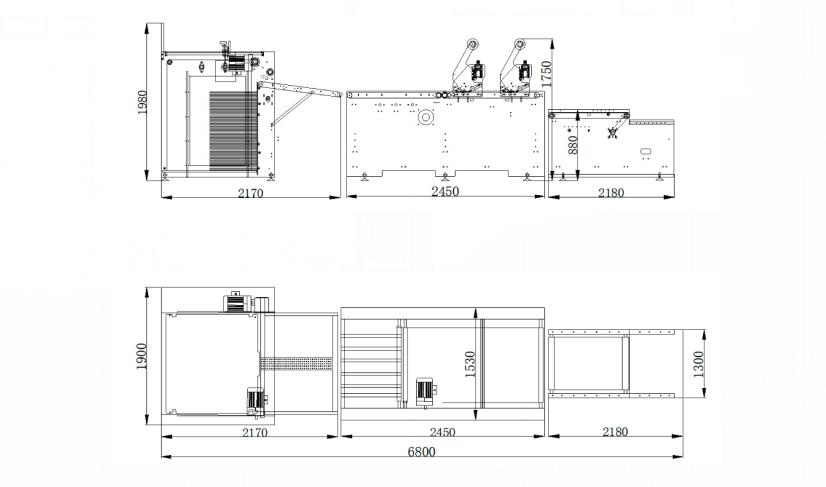

Complete machine plan
