Product details

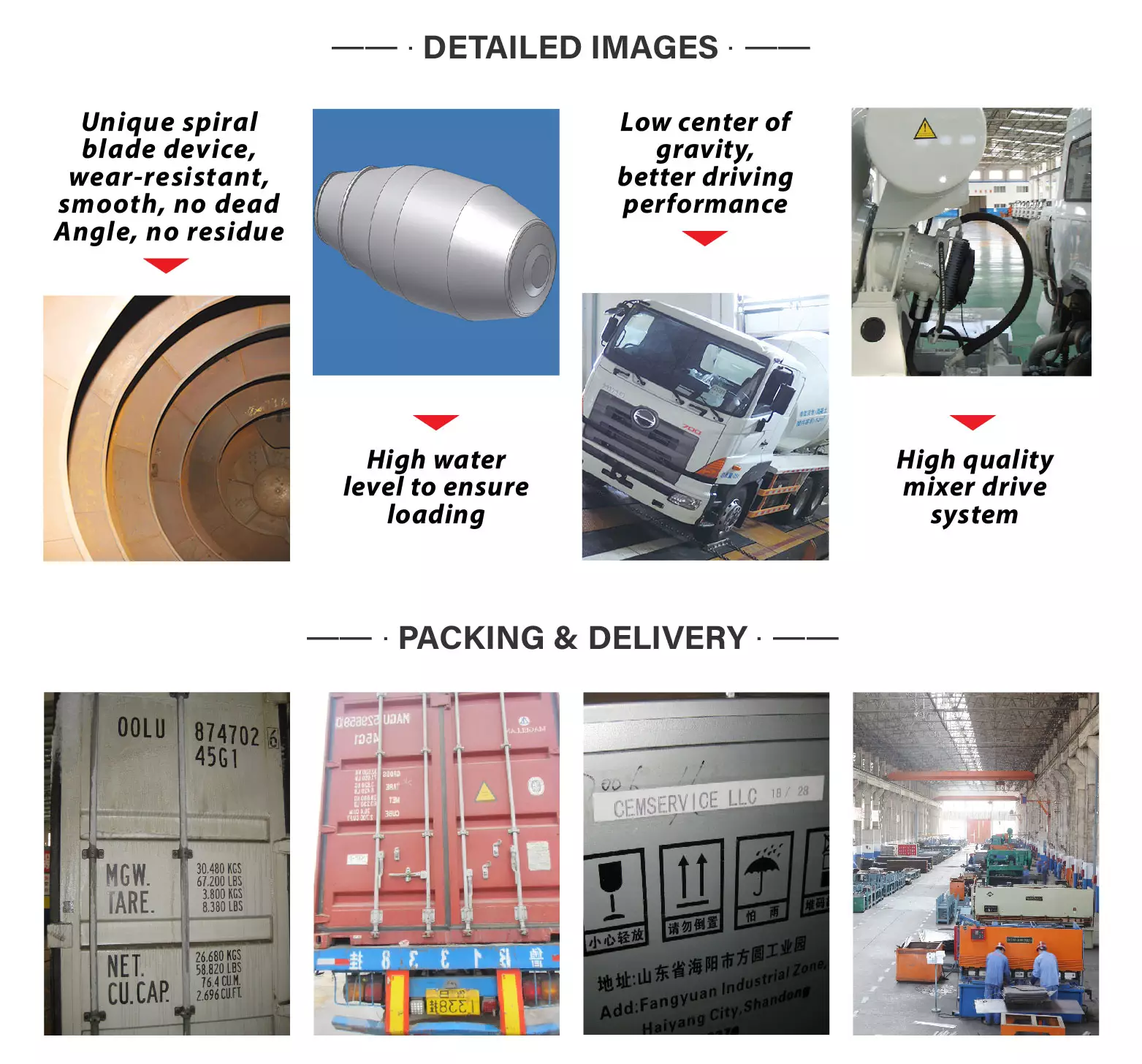

Product features:

High-quality wear-resistant steel guarantees a long service life

Reliable drive components ensure smooth operation.

High loading volume thanks to high water line.

Perfect driving characteristics thanks to a low center of gravity

Weight- optimised truck mixer for maximum payload

Simple and fast cleaning thanks to smooth rear wall surfaces.

1)The product is mainly composed of two kinds of special truck chassis,mixingbarrel,hydraulic drive device,control device,water supply system,rack,feedingdevice,ladder,wheel and so on.

2)In order to improve the service life of products,mixing barrel,blade,rack,inletand outlet hopper and other components are made of high strength and wear-resistant manganese alloy 3)Finish shot blasting to strengthen treatment to ensure the overall quality of painting.



truck

Item

Type

7m3concrete truck mixer

8m3concrete truck mixer

9m3concrete truck mixer

10m3concrete truck mixer

12m3concrete truck mixer

Drum

Geometric volume
m3

12.1

13.8

16.5

17.5

20.5

Effictive agitate volume
m3

7

8

9

10

12

Effictive mixing volume
(m3)

5

6

7.5

8.5

10.5

Inclination angle

15

15

12

11

11

Rotational velocity
r/min

014

Rotation direction  from the rear of truck

Charge in clockwise,discharge in anticlockwise

Vane

Double-screw vane

Discharge Capacity

when the slump is 5cm ≥2m3/min

Remnant

when the slump is 5cm ≤1%

Charge and discharge device

HopperL×W

950 × 1000


mm

1600


(mm)

780

Water supply system

water pump WP24-180B12or WP24-180B12

Hydraulic system



Oil pump


A4VTG71


A4VTG71


A4VTG71


A4VTG90

A4VTG90/32R

Motor

Deutschland Rexthroth
AA2FM63

PLM7
(3in1)

PLM7
(3in1)

PLM9
(3in1)

PLM9
(3in1)

Type of reduction box

Deutschland ZF
P3301

ZF

Chassis

Type of engine/Power

WD615.87/213

WD615.69/247 WD615.87/213

WD615.69/247kW

WD615.69/247kW

WD615.47/273

FYG right hand drive concrete mixer truck mini concrete mixer truck ready mixed concrete mixer truck right hand drive concrete mixer truck

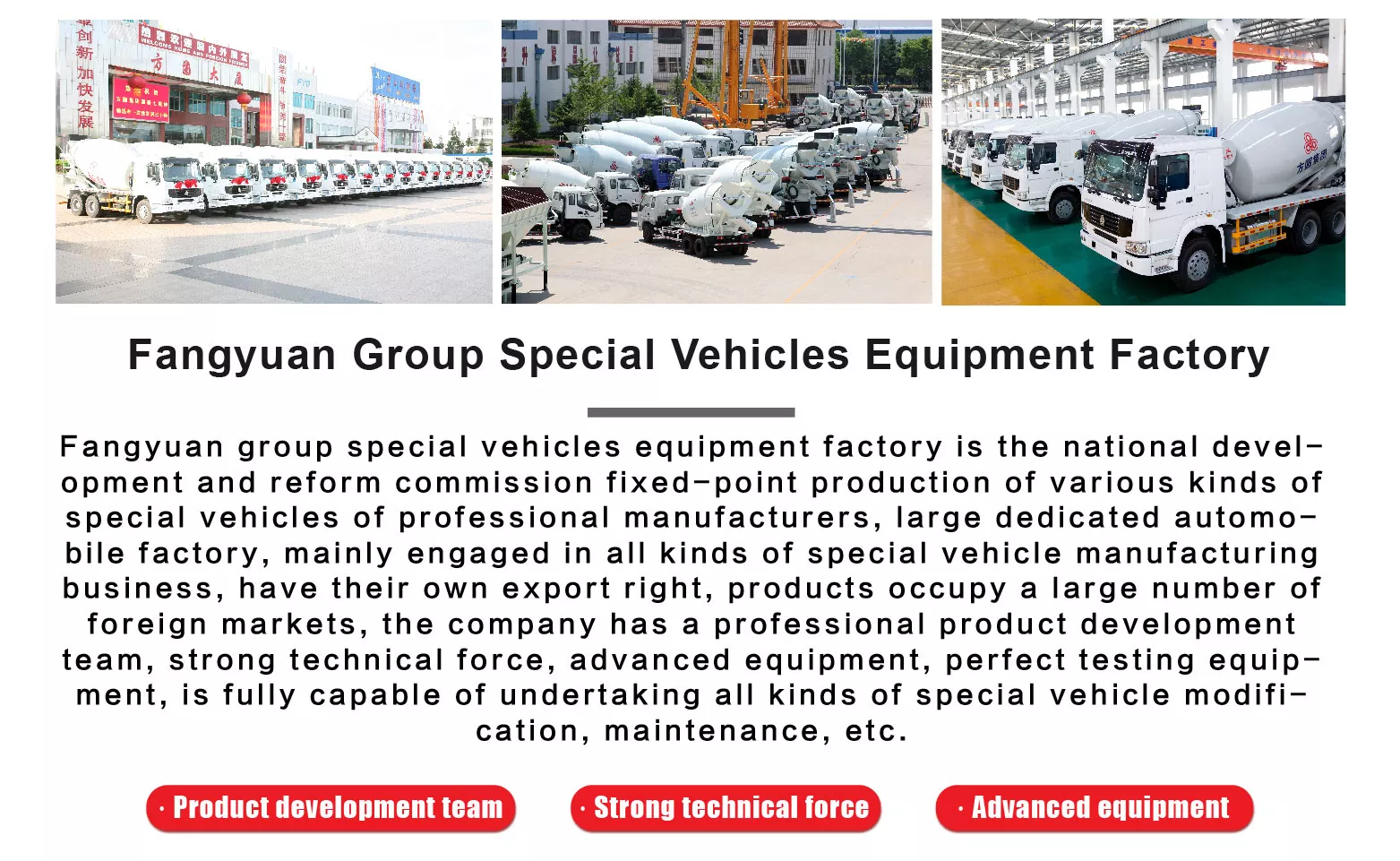

Fangyuan group special vehicles equipment factory is the national devel-opment and reform commission fixed-point production of various kinds ofspecial vehicles of professional manufacturers,large dedicated automo-bile factory,mainly engaged in all kinds of special vehicle manufacturingbusiness,have their own export right,products occupy a large number offoreign markets,the company has a professional product developmentteam,strong technical force,advanced equipment,perfect testing equipment,is fully capable of undertaking all kinds of special vehicle modifi-cation,maintenance,etc.

HTB1ObCSXE_rK1Rjy0Fcq6zEvVXaQ

HTB1mv7VXdjvK1RjSspiq6AEqXXarHTB1GQcUXdfvK1RjSspoq6zfNpXau





Our company is a medium-sized manufacturing enterprise, focusing on construction machinery research and development, manufacturing, sales and services. Founded in 1970 in Haiyang, a coastal city in east China, it is an employee-owned joint-stock company.The number of employees has grown from a dozen at the beginning to nearly 2,000 at present after nearly half a century of development. 60% of the employees have more than 20 years of experience in relevant professional fields. The stable employees team and open corporate culture make the accumulation and inheritance of enterprise knowledge. The company covers an area of 1.8 million square meters, including the construction area of 900,000 square meters, with a large number of detection, cutting, processing molding of the international top equipment.        The product development team is led by senior engineers in the industry, and has a  research and development branch in Germany. Provide customers the personalized and optimized product solutions quickly through the top-ranking software tools combined with the advantages of the international scope. The marketing service network covers the whole world, providing professional services from product consultation, purchase and use throughout the product life cycle.

  Our business scope falls in HZS series concrete mixing plant, JS series concrete mixer,PLD series concrete batching machine,TC series tower crane, SC series construction hoist, WBZ series stabilized soil mixing plant, HBTS series concrete pump,SBS series mortar pump,JZL series electric crawler pile drilling machine,JZB series walking pile drilling machine ,FYG series truck mixer,all kinds of cement silo etc,.
