cold rolled galvanized temperature measuring
3 year ago
Cold rolled galvanized high-accuracy infrared pyrometer
In cold rolled plate, non-ferrous metals processing, induction heating, coating and other low temperature and low emissivity applications. It is very difficult to meaure temperature accurately, especially some cases in which the measured object is very bright and the reflection is very strong.
To measure such low temperature, this pyrometer use special wavelength: (1.45～2.1) μm, a dirty inspection glass or steam, smoke and dust in the visual field of the pyrometer lead to a degradation of the signal, user need to keep the lens and environemnt clean.
Features
Measuring range：150℃～800℃
Detector：InGaAs
Distance coefficients：100：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Technical Parameters
Standard：0.45m adjustable to infinity，
Near focus distance：0.25m～0.6m
Group1: Multiple analog outputs 16bit（4mA～20mA, 0mA～20mA, 0V～5V, 0V～10V optional), output resolution 16bit, accurate to 0.1℃, maximum current loop output load 600Ω，maximum current output load 10mA
Alarms output: upper or lower temperature limit alarm；PhotoMOS relay (infinite service life) on resistance≤1Ω, maximum allowed voltage: AC42V or DC60V; maximum allowed current: 100mA; response time: 2ms
RS485 output，with functions of parameters modification, data logging and inquiry
Model
MARS-G-1508
Measuring Range
150℃～800℃
Detector
InGaAs
Wavelength
(1.45～2.1) μm
Applications
Non-ferrous metal processing, Induction heating, coating
Distance coefficients
100：1
Focal length
Accuracy
±0.5%T℃（T is measured temperature）
Resolution
0.1℃
Repeat Accuracy
±2℃
Calibration coefficient
0.100～1.000, Adjustable in 0.001 increments
Response time
Fasted: 5ms，adjustable in 5ms-99.99s
Output
Display mode
Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming
Aiming method
Visual green spot (default) or eyepiece aiming, alternative
IP Rating
IP65
Applications

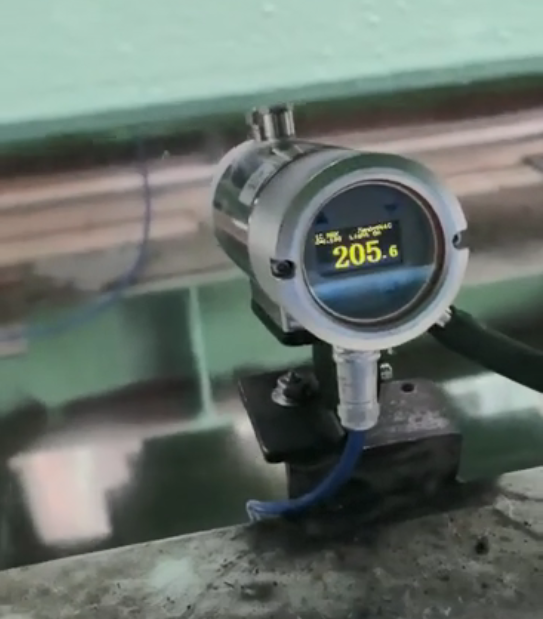

Cold rolled galvanized： low temperature (uppper limit 480℃) white and reflective
