1.MACHINE OVERVIEW

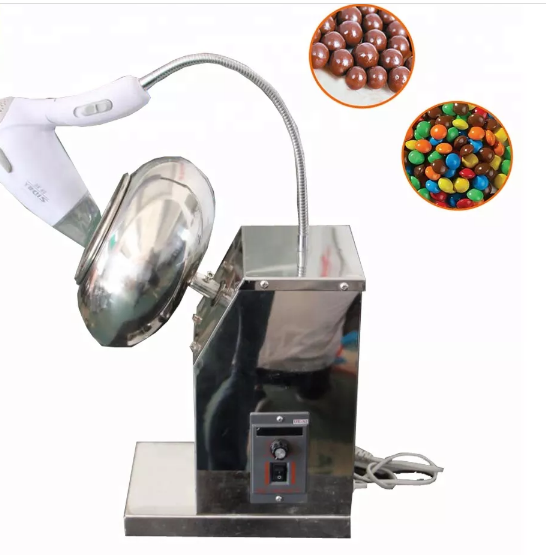

This machine used to sugarcoating the tablets and pills for pharmaceutical and food industries.it's also used for rolling and heating beans and edible nuts or seeds.As its features,the sugarcoating round pot is elevated,the heater such as gas electrical heater can places directly under the pot.A separated blower with electrical heater is provided with the machine.The pipe of the blower stretches into the pot for heating of cooling purpose.The thermal capacity can be adjusted
2.MAIN APPLICATION
1.Film coating for tablet ,pills etc in pharmaceutical industrial 2.Sugar ,chocolate coating for nuts,fruit ,popcorn etc in food industrial 3.Powder ,paint,color coating in chemical industrial 4.Polishing and shinning and rolling for ball shape end product,For example:pearl ball,Gums,candies.
3.FEATURES
Able to be matched with frequency controller
Able to be matched with dust-removal system
It can be made to totally-enclosed type,served with airbrush system,and meets the GMP requirements
4.TECHNICAL PARAMETER
| Model | BTJ200 | BTJ300 | BTJ400 | BTJ600 | BTJ800 | BTJ1000 | BTJ1250 |
| Sugar pot diameter(mm) | 200 | 300 | 400 | 600 | 800 | 1000 | 1250 |
| Capacity(kg/h) | 1 | 2 | 5 | 15 | 30-50 | 50-70 | 80-150 |
| Pan speed(r/min) | 46 | 46 | 46 | 36 | 36 | 32 | 28 |
| Motor power(kw) | 0.37 | 0.37 | 0.37 | 0.75 | 1.1 | 1.1 | 3 |
| Fan power(kw) | 0.075 | 0.075 | 0.075 | 0.075 | 1.1 | 1.1 | 3 |
| Heating power(kw） | 0.75 | 0.75 | 0.75 | 1 | 2 | 2 | 3 |
| Size(mm) | 500x350x700 | 500x350x700 | 550x400x800 | 800x600x900 | 1000x800x1430 | 1100x1000x1560 | 1230x1200x1820 |
| Weight(kg) | 36 | 37 | 38 | 85 | 205 | 220 | 350 |
Remarks
1.Delivery；10 working days in factory
2.Payment:30% advance,70% before shipping by TT/Paypal
3.If u feel interested in this coating machine or spices pulverizer or powder mixer or granulator or screw conveyor or capsule filling machine or capsule polishing machine or capsule counting machine or tablet press etc that we produced someday,u can tell me your specific requirement so that i can better recommend more suitable for your demands machine,what do u think
