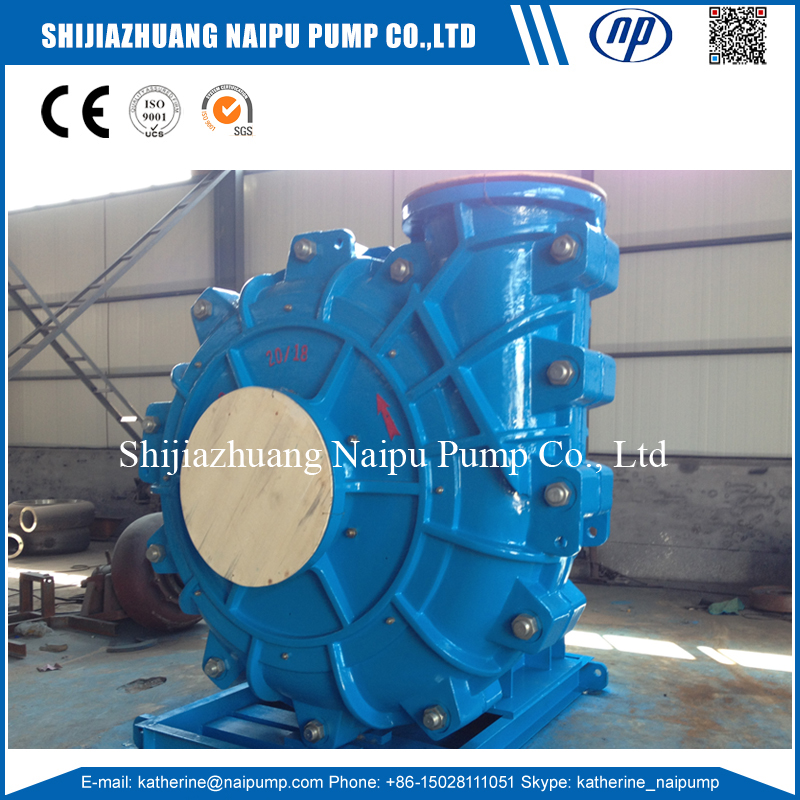

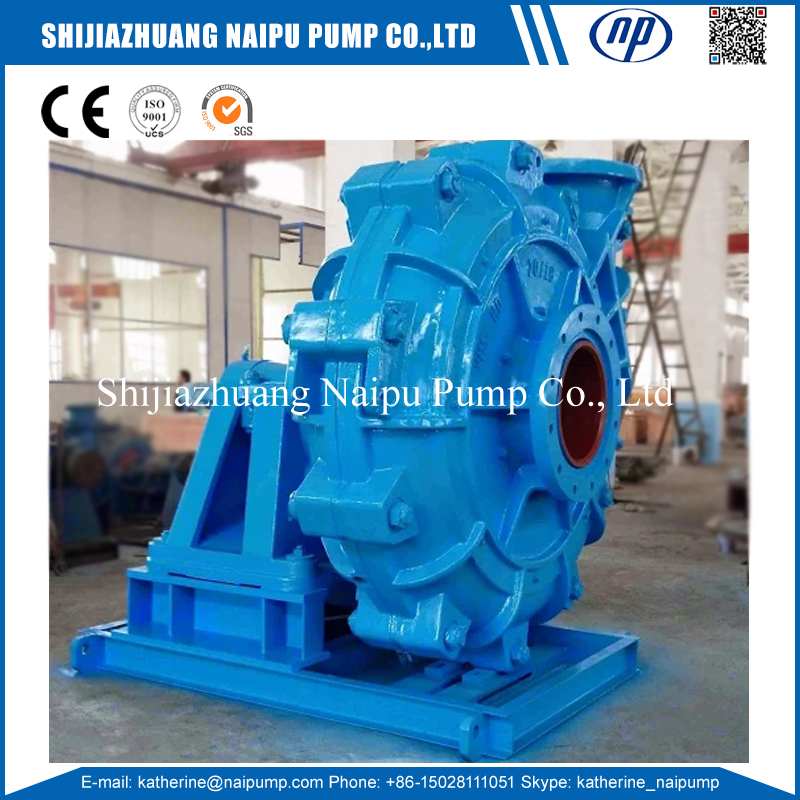

20/18 TUAH Heavy 18 inches Mining Pump
18 Inches Slurry Pump Part code number: U18032D21, U18013D21, GAM18147A05, U18110A05, U18083A05, U18018R55, U18043R55, U18083R55, U18041R55...
Heavy Mining Solid Pump A wide choice of replaceable abrasion resistant metal or moulded elastomer casing liners and Impellers, which are all interchangeable within a common casing assembly. 20/18TU-AH Heavy Slurry Pump, AH Metal Liner Horizontal Slurry Pump, Replaceable Wearing Parts Pump, Heavy Duty Mining Pump, High Flow Pump.
Horizontal Slurry Pump / NP-AH Horizontal Slurry Pump/ AH Slurry Pump Construction
18 Inches Slurry Pump/ Heavy Mining Solid Pump / 20x18 Slurry Pump
Index
Value
Products Name
20/18 TUAH Heavy 18 inches Mining Pump
Inlet Dia (mm)
500
Outlet Dia (mm)
450
Flow (m3/h)
2520-5400
Head (m)
13-57
Max Power(kw)
1200
Material
High Chrome A05
Drive Type
CV / ZVz / CRz/ DCz
Drive Engine
Motor or Diesel
Seal Type
Packing Seal , Expeller Seal, Mechanical Seal
Payment Term
TT , LC, or Negotiate
Original
ShiJiaZhuang , Hebei China
Supply Range
Slurry Pump , Motor , Base Plate,Guard, v-belt , Pulley
Weight
14000 kg
20/18 Slurry Pump Performancce Parameters
|
Type |
Max Power (Kw) |
Clear Water Performance |
Impeller |
|||||
|
|
|
Capacity /m³/hr |
Head /m |
Speed/rpm |
Max
Efficiency |
NPSH /m |
Nos |
Diameter |
|
1.5/1 B-AH |
15 |
12.6-28.8 |
6-68 |
1200-3800 |
40 |
2-4 |
5 |
152 |
|
2/1.5 B-AH |
15 |
32.4-72 |
6-58 |
1200-3200 |
45 |
3.5-8 |
5 |
184 |
|
3/2 C-AH |
30 |
39.6-86.4 |
12-64 |
1300-2700 |
55 |
4-6 |
5 |
214 |
|
4/3 C-AH |
30 |
86.4-198 |
9-52 |
1000-2200 |
71 |
4-6 |
5 |
245 |
|
6/4 D-AH |
60 |
162-360 |
12-56 |
800-1550 |
65 |
5-8 |
5 |
365 |
|
8/6 E-AH |
300 |
360-828 |
10-61 |
500-1140 |
72 |
2-9 |
5 |
510 |
|
10/8 F-AH |
560 |
612-1368 |
11-61 |
400-850 |
71 |
4-10 |
5 |
686 |
|
12/10 ST-AH |
560 |
936-1980 |
7-68 |
300-800 |
82 |
6 |
5 |
762 |
|
14/12 ST-AH |
560 |
1260-2772 |
13-63 |
300-600 |
77 |
3-10 |
5 |
965 |
|
16/14 TU-AH |
1200 |
1368-3060 |
11-63 |
250-550 |
79 |
4-10 |
5 |
1067 |
|
20/18 TU-AH |
1200 |
2520-5400 |
13-57 |
200-400 |
85 |
5-10 |
5 |
1370 |
