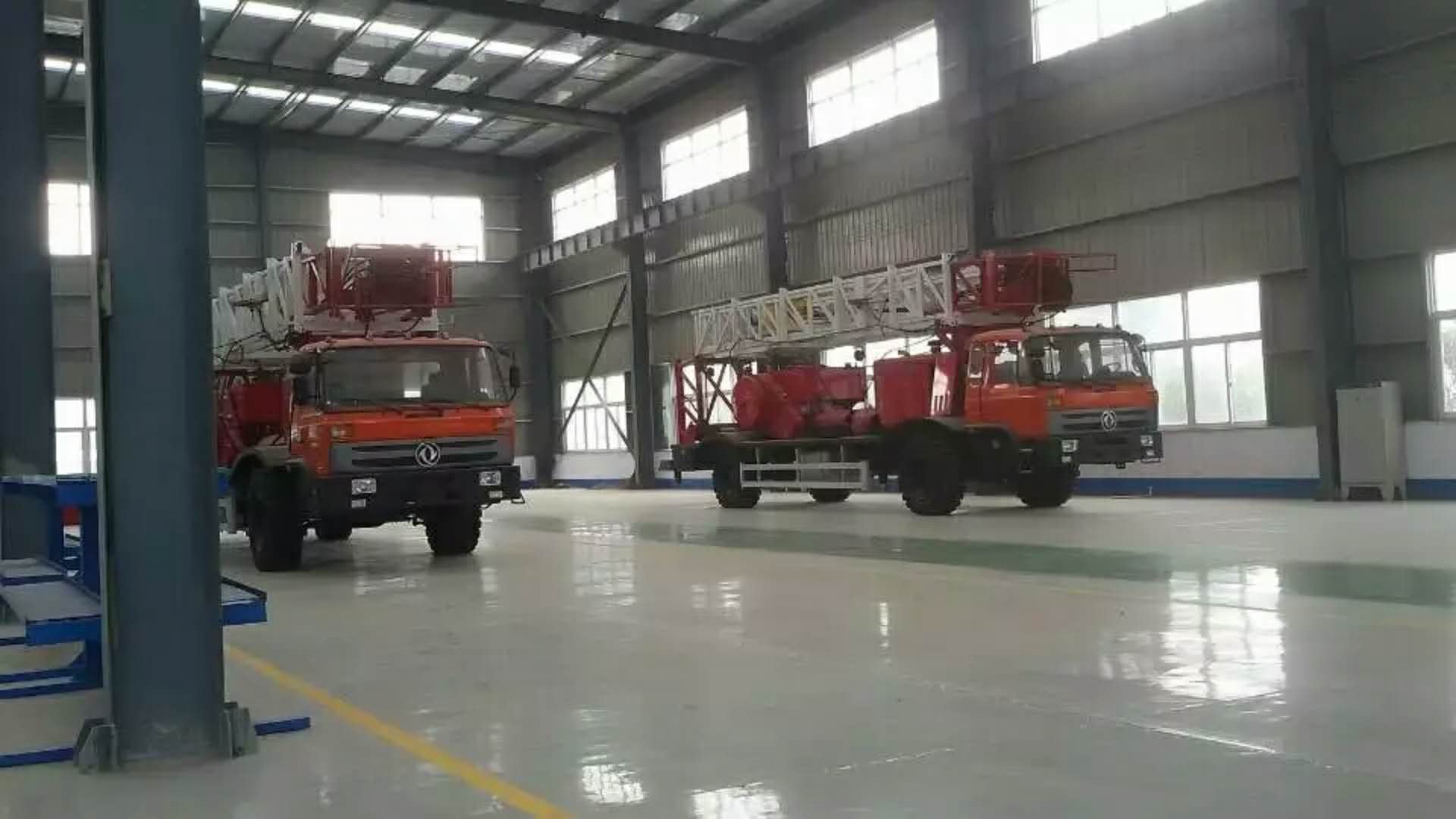

API XJ 550 Workover Rig
|
NO |
Item | Specification | Description |
| A:Main Description | |||
| A1 | Workover depth | 3200m(2-7/8″) | |
| Nominal workover depth | 2000m(2-7/8″) | ||
| Hook load rating | 400kN | ||
| Max. hook load | 675kN | ||
| Rated power | 175KW | ||
| Working Height | 21m | ||
| Hoisting System | 3×4 | ||
| Wire Line Dia | Dia 22mm | ||
| B:Main Truck | |||
| B1 |
Chasis Description |
Frame girder is made of 16 mn steel plate compound special reinforced beam, the front has drag traction ring, respectively. Axle choose wide-track, heavy axle load. | |
| Drive Type | 6 × 4 | ||
|
Min. clearance(full load) |
285mm | ||
|
Max. climbing degree |
32% | ||
| Max. road speed | 78km/h | ||
| B4 | Subframe | ||
| B2 |
Power Unit |
Engine model | WP10.290 |
| Rated power | 213KW | ||
| Max.Torque | 1194.0/1400 (N-m)/(rpm) | ||
| B3 | Hydraulic Transfer Case | Model | 9JS119 |
| B4 | Mast | Hoisting system | 3×4 |
| Design per API SPEC 4F | |||
| Max.static load | 700kN | ||
| Working height | 21m | ||
| Angle | 5.5°/4.5° | ||
| Wind resistance capacity | 110km/h | ||
| B5 | Crown block | Fast rope wheel diameter | Dia 600mm |
| Rope wheel diameter | Dia 600mm | ||
| Max.load | 800kN | ||
| Wire Line Dia | Dia 22mm | ||
| B6 |
JC12 Drawwork |
Model | JC12 |
| Drum dia | Diameter 360mm 7/8″ | ||
| Brake drum diameter | Diameter 970mm | ||
| Drum width | 260mm | ||
| Wire Line Dia | Diameter 22mm | ||
| Max. speed | 15m/s | ||
| Clutch | |||
| Type | |||
| Model | ATD-224Hpush plate clutch | ||
| Brake band angle | 340° | ||
| B7 |
Angle gear box |
Model | JX70A-00 |
| Max.input torque | 7000N.m | ||
| Max.input rotary speed | 2100rpm | ||
| B8 |
Traveling Hook |
Model | YG - 70 |
| Max.load | 700kN | ||
| Sheave no | 3 piece | ||
| Hook turn angle | 360° | ||
| Wire Line Dia | Dia 22 mm | ||
| B9 | Line Dia | Main line | Dia 22× 180m 6×19S-Dia 22-FC-EIPS |
| Wind rope | Dia 22 16m | ||
| Small winch wire rope | Dia 13 60m | ||
| Manufacture | Xianyang | ||
| B10 | Hydraulic Winch | Using wire rope diameter | 13mm |
| Max. pull force | 30kN | ||
| B11 |
Hydraulic System |
Hydraulic system used in vehicle leveling, landing and telescopic mast, the use of small hydraulic winch, and for workover hydraulic clamp oil supply |
|
| B12 | Pump | Model | CBG63 |
| Oil pump displacement | 113.4L/1800r/min | ||
| Pressure | 16MPa | ||
| B13 |
Pneumatic system |
Pneumatic system includes air supply system, pneumatic system, chassis pneumatic system of hoist, driller control box, etc. Air supply system mainly includes air compressor, pressure reducing valve, dryer, air cylinder, antifreeze, etc. To the supply of clean compressed air. Main drum hoist of pneumatic control valve is installed on the driller control box that is used to control the main roller clutch pneumatic flux to snuff out. The lateral driller control box is placed in the derrick. Control box equipped with main cylinder control valve, winch emergency braking, crash-proof reset, such as engine throttle control valve. Chassis pneumatic control in driving indoor, can control the engine start, flameout, transmission shift, vehicle braking and parking brake. Air compressor:0.500m |
|
| B14 |
Electrical system |
Working voltage 24 v electrical system, mainly used for all kinds of light truck chassis system and diesel engine starting, etc. With derrick lights (explosion-proof xenon lamp only 3, 24 v) |
|
| B15 | Low pressure searchlight | ||
| B16 |
Operation control syste |
Mainly include the operation valves and meters | |
