Product details

DC geared motors are relatively common micro geared motors in the electromechanical industry, but at present, there is not much knowledge about the performance and materials of geared motors and how to choose materials for manufacturers. It is not a matter of one or two days, mainly from Considering the nature of the magnetic field, consider the directionality and uniformity of the magnetic permeability of the various gear reduction motor cores, and consider the magnetic density of the core of the geared motor, considering the core loss and other aspects.

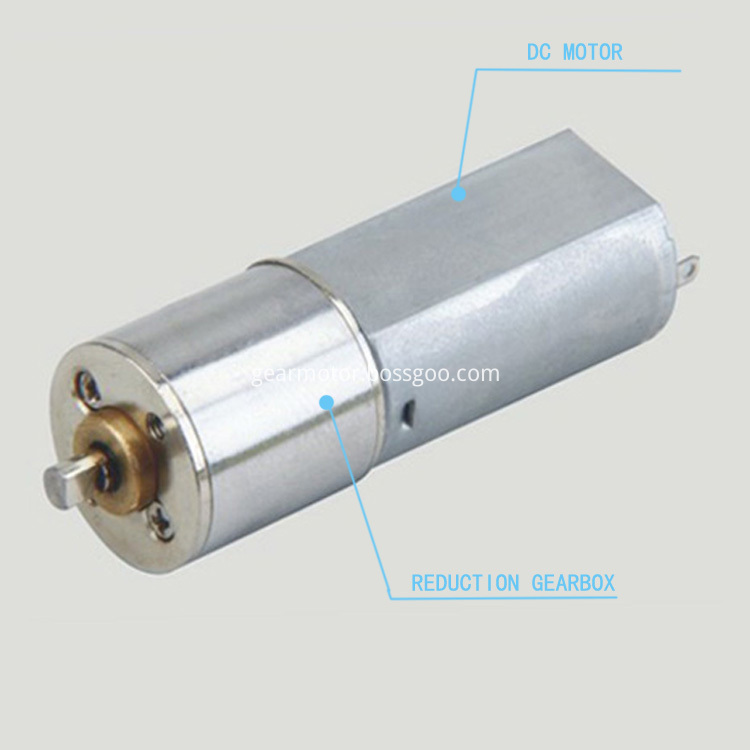

16GA050 permanent magnet 12V dc gear motor Product Description:


Parameters in a certain range can be customized according to customer's demand


permanent magnet dc motor Voltage range: 3~12 V    (eg:1.5V 3V 4.5V 6V 12V)

12V gear motor Speed range: 32~2000 RPM

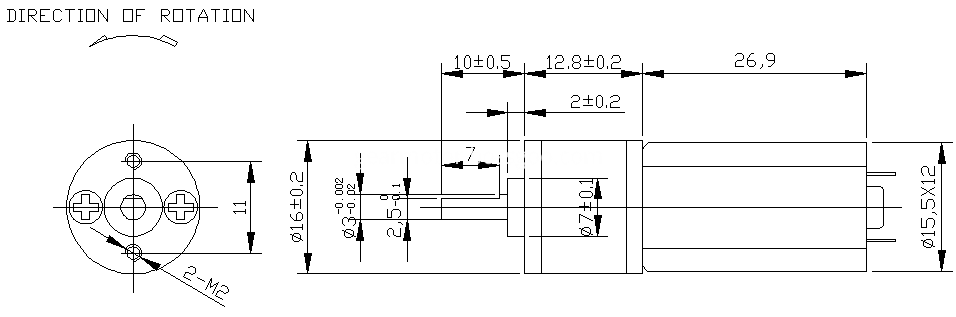

050 dc gear motor dimensions:16 x (26.9+L)mm



We have a lot of different reduction ratio,Tie-in and different reduction ratio of the reducer, deceleration electric chance to output different rotational speed,In addition to change the speed reduction ratio can change the gear motor, you can change the speed of the motor.

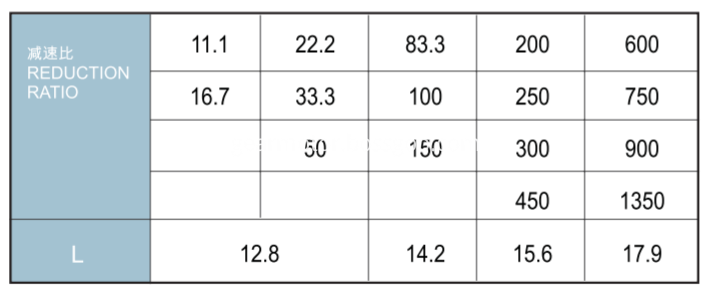

Reduction ratio table :(The "L" is Gear length ,the unit is "mm")

16mmn 050 gear motor

The following is one of the parameters:

Parameters of the model





VOL TAGE

NO LOAD

AT MAXIMUM

STARTING

NOMINAL(V)

SPEED

CURRENT

SPEEP



CURRENT

TOROUE

OUTPUT

TOROUE

CURRENT

r/min

A

r/min

A

mN.m

g.cm

W

mN.m

kg.cm

A

16GA050-72

12

200

0.085

160

0.300

44.1

450

0.74

117.6

1.2

0.85

16GA050-100

12

120

0.065

98

0.210

53.9

550

0.55

147

1.5

0.65

16GA050-200

12

60

0.080

50

0.160

63.7

650

0.33

343

3.5

0.65

16GA050-100

12

186

0.120

150

0.480

78.4

800

1.23

313.6

3.2

0.35

16GA050-250

12

32

0.060

24

0.140

88.2

900

0.22

294

3.0

0.45

16GA050-100

12

120

0.065

95

0.210

53.9

550

0.54

147

1.5

0.65

16GA050-24

6.0

400

0.090

320

0.250

14.7

150

0.49

73.5

0.75

0.9

16GA050-37.5

12

320

0.070

255

0.210

29.4

300

0.79

127.4

1.3

0.6

16GA050-86

12

150

0.080

120

0.200

58.5

600

0.74

242.4

2.8

0.7

16GA050-72

12

200

0.085

160

0.300

44.1

450

0.74

117.6

1.2

0.85

16GA050-100

12

120

0.065

98

0.210

53.9

550

0.55

147

1.5

0.65

























 Gear Motor


Our engineering department can provide special designs for different shaft length .

16mmn 050 gear motor




Packaging & Delivery:



Packaging Detail: standard export carton with inner foam in case of being damaged.

 Delivery Detail: 20 days after receiving the order and advanced payment of 30%


Gear Motor




Company production workshop:

We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.


Intelligent lock Gear Motor

Intelligent lock Gear Motor

Intelligent lock Gear Motor


We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.


As long as you put forward demand, we can recommend suitable motor products for you, welcome to consult!
