For a long time, due to technical limitations, Micro Motor manufacturers in China focus on low-end market, resulting in the domestic market more and more crowded, but there is competition there will be progress, along with domestic manufacturers a fight is one of China's Micro Motor market gradually to the field in the end, this also means that had dominated the mid-market is bound to be impacted by the large Japanese manufacturers, its market share is also true that is decreasing year by year.
RF1220 3.7V 16000rpm low torque micro DC motor Product Description:
3.7v Micro DC Motor Speed range: 5000~30000 RPM

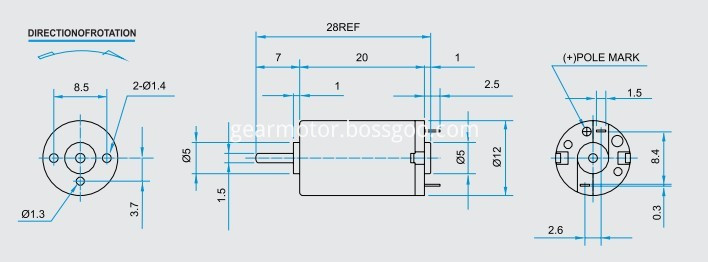

RF1220 Micro DC Motor Overall dimensions:12.0 x 20mm
The following is one of the parameters about the Mini Electric Motor:
Parameters of the model
VOL TAGE
NO LOAD
AT MAXIMUM
STARTING
NOMINAL(V)
SPEED
CURRENT
SPEEP
CURRENT
TOROUE
OUTPUT
CURRENT
r/min
mA
r/min
mA
mN.m
g.cm
W
mA
1220-11140
3.0
14000
65
11000
180
0.196
2.0
0.23
670
1220-07280
5.0
11500
45
8000
120
0.245
2.5
0.20
250
1220-1746
1.5
18500
220
13000
550
0.196
2.0
0.26
1600
1220-11140
4.5
20000
100
17200
200
0.196
2.0
0.35
950
1220-09190
4.0
14000
65
11000
160
0.196
2.0
0.22
480
1220-06350
1.5
2200
25
1350
35
0.049
0.5
0.01
60
1220-07280
6.0
13500
50
10500
100
0.196
2.0
0.21
300
1220-10160
3.0
12000
70
9200
160
0.196
2.0
0.21
500
1220-12125
3.7
9800
50
8400
110
0.196
2.0
0.17
620
1220-09185
3.0
10000
70
7000
165
0.196
2.0
0.14
380
1220-12125
3.0
18000
120
14500
280
0.196
2.0
0.30
1100
Our engineering department can provide special designs for different shaft length .
RF1220 DC MOTOR internal structure:

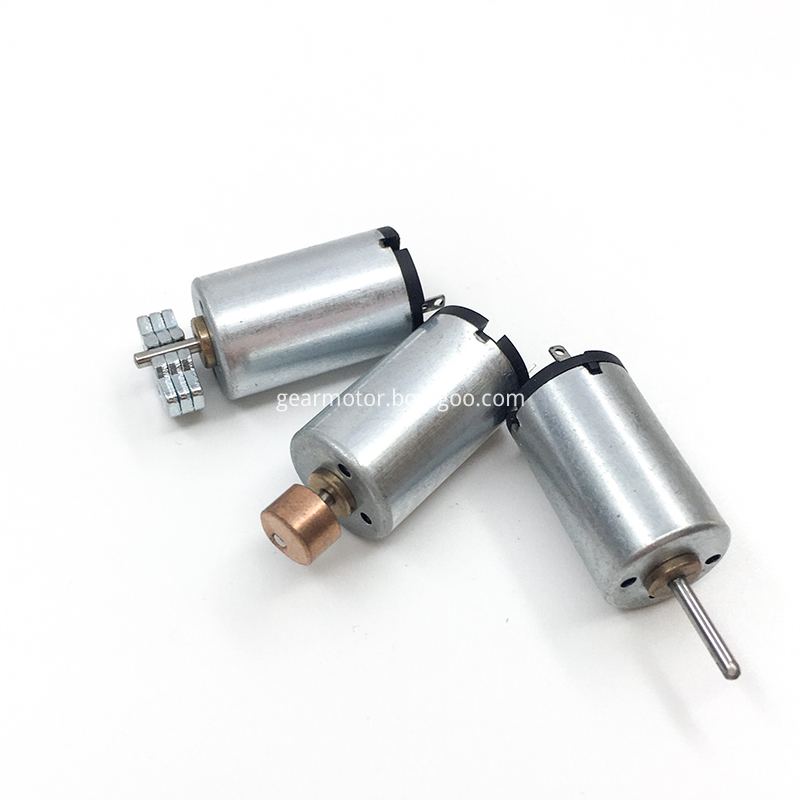

RF1220 DC MOTOR can be combined with vibrating head :
Packaging & Delivery:
Packaging Detail: standard export carton with inner foam in case of being damaged.
Delivery Detail: 20 days after receiving the order and advanced payment of 30%
Company production workshop:
We will test each motor, to ensure that customers receive qualified motor. Mechanization of production to realize full-automatic, further improve the production efficiency and stable product quality.
We have 20 years of experience in design research and development,Products in strict accordance with the standard production in Japan, "the quality first, customer supreme" is our management policy.
