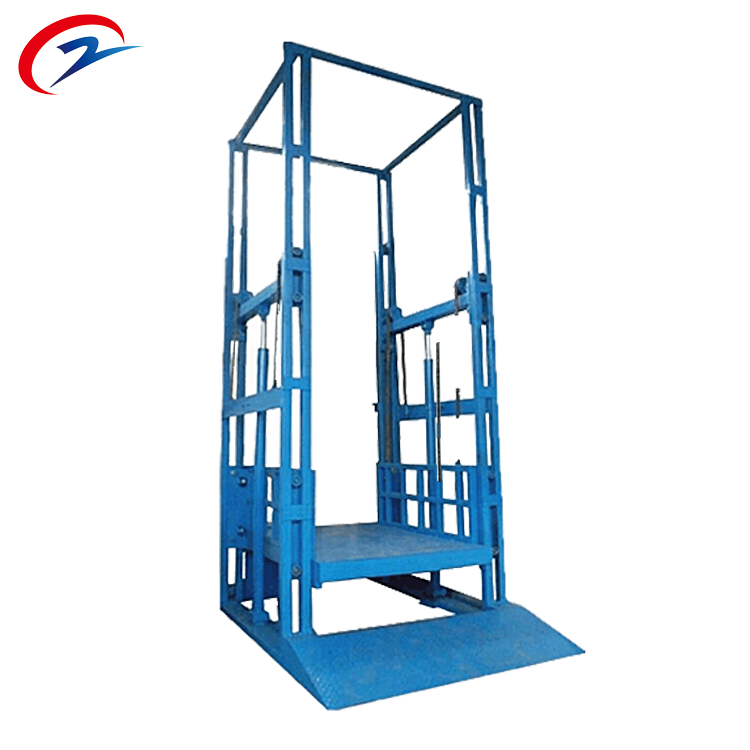

Single Guide Rail Cargo Lift
Heavy Duty Guide Rail Cargo Lift ，Guide Rail Cargo Lift，is a hydraulic elevating equipment used to transport freight. The hydraulic cylinder is the main source of power. The sturdy chain and wire rope drive provide complete machinery safety. To meet your needs, you may adjust the platform's size, lifting height, and weight capacity. Zhongcan Hydraulic Platform Lift is widely used to transport pallets or other objects between floors of a building or warehouse. In multilevel structures, Single Guide Rail Cargo Lift provides rapid, efficient, useful, and secure access to basements, mezzanines, and any levels. storage both indoors and outside. Two trip switch units are installed in the highest position as a backup.
|
Model |
Loading Capacity |
Lifting height |
Min.height |
Table size |
Power |
|
ZCL0.5-4.5 |
500kg |
4500mm |
150mm |
2000*1500mm |
2.2kw |
|
ZCL1.0-4.5 |
1000kg |
4500mm |
150mm |
2000*1500mm |
3kw |
|
ZCL2.0-4.5 |
2000kg |
4500mm |
150mm |
2000*1500mm |
3kw |
|
ZCL3.0-4.5 |
3000kg |
4500mm |
160mm |
2000*1500mm |
3kw |
|
ZCL0.5-7.5 |
500kg |
7500mm |
150mm |
1200*1200mm |
1.5kw |
| ZCL1.0-7.5 |
1000kg |
7500mm |
150mm |
1800*1400mm |
2.2kw |
|
ZCL2.0-7.5 |
2000kg |
7500mm |
150mm |
2000*1500mm |
2.2kw |
|
ZCL3.0-7.5 |
3000kg |
7500mm |
160mm |
2000*1600mm |
3kw |
|
ZCL1.0-10.5 |
1000kg |
10500mm |
150mm |
1800*1400mm |
2.2kw |
