Manual edge dock leveler
3 year ago

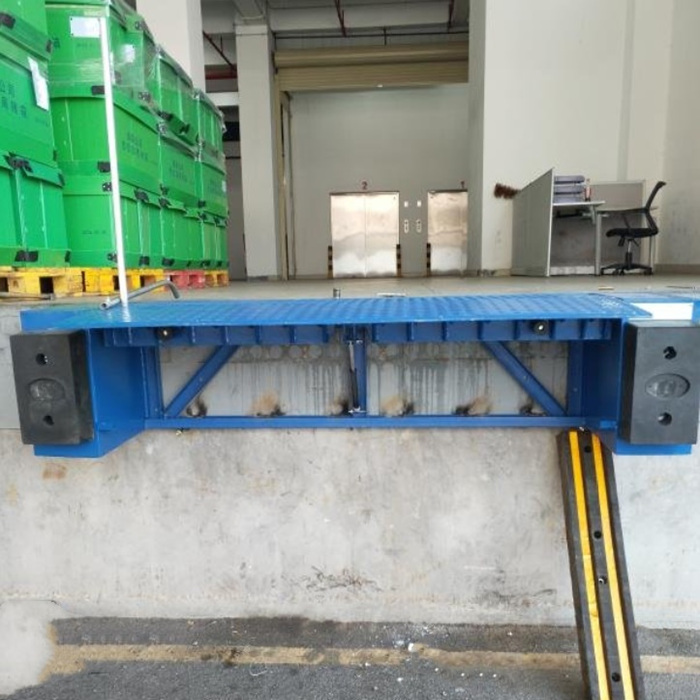

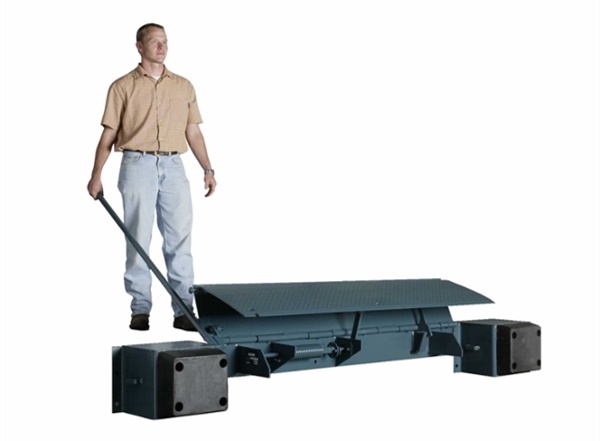

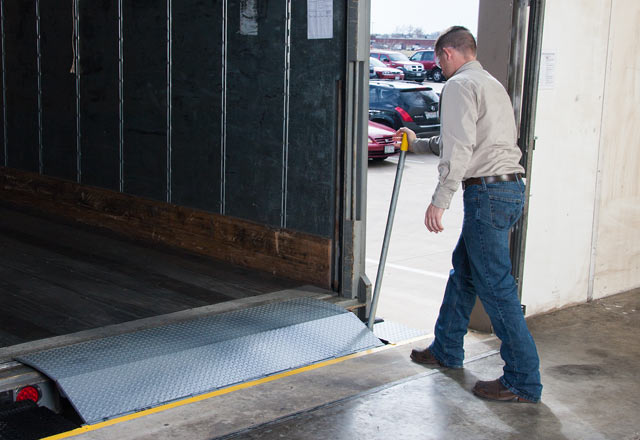

Manual edge dock leveler is a kind of simple and economic loading dock levelers used in warehouse. To install a regular hydraulic dock leveler, you need make a concrete pit or cave to place the dock leveler into it. Such dock leveler pits need be prepared while building the warehouse. So, for some existing warehouses, there is no such pit and it is difficult to make it because the warehouse floor is already finished. In such situation, if you want to install dock levelers to improve your loading job efficiency, it will be a solution to install manual edge dock levelers. It can be directly fixed onto the loading dock platform from outside with expansion bolts or welding with embedding bolts or anchors. It is very easy and quick to finish the installation of a manual edge dock leveler. It is suggested for loading goods with pallet trucks, carts or trolley.
 |
 |
Corrugated platform and lip plate
Rubber dock bumper at two sides

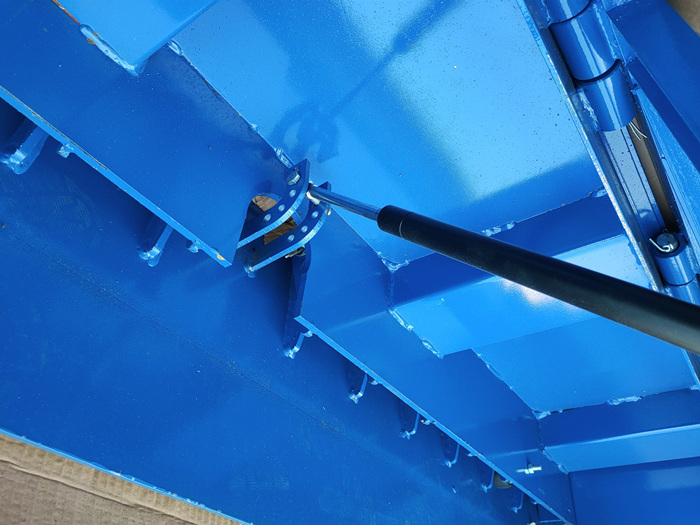

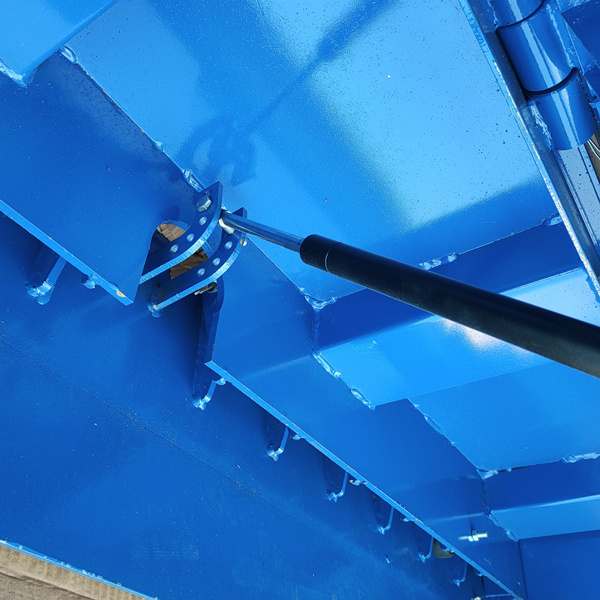

Air cylinder to lift up front lip
Reinforcing ribs under platform and lip
| ITEM | DATA | REFERENCE PHOTOS |
| Size |
Standard length: 2000mm Customized length according to your need. |
|
| Loading Capacity |
Load capacity: 9000kg (20000lbs) |
|
|
Lifting Device |
Air pump cylinder. Industrial grade with long work life cycles. It can make it easy to manually lift up manual edge dock leveler platform and front lip. |
|
| Platform |
1. Surface sheet:6mm-8mm thick according to loading capacity; 2. Whole-piece steel sheet, rather than welded joined sheet like competitors, with much higher strength and work life; 3. Underneath support: high-density steel tube or C-channel to support the surface sheet.; 4. Surface treatment: blasting and powder coating, with high rust proof performance. Special embossed treatment, to make it antiskidding and improve the safety of forklifts passing. |
|
| Front Lip |
1. Material: 12-14mm thick steel sheet; 2. Surface treatment: blasting and powder coating. Special embossed treatment, to make it antiskidding and improve the safety of forklifts passing. |
|
| Dock Bumper |
1. One pair for each dock leveler;
2. Wear-proof high-strength rubber material; 3. To be fixed onto side support box beforehand. |
|
| Painting color | Blue, Dark Grey, Black, Green, or customized |

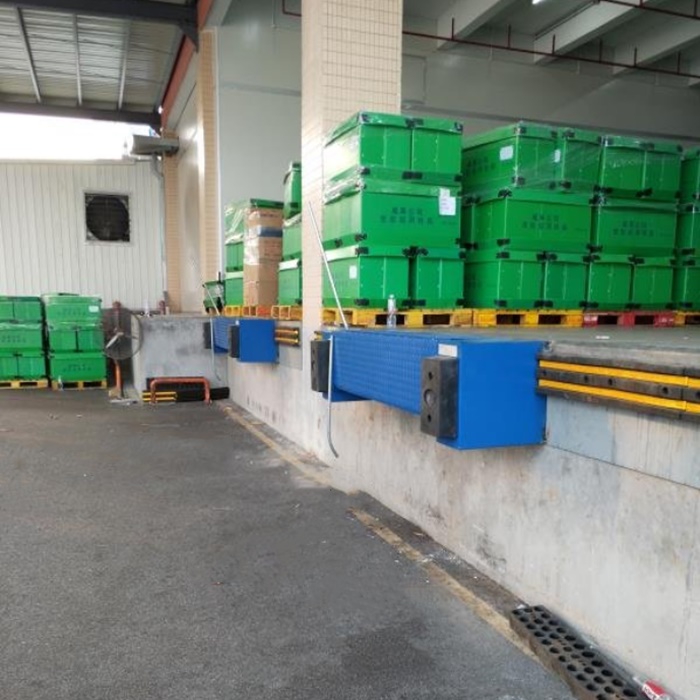

Project Cases：
 |
 |
