Mechanical manual dock leveler
3 year ago
Mechanical dock levelers are a kind manual operation dock leveler used in warehouse loading docks or loading bays. There is no motor or pump which need electricity or power supply to lift the dock leveler up when loading containers. Such mechanical dock levelers are driven by a spring lifting-up system under its platform. Through pulling hand chains, such spring system can be released to lift up the mechanical dock leveler body with spring force. When need retracting the dock leveler, worker can stand onto its platform and press it down with his body weight. If you are in below several situations, you can consider using mechanical docks for your warehouse loading docks:
1. Electricity supply in your areas is not available.
2. Electricity supply is available but not stable. There is frequent power cut-off. You need load goods during such time.
3. Your warehouse is explosion-proof areas, like chemical industry or pharmaceutical industry. You need avoid electricity on dock levelers, to be explosion-proof.
4. You want to avoid mainteance work for electric parts like motor or controller in hydraulic dock levelers.
5. You just want to be green for environmental purpose.

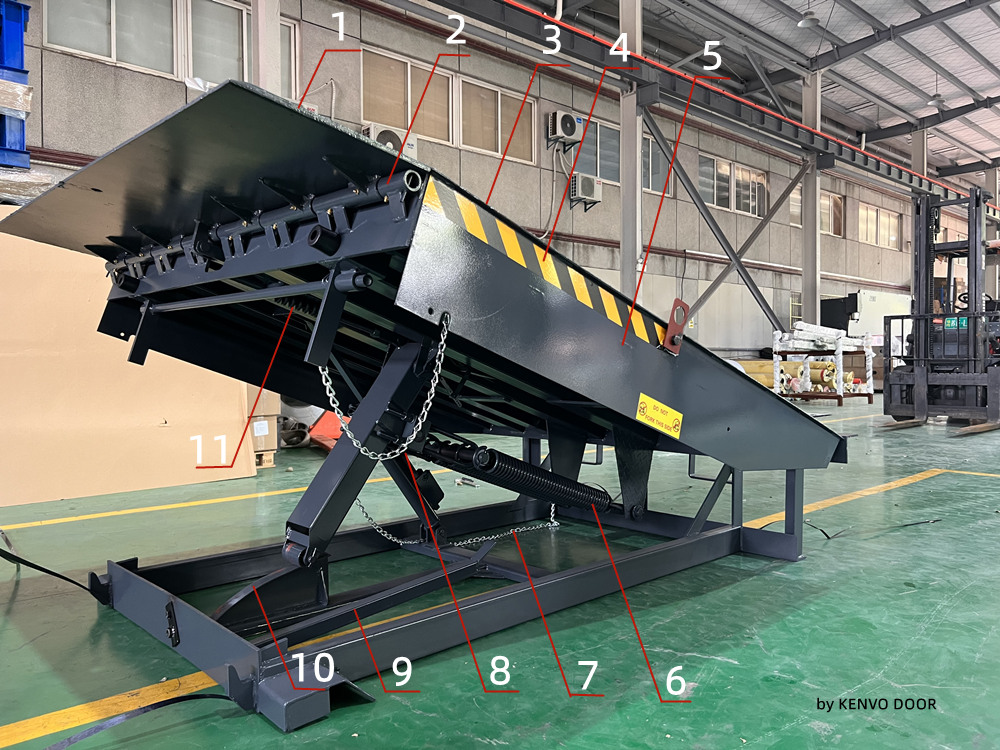

STURCTURE OF KENVO MECHANICAL DOCK LEVELER
1. Front lip; 2. Lip hinge; 3. Platform; 4.Side caution strip; 5. Side protection plate; 6. Spring lifting up system; 7. Back hand chain; 8. Front hand chain; 9. Maintenance support bar; 10. Guide device; 11. Front lit spring system.
| ITEM | DATA | REFERENCE PHOTOS |
| Size |
Standard sizes:
Customized sizes acoording to your need.
|
|
| Loading Capacity |
Dynamic load capacity: 6000KG; 8000KG, 10000KG,12000KG |
|

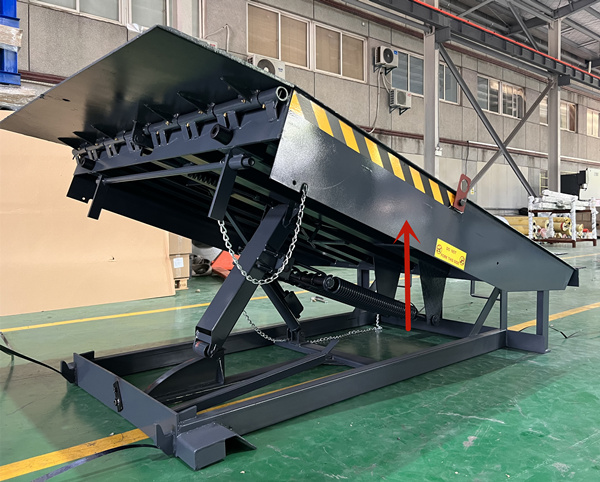

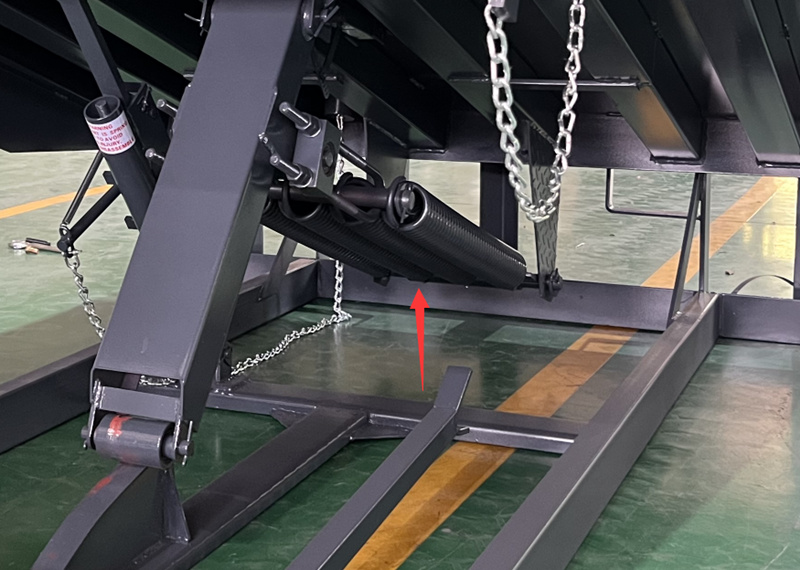

| Lifting up mechanism |
1. Power supply ：3-phase 380±10%V or 1-phase 220±10%V,50/60HZ
2. Output power：0.75KW-1.5KW; 3. Top China brand or Germany brand, or Italy brand; 4. Overheating self-protection function. 5. With electromagnetic valve for emergency stop function. |
|
|

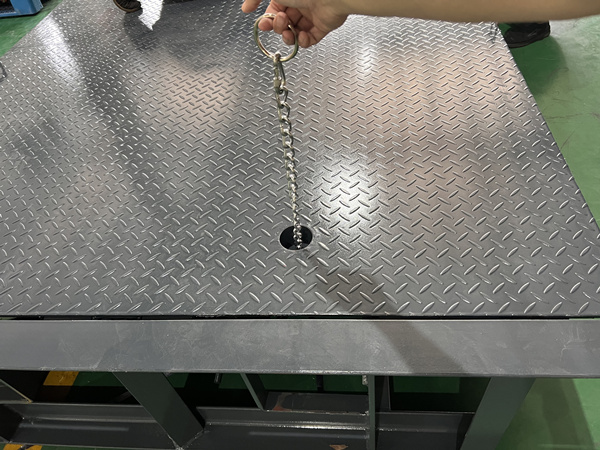

Operation device |
There are two hand chains on the mechanical dock leveler platform. 1. First chain: Located at the back of platform. Hoist it and the mechanical dock leveler will lift up completely. After loading job finished, lift this chain to withdraw the mechanical dock leveler. 2. Second chain: Located at the front of platform. Hoist it and the mechanical dock leveler will get downward for lower trucks.
|
|
| Platform |
1. Surface sheet:6mm-8mm thick according to loading capacity; 2. Whole-piece steel sheet, rather than welded joined sheet like competitors, with much higher strength and work life; 3. Underneath support: high-density steel tube or C-channel to support the surface sheet.; 4. Surface treatment: blasting and powder coating, with high rust proof performance |
|
| Front Lip |
1. Material: 12-16mm thick steel sheet; 2. Surface treatment: blasting and powder coating. Special embossed treatment, to make it antiskidding and improve the safety of forklifts passing. |
|
| Side Protection | Plain steel sheet at two sides, to protect human foot and avoid other items getting into dock leveler. |
|
| Dock Bumper |
1. One pair for each dock leveler;
2. Wear-proof high-strength rubber material; 3. To be fixed onto concrete with expansion bolts. |
|
| Painting color | Blue, Grey, Black, Green, or customized |

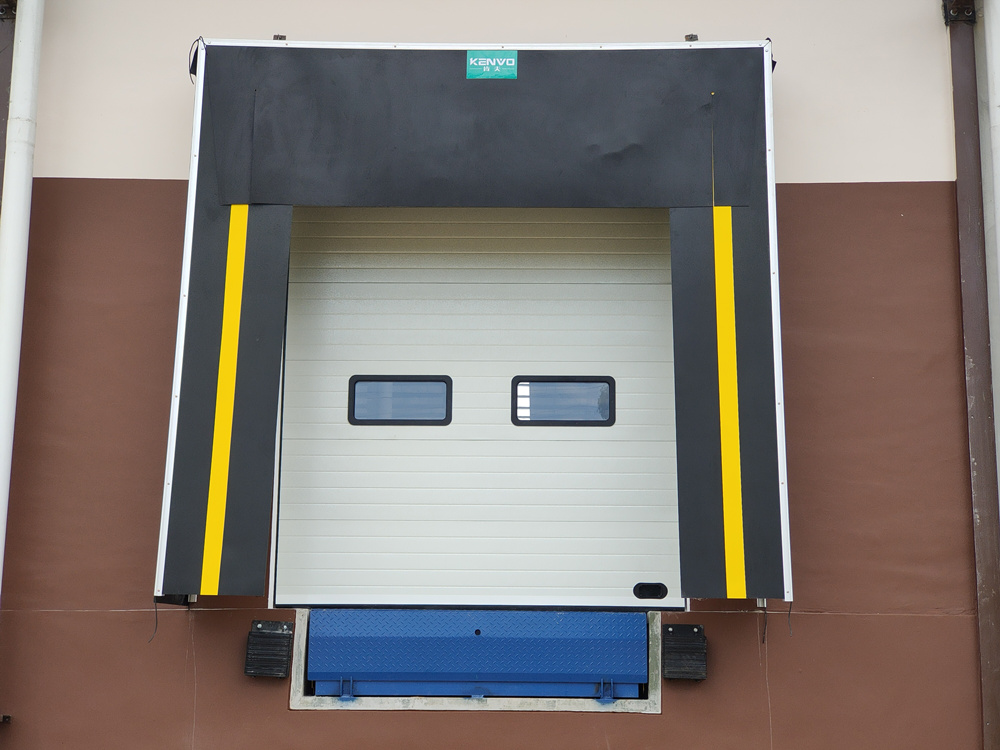

Project Cases：
