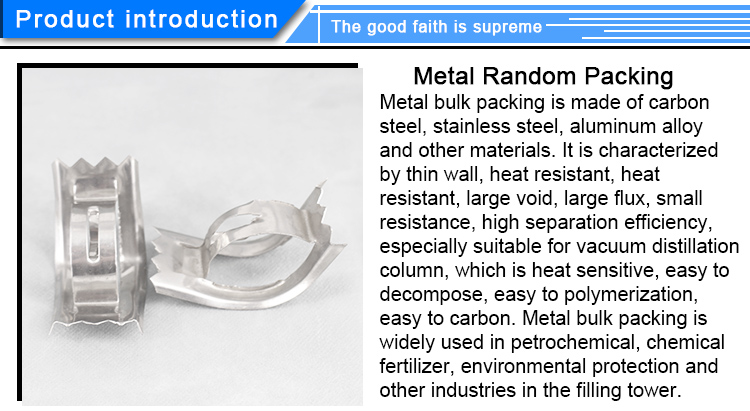

Stainless Steel metal intalox saddles random packing ring used in absorption tower
Technical Parameter:
| Model | Intalox Saddles | ||||||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | ||||||
| Size | (mm) | 15 | 25 | 40 | 50 | 60 | 70 |
| Thickness | (mm) | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 |
| Number | per m3 | 347000 | 135000 | 50200 | 15000 | 8400 | 4600 |
| Bulk density | kg/m3 | 282 | 222 | 147 | 133 | 109 | 114 |
| Surface area | m2/m3 | 305 | 241 | 161 | 104 | 85 | 62 |
| Free volume | % | 96.5 | 96.5 |
97.1 |
98.1 | 98.2 | 98.6 |
| Packing Factor | m-1 | 167 | 135 |
79 |
59 | 50 | 39 |
| Typical Application | Absorption, scrubbing and stripping services | ||||||
| Package | Jumbo bag, Carton box, wooden box | ||||||
| Warranty | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | ||||||
| b) Offer lifetime consultation on problems occurred | |||||||
Advantage
1.A versatile packing used in distillation, absorption and other operations.
2.Used in both deep vacuum and high pressure towers.
3.metal intalox saddles is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
