high crush strength 17%-19% inert alumina ceramic ball support media 1/2 inch porcelain balls

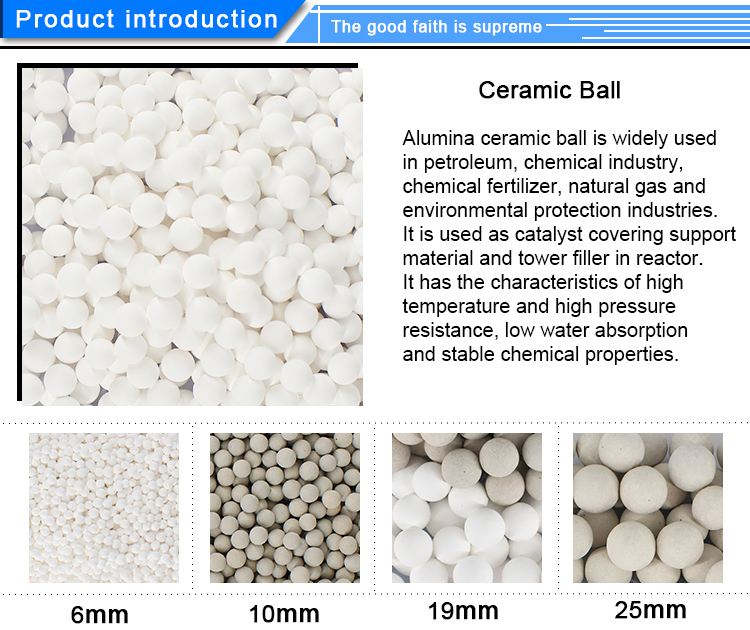

The 17 Support Media is equal to Denstone® 57 Support Media. They are the most widely used support media in the world because of their excellent consistence and reliability. Products to these specifications are manufactured from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strengthand resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst.
Technical Parameter:
| Typical Technical Composition | Min. % | Max. % | Usual% | |
| SiO2 | 61.5 | 77 | 74.5 | |
| Al2O3 | 18.5 | 26 | 19.9 | |
|
Fe2O3 |
****** |
1.6 | 0.9 | |
| TiO2 | ****** | 1.4 | 0.96 | |
| CaO | ****** | 0.65 | 0.42 | |
| MgO | ****** | 0.6 | 0.38 | |
| Na2O | ****** | 2 | 1.12 | |
| K2O |
****** |
3.5 | 3.28 | |
| Al2O3+SiO2 |
90 |
96 | 92.9 | |
| Physical properties | ||||
| Index |
Value |
Value | ||
| Leachable Iron |
≤ 0.1% |
****** |
||
| Apparent Porosity by Weight, dia. ≥ 10mm | ≤ 0.4% | ****** | ||
| Apparent Porosity by Weight, dia. = 6mm | ≤ 1.0% | ****** | ||
| Apparent Porosity by Weight, dia. = 3mm | ≤ 3.0% | ****** | ||
| Moh's Hardness Scale | >6.5 | ****** | ||
| Water Absorption | <1.0 wt.% | ****** | ||
| Acid Resistance | >99.8% | ****** | ||
| Thermal Conductivity | 0.9-1.0 w/m2.k | ****** | ||
| Thermal Expansion @ 500 | 0.20% | ****** | ||
| Specific Heat | 628-837j/kgq | ****** | ||
| Thermal Shock Stability, 1000 then water cooling | 10 times | ****** | ||
| Max. Operating Temperature | 1050°C | 1922 | ||
| Specific Density | 2300 kg/m3 | 144 lb/ft3 | ||
| Bulk Density (Packing Density) | 1350 kg/m3 | 84 lb/ft3 | ||
| Crush Strength | ||||
| Size | Crush Strength | |||
| Nominal Size | (lbs) | (kg) | (N/pc) | |
| mm | inch | min. | min. | min. |
| 3 | 1/8" | 77 | 35 | 343 |
| 6 | 1/4" | 176 | 80 | 784 |
| 10 | 3/8" | 234 | 106 | 1039 |
| 13 | 1/2" | 572 | 260 | 2548 |
| 16 | 5/8" | 726 | 330 | 3234 |
| 19 | 3/4" | 1672 | 760 | 7448 |
| 25 | 1" | 1870 | 850 | 8330 |
| 38 | 1-1/2" | 2090 | 950 | 9310 |
| 50 | 2" | 3476 | 1580 | 15484 |
| Typical Application |
a)Widely used support media in the world because of their excellent consistence and reliability. b)Manufactured from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst. |
|||
