Metal modified inner arc ring metallic random tower packing applied to distillation towers1
3 year ago

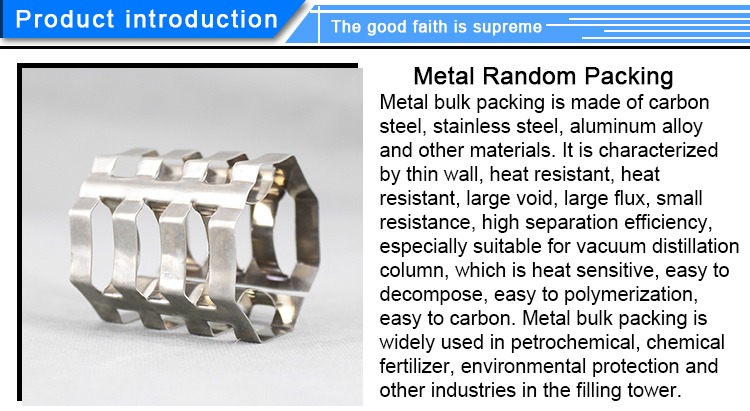

Metal modified inner arc ring metallic random tower packing applied to distillation towers
Technical Parameter:
| Model | inner arc ring | |||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | |||
| Size | Bulk density | Number per CBM | Surface area | Free volume |
| (mm) | kg/m3 | pcs | m2/m3 | % |
| 25 | 137 | 33500 | 207 | 97.5 |
| 38 | 102 | 7800 | 131 | 98 |
| Typical Application | Absorption, scrubbing and stripping services | |||
| Package | Jumbo bag, Carton box | |||
| Warranty | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | |||
| b) Offer lifetime consultation on problems occurred | ||||
Advantage
Chemxin inner arc ring is equivalent of Metal VSP.
During plant operation these rings create gas/liquid contact on easily wettable surfaces and promote the formation of droplets as the liquid cascades through the packed bed. This ensures good liquid mixing and consistent and uniform distribution. This open non-testing structure creates high efficiency and a very low pressure drop.
