Industrial tower packing 25mm 38mm 50mm ceramic intalox saddles ring1
3 year ago

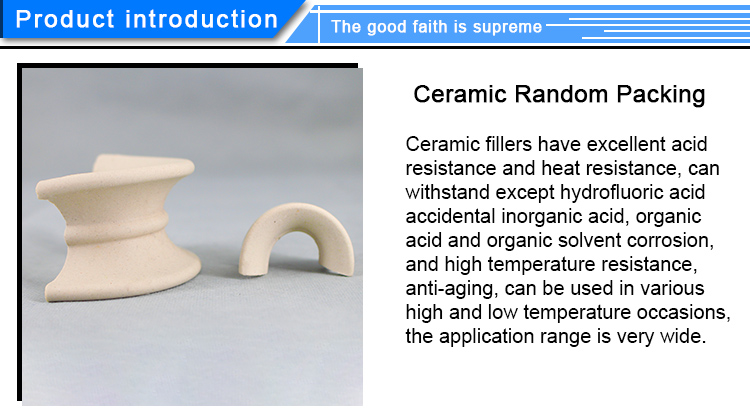

Industrial tower packing 25mm 38mm 50mm ceramic intalox saddles ring
| Model: | Intalox Saddles | ||||
| Shape: | Ring | ||||
| Color: | Light Grey | ||||
| Chemical composition | |||||
| SiO2 | Al2O3 | Fe2O3 | CaO | K2O+Na2O | |
| >70% | 23-30% | <1% | <1-2% | <2-4% | |
| Physical properties | |||||
| Index | Value | ||||
| Specific gravity(g/cm3) | 2.25-2.35 | ||||
| Water absorption(%) | <0.5 | ||||
| Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 | ||||
| Firing temperature((Degree C) | 1280-1320 | ||||
| Softening point((Degree C) | >1400 | ||||
| Density(kg/m3) | 2350 | ||||
| Technical data | |||||
| Diameter (inch) | Diameter (mm) | Approx. weight (kg/m3) |
Surface area (m2/m3) |
Free volume (%) | Packing factor (l/ft) |
| 1/2'' | 12 | 720 | 623 | 71.7 | 200 |
| 3/4'' | 19 | 688 | 334 | 73 | 130 |
| 1'' | 25 | 688 | 253 | 73 | 85 |
| 1.5'' | 38 | 640 | 164 | 75 | 50 |
| 2'' | 50 | 577 | 115 | 77.4 | 37 |
| 3'' | 76 | 623 | 92 | 75.5 | 24 |
Typical Application:
a)Have excellent resistance to acids except in the case of hydrofluoric acid.
b)Moisture absorption must less than half a percent.
c)Show good thermal shock resistance during repeated cycling between 20 an
