OPAQUE WHITE BOPET FILM FOR TAG AND GRAPHIC PRINTING
The film of CY11 is type of opaque white film, with matte or glossy surface , which owning excellent electrical insulating performance and compound machining performance,one or both sides corona treated for ink and adhesive .Can be used for screen printing, inkjet printing,solar backsheet ,steel labels etc.
Film can be supplied in Rolls , sheeting service available upon request.the surface is smooth ,should not be wrinkles,rent , particle ,bubble , pinhole and foreigh mateere ,film should be neat without damage.
The thickness should be determined by the parties , selection of nominal thickness : 125um,150μm,188μm,250μm,300μm,350μm
The width is determined by parties, otherwise recommend 1000mm.The width of the film(excluding roll )shall conform to the provisions in Table 1,while cutting the film.
Table 1 Width limits deviation
|
Width of roll Nominal film /mm |
MAX /mm |
|
200～300 |
±1.0 |
|
>300 |
±2.0 |
PROPERTIES
Item
Unit
Index
Thickness
µm
125
150
188
250
300
Deviation of thickness
%
±3
±3
±4
±5
±5
Tensile strength
MD
Mpa
≥175
≥170
≥160
≥150
≥140
TD
Elongation at break
MD
%
≥100
≥100
≥100
≥110
≥120
TD
Dimensional change/150℃,30min
Heat shrinkage
MD
%
≤1.5
≤1.5
≤1.5
≤1.5
≤1.5
TD
≤0.6
≤0.6
≤0.6
≤0.6
≤0.6
Wetting tension
corona
mN/m
≥52
non-corona
≥40
Light transmission
%
<6
<5
<5
<5
<5
Water vapor
g/(m2.24h)
≤5
≤4.5
≤3.0
≤2.0
≤1.8
Oxygen
cm3/ (m2.24h.0.1MPa)
≤10.0
≤9.0
≤8.0
≤6.0
≤5.5
Electrical strength
V/µm
≥75
≥75
≥66
≥60
≥65

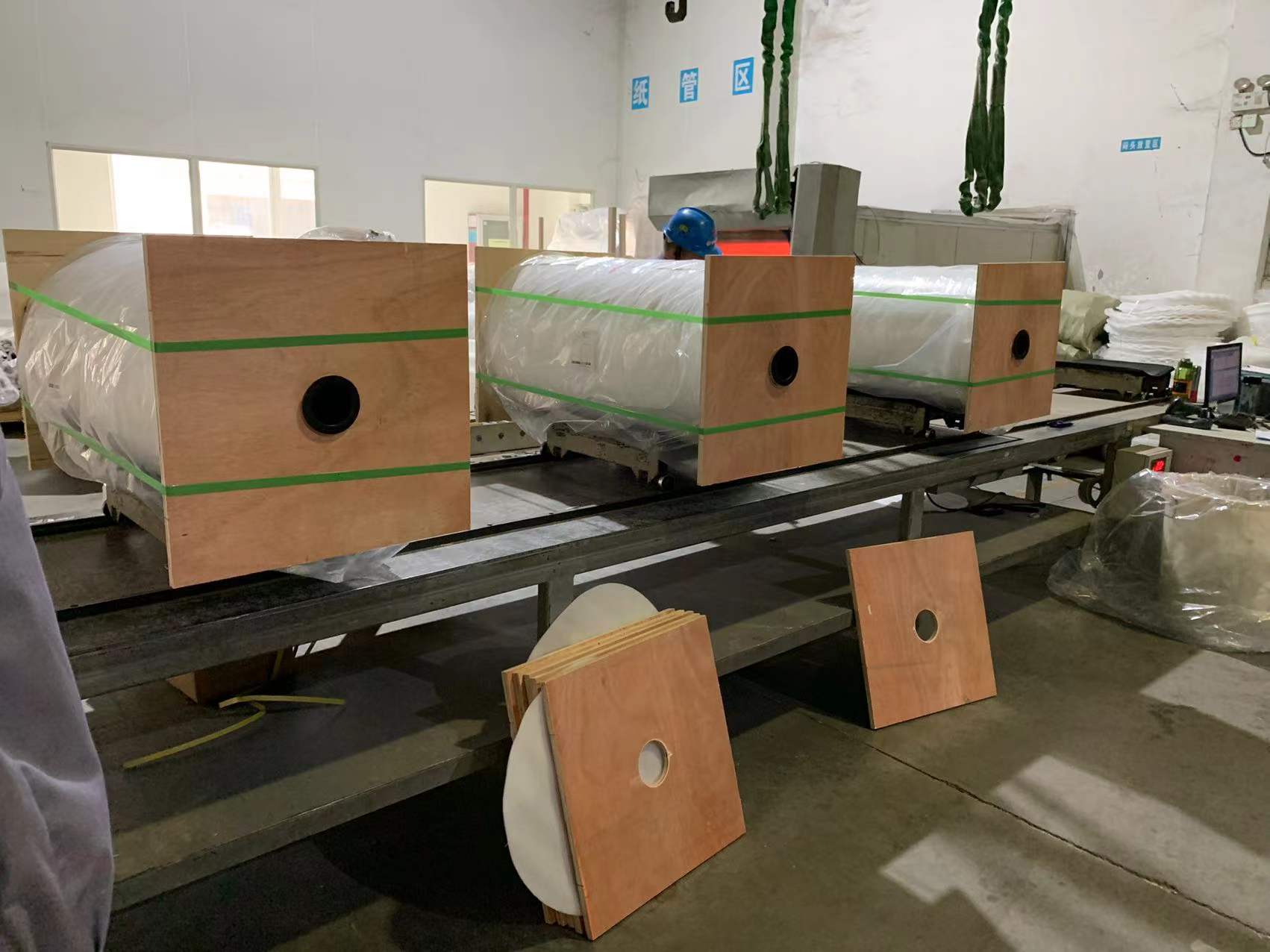

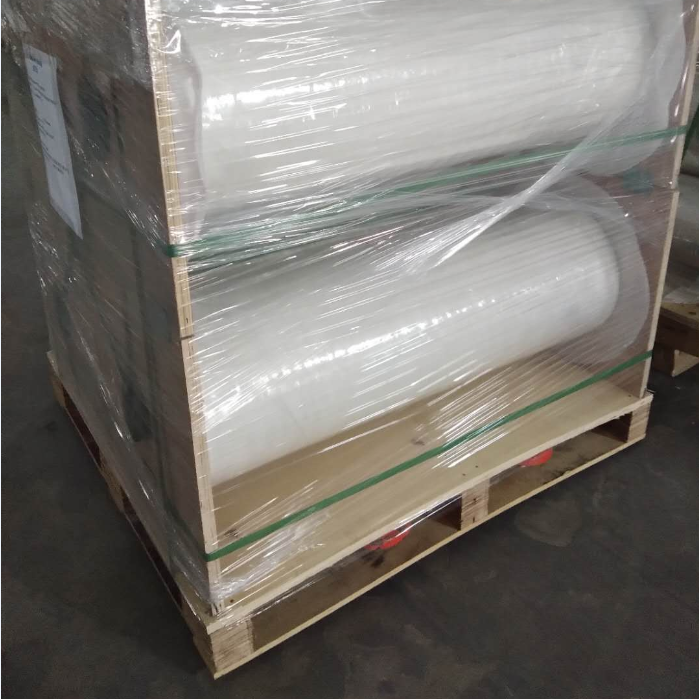

PACKING: PALLET
