Oil Press 120 Model

6 month ago

2 0 

Mianyang Xinyu Agricultural Machinery Manufacturing Co.

8 month

Product details

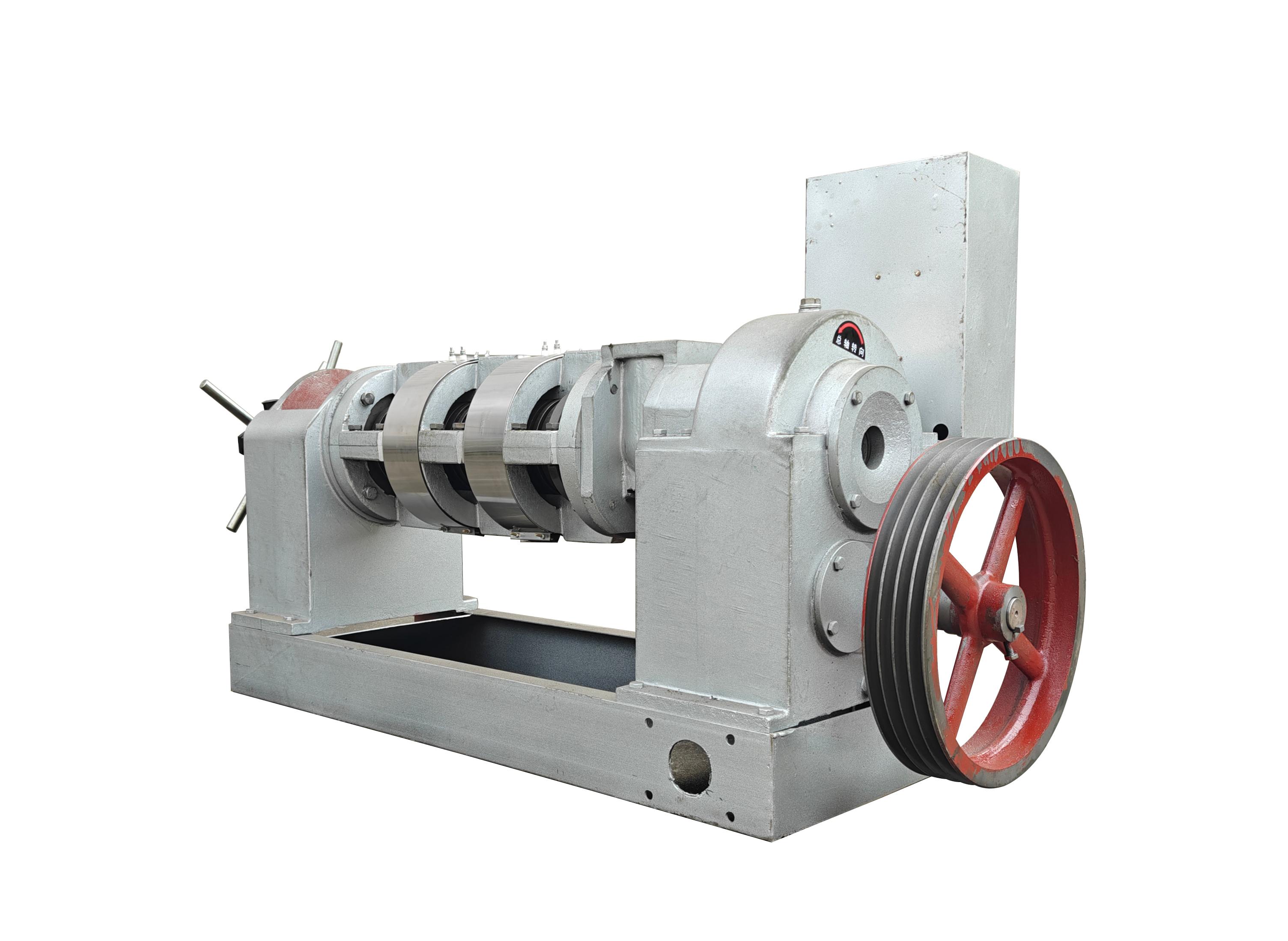

120 model Oil press machine for cottonseed

Cottonseed pressing process

1.Pre-treatment:

Cleaning: first of all, the cottonseed needs to be cleaned to remove the impurities in it, such as dust, stones, cotton shorts and so on.

Shelling: The cleaned cottonseed needs to be shelled to separate the shell from the kernel. This step helps to improve the oil extraction efficiency and oil yield.

Separation of shells and kernels: After shelling, the shells and kernels are further separated to ensure that it is mainly the kernels that are processed during oil extraction.

Steaming and stir-frying: The cottonseed kernel is subjected to steaming and stir-frying treatment to soften it and adjust the moisture content to the appropriate range (generally 4% to 6%), so as to improve the oil yield and oil quality.

2.Pressing:

The pretreated cottonseed kernels are fed into the oil press for pressing. The oil press squeezes the oil out of the cottonseed kernel through the action of mechanical force.

During the pressing process, the parameters of the oil press can be adjusted as needed, such as temperature, pressure, etc., to obtain the best oil yield.

3.Filtering and refining:

The pressed cottonseed oil usually contains impurities and solid particles, which need to be filtered. Filtration removes large particles of impurities from the oil and improves the purity of cottonseed oil.

Refining treatment further removes harmful substances and off-flavors from the oil, improving the quality and safety of cottonseed oil. The refining process may include steps such as dephosphorization, deacidification, decolorization, and deodorization.

oil press machine，cooking oil pressing machine，oil press machine price，groundnut oil press machine price

Technical Parameters

1. Screw speed: 32 -38r/min

2. Power: Electric motor Y160M-4 (11kw 1460r/min)

3. Dimensions (mm): Length x Width x Height = 1850x570x1185 (excluding motor base)

4. Single machine weight: 650kg

5. Performance index: refers to the performance index in the following table that can be achieved by using hot pressing method (pressing once) for continuous production of medium-quality raw materials with reasonable processes such as cleaning, shelling (separation), crushing (rolling), steaming and frying, and normal operation.

Name	24-hour processing capacity t/24h	1 hour processing capacity Kg/h (approximate value)	Residual oil rate of dry cake (%)
Rapeseed	＞6t	250 kg	＜8
Cotton seeds	＞5.5t	200~230 kg	<7.5
Soybean	＞5.5t	230 kg	＜7
Peanut kernels	＞6t	230 kg	＜8

Note: Due to different pressing habits and raw materials in different regions, the actual results may differ from the parameters in the above table. This is normal. For example, for the raw pressing method (cold pressing), the amount of milk will be reduced by half for each additional pressing.
