Cable Copper Resistance testing

Flat TPS cable is electrical cable that is widely used in residential and commercial buildings for electrical wire. It is also known as flat twin and earth cable, and it is designed to carry electricity from the main switchboard to various electrical outlets and devices in a building wire. In this guide, we will discuss everything you need to know about flat TPS cable, including its features, applications, advantages, and installation process. commonly used in Australia and New Zealand for domestic and commercial wiring. It stands for "Thermoplastic-sheathed cable" and consists of two or more insulated conductors wrapped in a thermoplastic sheath. TPS cable is known for its durability, flexibility, and ease of installation. It is commonly used for lighting wire, power sockets, and other electrical cable applications.

Flat TPS Cable 2 & 3 Core Copper Conductors 450/750V

V-90 PVC Insulated 3V-90 PVC sheathed to AS/NZS 5000.2, 90°C

CABLE STRUCTURE:

STANDARD:  AS/NZS 5000.2

VOLTAGE:   450/750V

CONDUCTOR : Copper 1mm2  to 16mm2

INSULATION PVC:  V-90, Red, Black & Green/Yellow

SHEATH PVC:  3V-90,White

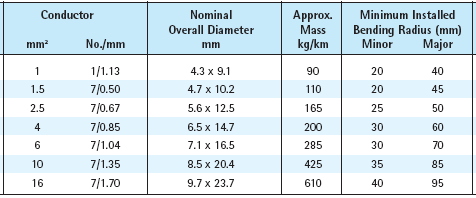

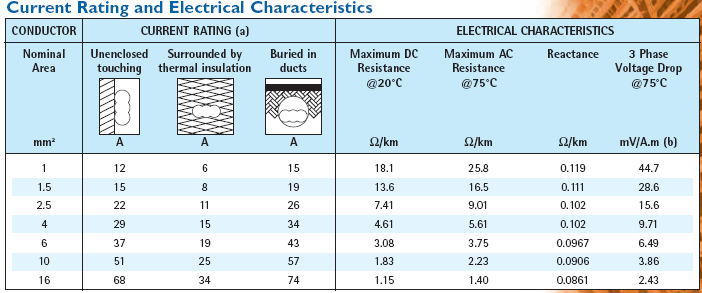

Cable Specifications
