BTA41 40A Triac litz wire

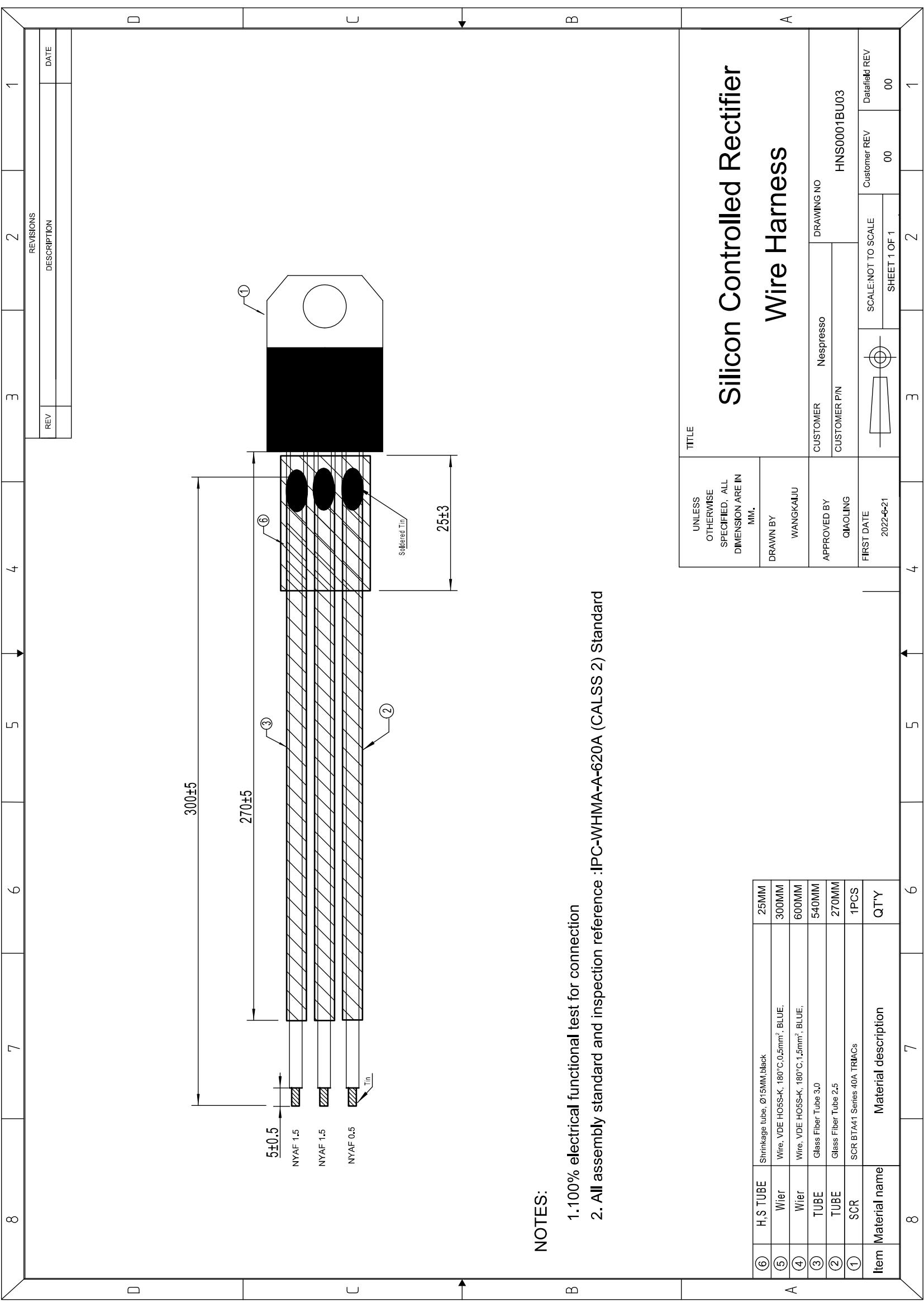

YZPST-BTA41 litz wire

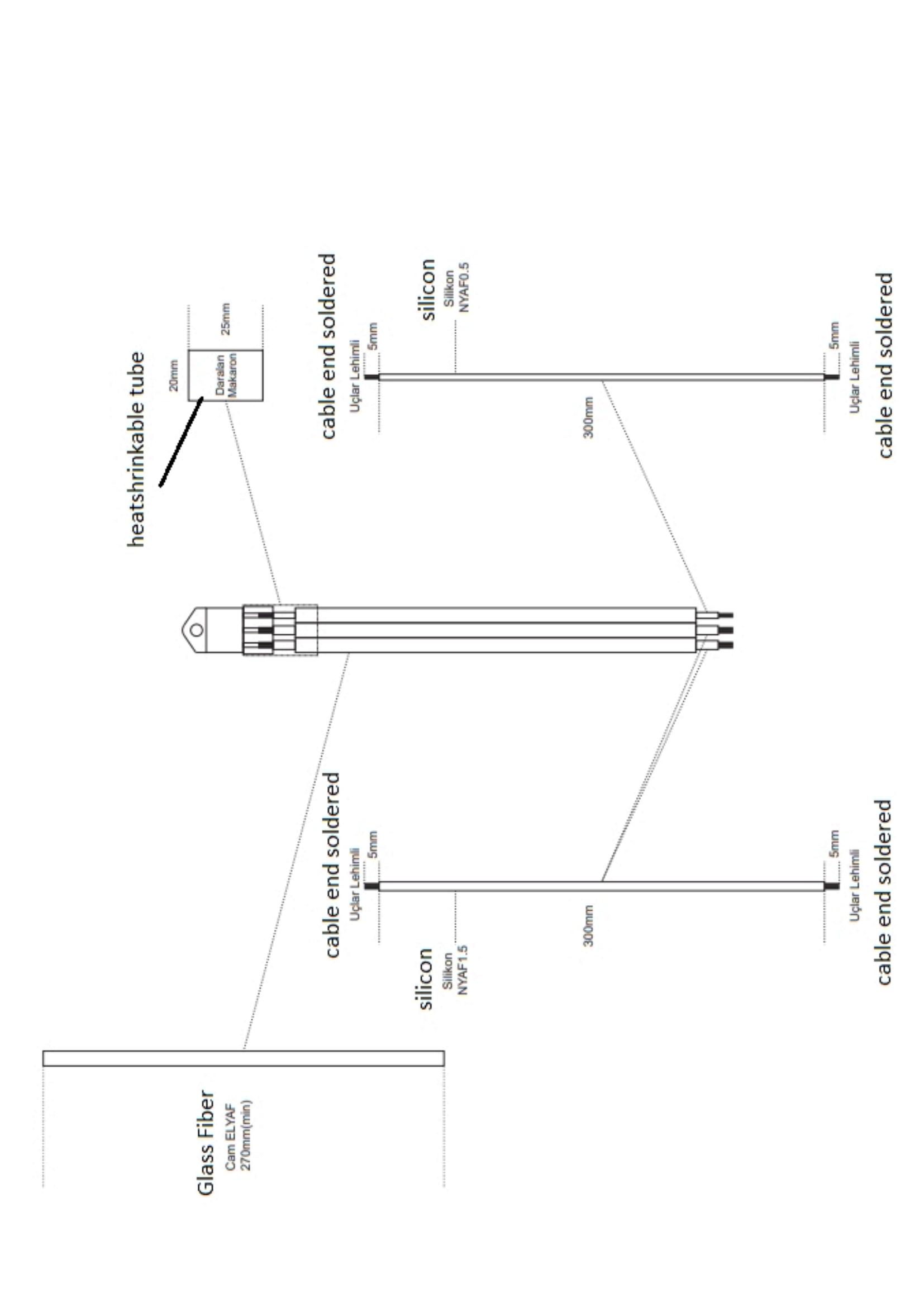

BTA41 Triac litz wire

BTA41 Series 40A TRIACs

DESCRIPTION:
The BTA41 triac series is suitable to fit all models of control Found in applications such as motor control ,industrial and domestic lighting ,heating and static switching , motor speed controllers,... Thanks to their clip assembly technique, theyprovide a superior perfbnnance in surge currenthandling capabilities By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at2500VRMS) complying with UL standards

MAIN FEATURES

Symbol	Value	Unit
It(rms)	40	A
VdRM Vrrm	600/800	V
Vtm	1.55	V

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Value	Unit
Storage junction temperature range	Tstg	-190	°C
Operating junction temperature range	Tj	-165	°C
Repetitive peak ofE-state voltage (T =25°C)	Vdrm	600	V
Repetitive peak reverse voltage (T =25°C)	Vrrm	600	V
RMS on-state current	It(rms)	40	A
Non repetitive surge peak on-state current (foil cycle, F=50Hz)	Itsm	400	A
I2t value for fusing (tp=10ms)	Pt	880	A2S
Critical rate of rise of on-state current	dl/dt	50	A/gS
(I =2xIgt)	dl/dt	50	A/gS
Peak gate current	Igm	8	A
Average gate power dissipation	Pg（av）	1	W

3 Quadrants

Symbol	Test Condition	Quadrant		Value	Unit
Igt	V =12V R =33Q	III ni	MAX.	50	mA
VGT		III ni	MAX.	1.3	V
Vgd	VD=VDRMTj=125°C	hi ni	MIN.	0.2	V
	R=3.3KQ
II	Ig=1.2Igt	hi ni	MAX.	120	mA
Ih	lT=100mA		MAX.	60	mA
dV/dt	Vd=2/3Vdrm Gate Open		MIN.	1000	V/gs
	Tj=125°C

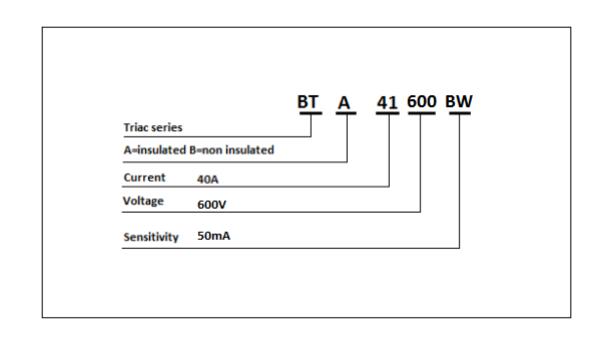

Ordering Information Scheme

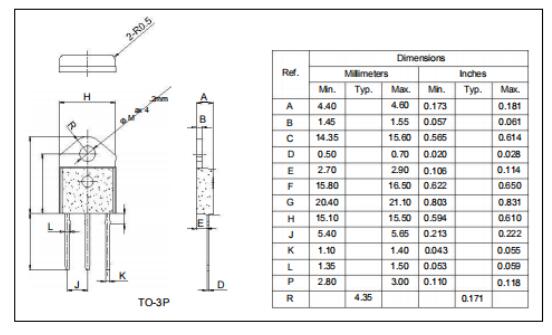

T0-3P Package Mechanical Data
