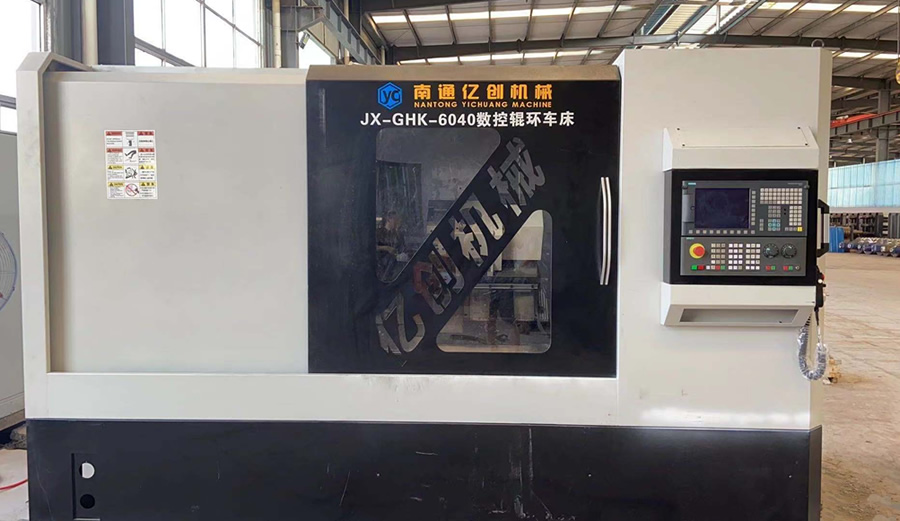

JX-GHK60 Roll ring grinder machine
6 month ago
The machine tool for the numerical control roller ring lathe, the lathe bed, spindle box, tool post, main motor, retarding mechanism, automatic chip removal, guide rail protective cover, such as parts, mainly used for the largest workpiece diameter of 400 mm, the largest workpiece length is 400 mm, maximum weight 800 kg of workpiece infinite cold hard cast iron ball mill, high speed steel and tungsten carbide roll ring finishing. Finish turning the outer circle, end face and all kinds of pass surface of the roller ring to achieve the effect of turning instead of grinding.
| Maximum rotation of bed | Φ500mm |
| Maximum rotation diameter of saddle | Φ400mm |
| Maximum cutting diameter | Φ400mm |
| Maximum cutting length | 400mm |
| X-stroke | 260mm |
| Z-stroke | 450mm |
| X to fast moving speed | 10000mm/min |
| Z Fast moving speed | 10000mm/min |
| X direction minimum feed | 0.001mm |
| Z-direction minimum feed | 0.001mm |
| Spindle specification | A2-11 |
| Maximum spindle speed | 1500rpm |
| Spindle aperture | ф 100mm |
| CNC electric tool holder | 4-station |
| Tool mounting dimension | 40x40mm |
| Spindle motor power | 22Kw |
| X-axis servo motor power | 2.29Kw |
| Z Motor power | 2.29Kw |
| Cooling tank capacity | 220L |
| Cooling pump motor power | 650w |
| Chip removal machine power | 400w |
| Machine outline dimension | 3800*1950*1600mm |
| Machine weight | 4000Kg |
