Capacitor YZPST-MPC475K1000D01

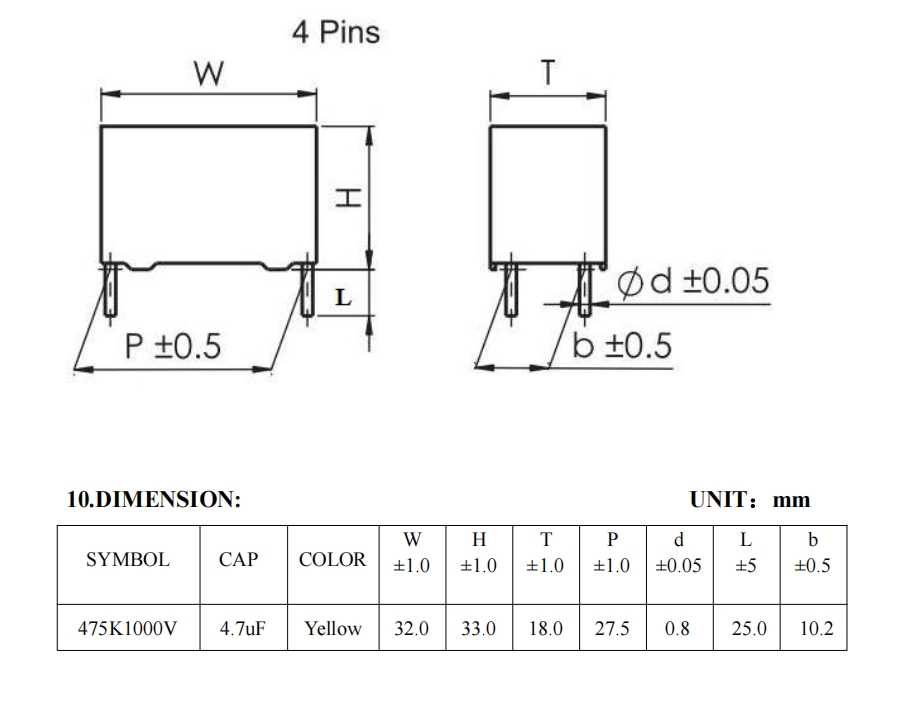

SPECIFIC REFERENCE DATA

DESCRIPTION		VALUE		TEST CONDITIONS
Capacit ance	Rated Capacitance	4.7uF		Measuring frequency: 1kHz±10% Measuring voltage: 1Vrms.max.
	Capacitance olerance	K=±10%
Voltage	Rated voltage	1000Vdc		1.6*UR Unit:VDC (5 S at 20℃)
	Voltage proof
Dissipation factor (tangent of loss)		DF≤0.2% 1KHz 1V DF≤0.2% 10KHz 1V		Measuring frequency:1kHz±10% Measuring voltage: 1Vrms.max.
Insulation resistance		C≤0.33uF C＞0.33uF	IR≥30000MΩ IR*C≥5000S	measured at rated voltage or less than 100VDC 1 minute at 20℃ and RH≤65%
（ESR）		<159mΩ <159mΩ <159mΩ		@ 1KHZ 25℃ @40KHZ 25℃ @ 100KHZ 25℃
（Irms）		8A		@ 10KHZ 70℃
（Ipeak）		600A
（dv/dt）		>45v/us		@70℃
（Ut-t）		1200VDC		Unit:VDC ( 10 S at 20℃)
（Ut-c）		3000VDC		Unit:VAC (60S at 20℃)
		100000H		@Un T=70℃
		≤100fit
		<2000M
Climatic catalogue		40/85/21
Reference standard		IEC61071 GB/T17702

FEATURE:

Non-inductive construction and self-healing

Withstanding over-voltage stressing.

Super physical and environmental characteristics. 4.APPLICATION:

IGBT Snubber DC-LINK

Widely used in power electronic devices in series/parallel resonant circuit;

Widely used in power electronic equipment when the peak voltage ,peak current Absorption protection;

MARKING:

Marking on individual capacitor includes:

Rated capacitance: such as 475

Rated voltage: such as 1000V

Capacitance tolerance: such as K

Manufacturer's symbol: JIMSON (JS).

Marking on package

Each package unit carry the type, rating, quantity and date of manufacture, location of manufacture, and manufacturer's name

EXPLANATION OF IMPORTANT TERMINOLOGY:

Rated capacitance

The rated capacitance value in Pico farads is expressed by a three digit number, the first two digits are significant figures and the last digit specifies the number of zero to follow.

Example: 224 indicated 220,000pF or 0.22uF

225 indicated 2,200,000pF or 2.2Uf

CAPACITANCE UNIT:

1F= 1,000mF= 1,000,000uF= 1,000,000,000nF= 1,000,000,000,000Pf

Capacitance tolerance

The tolerance is the permissible actual capacitance relative to the rated capacitance and it is defined in percent.

Symbol of tolerance shown:

F=±1% G=±2% J=±5% K=±10% M=±20% N=±30%
