X45G Fanless Industrial PC

3 year ago
110 0
Product details

This industrial mini adopted aluminum alloy new design sturdy chassis,fully enclosed dustproof,corrosion resistance, high and low temperature resistance. Basice of fanless design,this industrial computer was silence,and running 7*24H. This dual lan mini pc with Intel Core I5 I7 processor, low power consumption, stable performance.Lastly, This mini pc with serial pc widely used in industrial instrument CNC machine tools, self-service terminal equipment, medical equipment, access control equipment, acquisition card module equipment, security equipment, etc.

Product Details

CPU: Intel Core i5 4200U/7267U/8250U/8265U/8269U/8365U/10210U

        Intel Core i7 7560U/7567U/7600U/8550U/10510U/10610U/8269U

GPU: Intel UHD Graphics: i5-8365U/i5-8265U/i5-10210U/i7-10510U/i7-10610U; Intel HD Graphics 4400: i5-4200U; Intel Iris Plus Graphics 650: i5-7267U/i7-7567U; Intel UHD Graphics 620:i5-8250U/i7-8550U; Intel Iris Plus Graphics 655: i5-8269U/i5-8269U; Intel Iris Plus Graphics 640: i7-7560U; Intel HD Graphics 620: i7-7600U

Dual display: VGA + HDMI,Support for Synchronous or Asynchronous Display

Memory: 2GB/4GB/8GB/16G DDR4 2133/2400MHz 1.35V, 2*260 pins SO-DIMM slot, Maximum capacity:32G

Hard Disk: SSD: 1* M.2 NVMe 2280 SSD+1* full height mSATA SSD, HDD:1* 2.5" SSD/HDD Connect by SATA power and data cable.

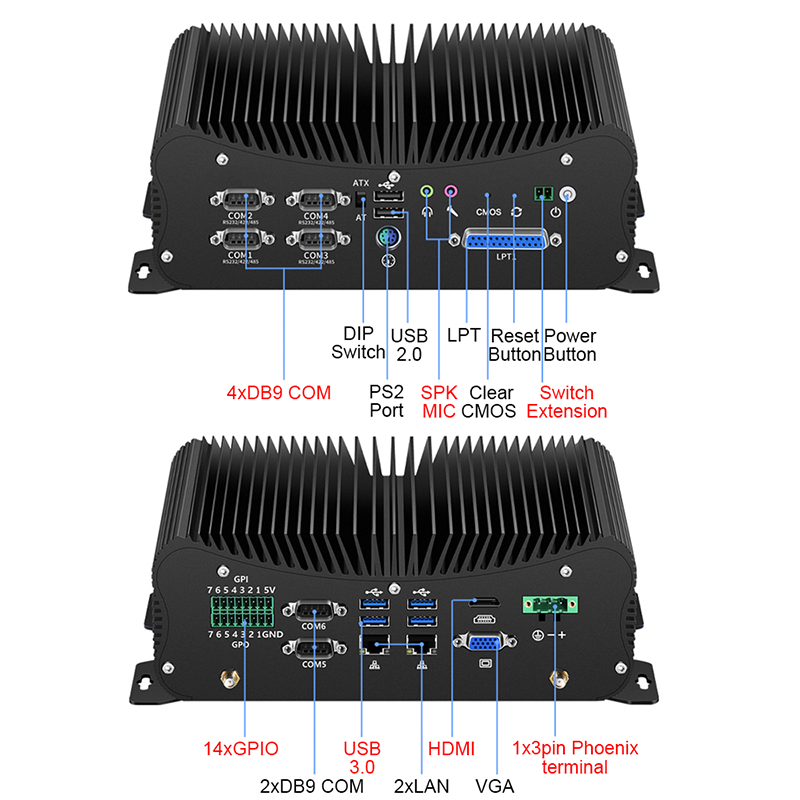

Port: 4 x USB3.0, 2 x USB2.0, 6 x DB9 COM (2 x RS232, 4 x RS232/422/485), 1 x LPT, 1 x HDMI, 1 x VGA, 1 x PS2(Keyboard and mouse 2 in 1), 14 x GPIO (7 x Input,7 x Output), 1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button,1 x 3 pins Phoenix power switch (supporting 9-36v power input), 1 x MIC, 1 x SPK, 1 x DIP switch (support ATX/AT power on mode selection), 2 x antenna interface (For WIFI / 3G / 4G)


LAN: 2 x GbE RJ45 Intel i211/i210

Extension: 1*half height Mini-PCIe for WIFI/Bluetooth, 1* full height Mini-PCIe for 3G/4G/WIFI/Bluetooth, 1*SIM card slot, 1* extension I/O,support LPC/USB/PCIE


Power Requirement: Power Input Vol: 9-36V

Working Environment: Operating Temperature -20℃ to +60℃, Storage Temperature -30℃ to +70℃, Relative Humidity 10%~90% @30℃ (non-condensing)
