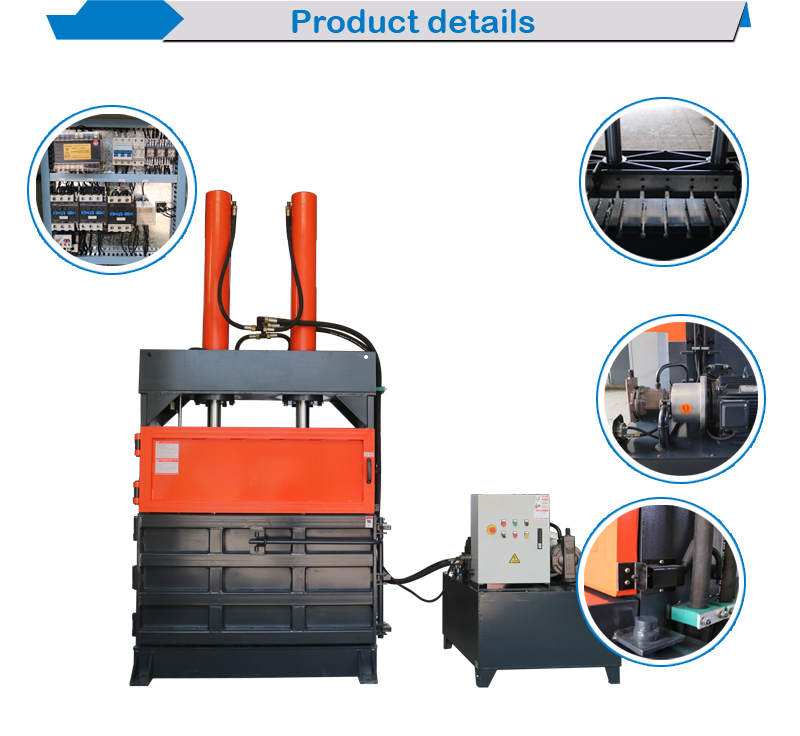

Product details

This model baler machine was used to press Straw and high pressure o make bale weight heavier ;

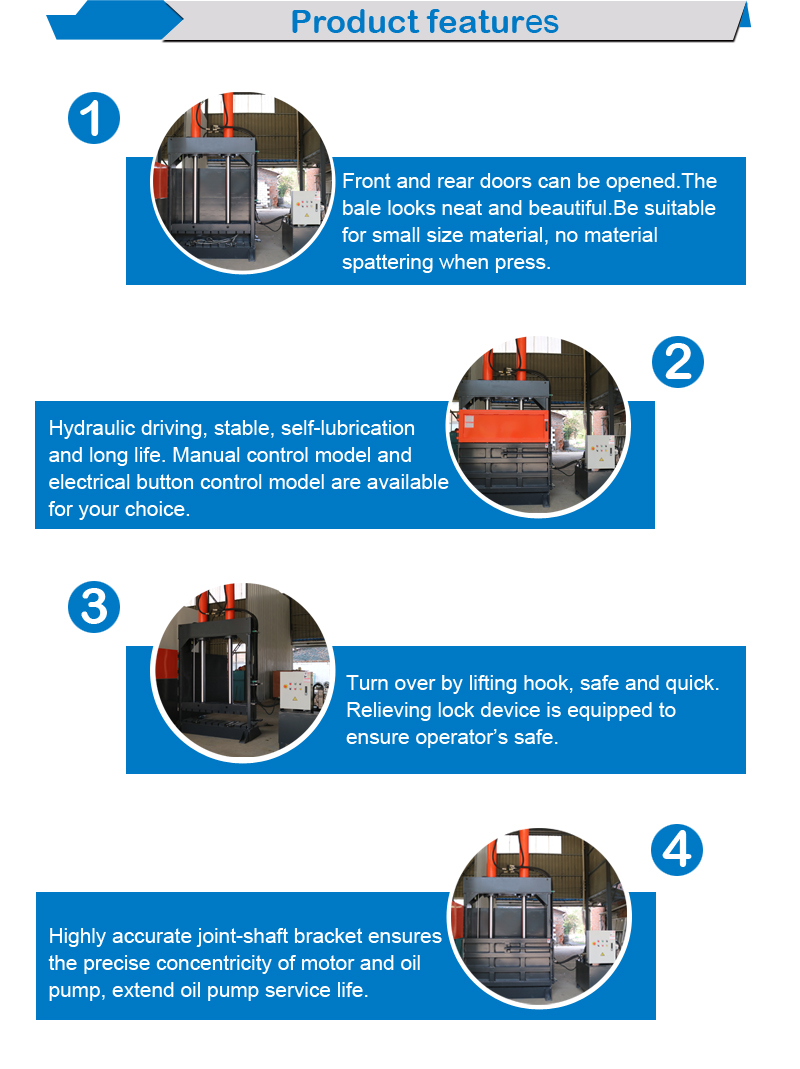

This model baler machine  can be open the door front and back together;

Electric box control to make higher automation;

Automatic control model ,more efficiency;

Alarming light hint under working state;

Instant stopping button with separate installation is obvious to find and safer while operating;

Peculiar combination of motor and pump with direct-crossed connection makes sure 100  percent concentric, replacing the common coupling connection and extending pump’s using life;

Mainly used to packing soft materials,such as cloth,textile,rice hull etc.

Mainly used in restaurant ,supermarket,recycle bin,cloth factory etc.


Model VED40-11070 VED50-11075 VED60-12080 VED80-12080 VED100-12080
Force 40 ton (20*2) 50 ton (25*2) 60 ton (30*2) 80 ton (40*2) 100 ton (50*2)
Motor 7.5KW 11KW 11KW 15KW 22 KW
Voltage Customized Customized Customized Customized Customized
Bale size (H is adjustable) 1100*700*500-950mm 1100*750*500-950mm 1200*800*500-950 1200*800*500-950 1200*800*500-950
Bale weight 200-260KG(waste paper) 220-300KG(waste paper) 300-400KG(waste paper) 400-500KG(waste paper) 450-550KG(waste paper)
Bale line 5 ropes 5 ropes 4 ropes 4 ropes 4 ropes
Machine weight 1500KG 1900KG 2100KG 2300KG 2900KG
Machine overall dimension 1580*1000*3140mm 1580*1000*3140mm 1680*1160*3280mm 1700*1180*3300mm 1800*1240*3460mm
Machine colour Customized Customized Customized Customized Customized


VED100-12080-DD-1VED100-12080-DD-2VED100-12080-DD-3
