Hay straw bagging baling machine
5 year ago
This machine is make hay or straw to be a block and bagging
Keeping feeding , machine will out the bag automatic,worker just need waitting bale out.
Machine can bagging package autonatic,high efficiency;

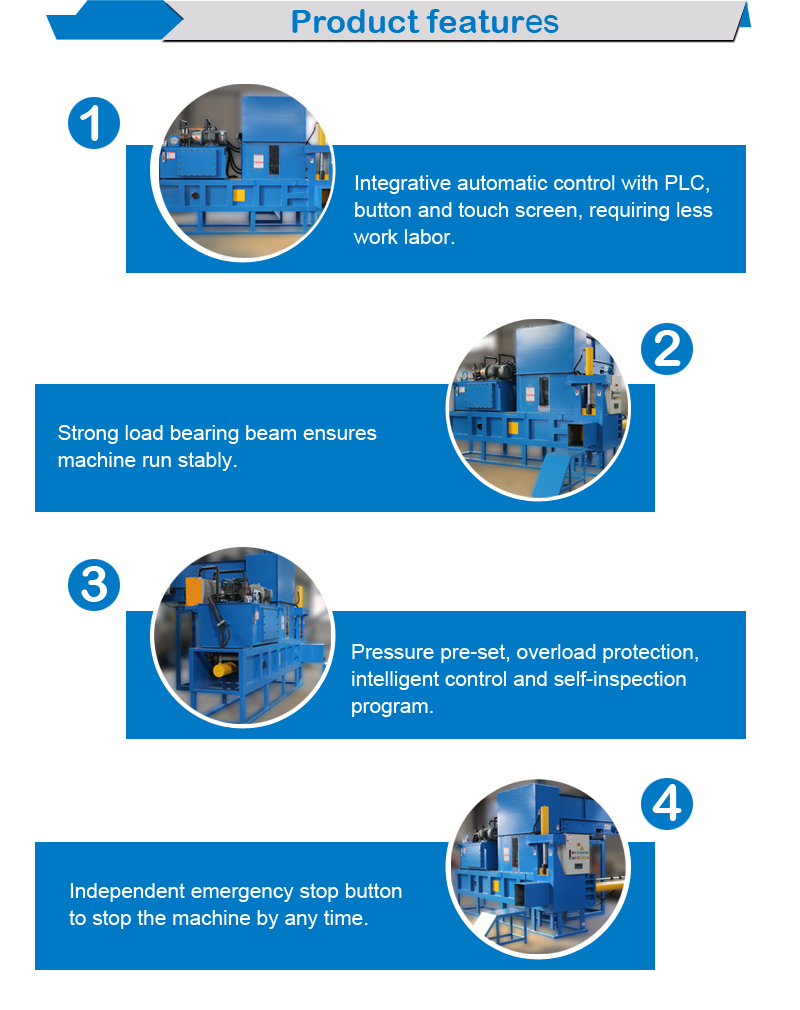

Automatic control system,keep machine feeding , machine will work automatic;
Alarming light hint under working state;
Instant stopping button with separate installation is obvious to find and safer while operating;
Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentric, replacing the common coupling connection and extending pump’s using life;
Mainly used to packing cloth ,textile ,hay,Highland barley,wood shaving,Corn bone,etc.

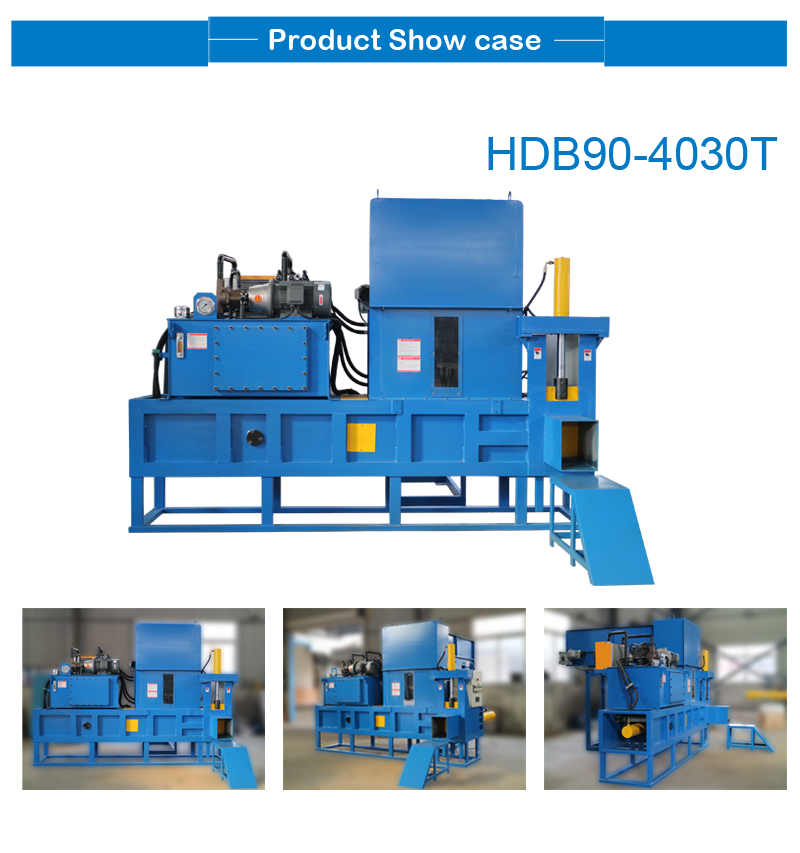

| Model | HDB50-3525 | HDB90-4030 | HDB140-4030 | HDB180-4331 | HDB220-4331 | HDB270-4331 |
| Force | 20+30 ton | 40+50 ton | 60+80 ton | 80+100 ton | 100+120 ton | 120+150 ton |
| Motor | 11KW | 18.5KW | 22KW | 22KW | 30KW | 37KG |
| Voltage | Customized | Customized | Customized | Customized | Customized | Customized |
| Capacity | 55-60 bag | 55-60 bag | 55-60 bag | 55-60 bag | 55-60 bag | 55-60 bag |
| Bale size (H is adjustable) | 350*250*600mm | 430*310*600mm | 430*310*600mm | 430*310*750mm | 430*310*750mm | 430*310*600mm |
| Bale weight | ||||||
| Bale line | bagging | bagging | bagging | bagging | bagging | bagging |
| Machine weight | 3500KG | 4000KG | 4500KG | 5000KG | 5500KG | 6000KG |
| Machine overall dimension | 3300*2660*2100mm | 3400*2660*2100mm | 3500*2700*2100mm | 3800*3250*2100mm | 3900*3300*2100mm | 3700*2700*2100mm |
| Machine colour | Customized | Customized | Customized | Customized | Customized | Customized |
